| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 375 J |
| Response time | 6 ms |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Power protection features | Over voltage |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| AC outlets quantity | 9 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-A |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Replacement battery cartridge | RBC43 |
| Form factor | Rackmount |
| Product colour | Black, Metallic |
| Rack capacity | 2U |
| Cable length | 2 m |
| Display type | LCD |
| Certification | CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability certificates | Green Premium, RoHS |
| Width | 432 mm |
| Depth | 683 mm |
| Height | 86 mm |
| Weight | 42.3 kg |
| Package width | 600 mm |
| Package depth | 980 mm |
| Package height | 254 mm |
| Package weight | 49.7 kg |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Software CD | Yes |
| Products per pallet | 8 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Description |

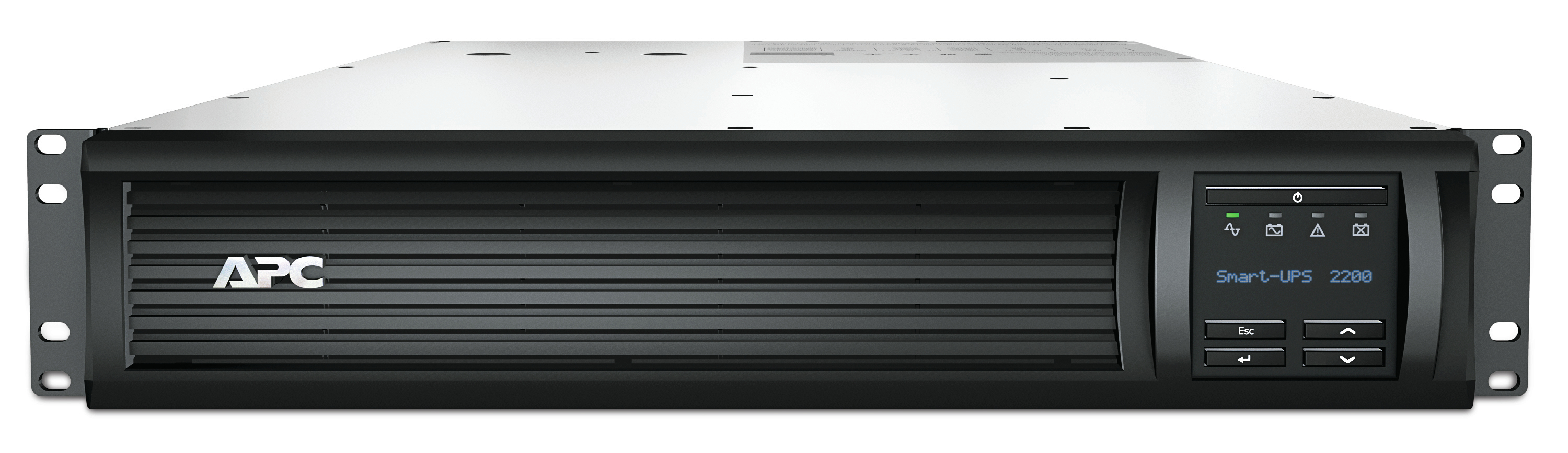

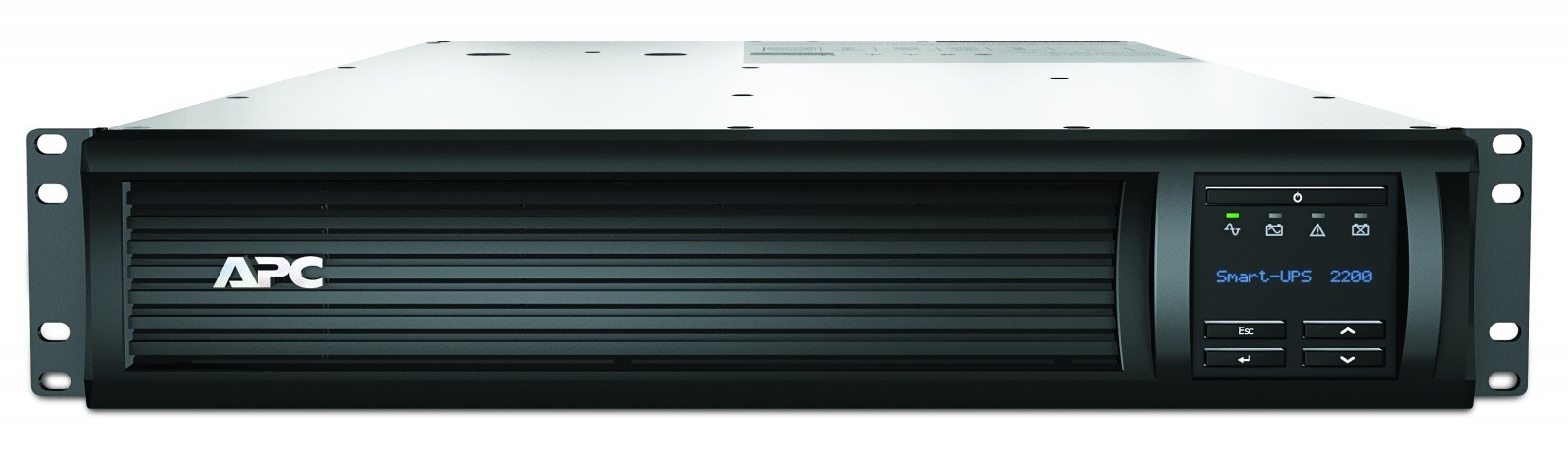

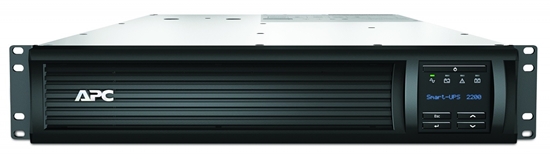

| APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlets quantity: 9 AC outlet(s), USB port type: USB Type-A, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Metallic, Rack capacity: 2U. Width: 432 mm, Depth: 683 mm, Height: 86 mm |
