Manufacturer: EATON

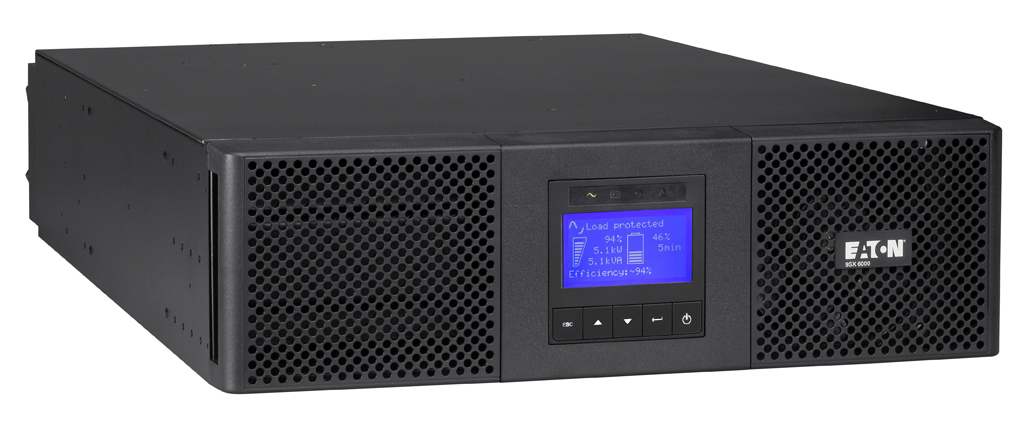

Eaton 9SX UPS, 6000 VA, 5400 W, Input: Hardwired, Outputs: (8) C13, (2) C19, Hardwired, Rack/tower, 3U

€3829.82 incl tax

SKU: ST00653789

Manufacturer part number: 9SX6KiRT

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	1	€3829.82 incl tax
PL	9 - 12 days	1	€4659.81 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7

UPS voltage regulators	6000
Tips	Double Conversion Online
Socket (USB)	yes
Tips	Online
Socket (IEC320)	yes
Socket (RS232)	yes

Apparent power	6 kVA
Active power	5400 (Watt)
UPS Architecture	on-line double conversion
Number of phases input	1 (230V)
Voltage	230 (Volt)
Chassis type	Tower
Filters / protection	Overdischarge
Output power ports	1 x Hard Wire Ph+N+E
I/O connectors	1 x USB 2.0
I/O connectors	1 x RS-232 (COM)
Accessories included	1 kabel USB (1,8 m), 1 kabel szeregowy (1,8 m), Skrócona instrukcja obsługi, Wskazówki bezpieczeństwa.
Color	Black
Dimensions	244 x 575 x 542 mm
Weight	65.5 (kilogram)
Other features	1 blok mini-zacisków do zdalnego wyłączania zasilania (konfigurowalny) 1 blok mini-zacisków do przekaźnika wyjściowego 1 gniazdo do opcjonalnego modułu komunikacyjnego
Video
Video
Width	600
Height	960
Depth	330
Weight	55700
Description
Description	Zasilacz UPS z podwójną konwersją online 6000 VA/5400 W, wielojęzyczny wyświetlacz LCD, licznik energii, podwójne wejście, gniazdo na opcjonalną kartę zarządzania, USB i porty szeregowe, styki bezpotencjałowe, złącze RPO, oprogramowanie do zarządzania zasilaniem kompatybilne z wirtualnym środowiskiem, baterie wymienialne podczas pracy urządzenia, długi czas pracy awaryjnej czterema opcjonalnymi modułami EBM.

Output power capacity	6 kVA
Output power	5400 W
Input operation voltage (min)	100 V
Input operation voltage (max)	276 V
Input frequency	40/70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output voltage regulation	1%
Maximum current	90 A
Efficiency	98%
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	2%
Input current Total Harmonic Distortion (THD)	5%
Noise level	45 dB
AC outlet types	C13 coupler, C19 coupler, Terminal
Power plug	Terminal
AC outlets quantity	11 AC outlet(s)
USB 2.0 ports quantity	1
RS-232 ports	1
Typical backup time at half load	11 min
Automatic battery test	Yes
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	3U
Display type	LCD
Safety	EN 62040-1, UL 1778, CSA 22.2
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Width	130 mm
Depth	685 mm
Height	440 mm
Weight	48 kg
Description
Description	Eaton 9SX6KiRT. Output power capacity: 6 kVA, Output power: 5400 W, Input operation voltage (min): 100 V. AC outlet types: C13 coupler, C19 coupler, Terminal, Power plug: Terminal, AC outlets quantity: 11 AC outlet(s). Typical backup time at half load: 11 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Width: 130 mm, Depth: 685 mm, Height: 440 mm

Description
	5400 Watts \| 6000 VA \| Topology OnLine DoubleConvertion \| Output power connector type IEC 320 C13, IEC 320 C19 \| 1xRS232 \| 1xUSB \| Desktop/pedestal \| Rack \| Colour Black

Description	EATON 9SX 6000i 6000VA/5400W Rack 3U
VatType	VAT
Weight	57.500000000
Height	320.000000000
Width	595.000000000
Length	960.000000000
Description
Description	EATON 9SX 6000i 6000VA/5400W Rack 3U USB RS232 4 dry contacts 3min Runtime 5000W

ShortDesc	Eaton 9SX UPS, 6000 VA, 5400 W, Input: Hardwired, Outputs: (8) C13, (2) C19, Hardwired, Rack/tower, 3U
UPS Power (VA)	6000 VA
UPS Power (W)	5400 W
Runtime (min)	8/3
Input Voltage (V)	176-276V without derating (up to 120–276V with derating)
Output Voltage (V)	200/208/220/230/240V +/– 1%
Input Frequency (Hz)	40-70 Hz
Output Frequency (Hz)	50/60 Hz autoselect, frequency converter as standard
Input Connections	Hardwired - see manual for terminal block layout
Output Connections	Hardwired - see manual for terminal block layout
Waveform Type	On-line double conversion with PFC (Power Factor Correction) system 8x IEC-320-C13 2X IEC-320-C19
Recharge time (hours)	-
Battery Type	-
Topology	Online
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	USB port RS232 serial port (USB and RS232 ports cannot be used simultaneously) 4x dry contacts (DB9) Mini terminal block for remote On/Off and 1 for remote power Off 1x slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	-
Form Factor	Rack Tower
Package Contents	-
Width	440 mm
Depth	685 mm
Height	130 mm
Net Weight	48.000 kg
Gross Weight	55.700 kg

Description
	Eaton 9SX 6000i RT3U 9SX6KiRT (9SX6KIRT)
