PrevEaton 9PX 2200i RT2U

NextEaton 9PX 2200i RT2U Netpac...

Manufacturer: EATON

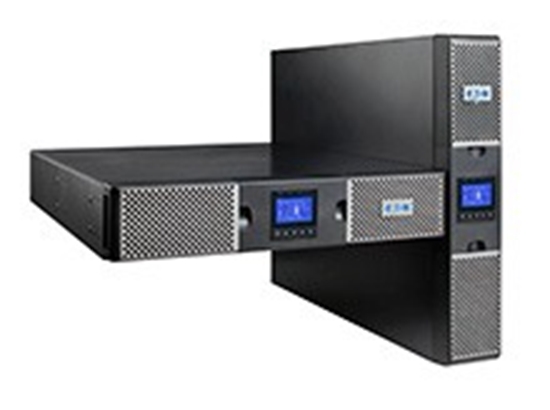

Eaton 9PX 2200i RT2U Netpack

€2133.01 incl tax

SKU: ST00611392

Manufacturer part number: 9PX2200IRTN

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
DE	5 - 15 days	4	€2133.01 incl tax
PL	8 - 15 days	4	€2260.43 incl tax
LV	2 - 4 days	1	€2363.31 incl tax
DE	5 - 10 days	1	€2483.50 incl tax
LT	5 - 15 days	5	€2682.51 incl tax
PL	9 - 12 days	2	€2979.04 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7
Details 8
Details 9

UPS voltage regulators	2200
Socket (IEC320)	yes
Socket (RJ-45)	yes
Socket (USB)	yes
Tips	Double Conversion Online
Socket (RS232)	yes
Batteries	Batteries

Apparent power	2200 VA
Active power	2200 (Watt)
UPS Architecture	on-line double conversion
Number of phases input	1 (230V)
Chassis type	Rack
Rack dimensions	2U
Input power ports	IEC-C20
Output power ports	2 x IEC-C19
Output power ports	8 x IEC-C13
Connectors	RS-232 (COM)
Connectors	1 x USB (Typ B)
Connectors	RJ-45
Dimensions	86,5 x 440 x 605 mm
Video
Video
Width	585
Height	780
Depth	235
Weight	32600

UPS topology	Double-conversion (Online)
Output power capacity	2.2 kVA
Output power	2200 W
Waveform	Pure sine
Input operation voltage (min)	176 V
Input operation voltage (max)	276 V
Input frequency	40/70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Number of input phases	1
Efficiency	93.5%
Power factor	1
Noise level	40 dB
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	10 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	10 min
Hot-swap battery	Yes
Automatic battery test	Yes
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Display type	LCD
LED indicators	Yes
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Operating temperature (T-T)	0 - 40 °C
Sustainability certificates	ENERGY STAR
Width	440 mm
Depth	605 mm
Height	86.5 mm
Weight	25 kg
Rack mount kit	Yes
Management card included	Yes
Bundled software	Intelligent Power Software suite
Harmonized System (HS) code	85078000
Nominal output voltage	230 V
Nominal input voltage	230 V
Description
Description	Eaton 9PX2200IRTN. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 10 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 605 mm, Height: 86.5 mm

Description
	2200 Watts \| 2200 VA \| Topology OnLine DoubleConvertion \| Input ports Single, IEC320 C20 \| Output power connector type IEC 320 C13, IEC 320 C19 \| 1xRS232 \| 1xUSB \| Rack

Description	EATON 9PX 2200i RT2U Netpack
VatType	VAT
Weight	45.600000000
Height	250.000000000
Width	585.000000000
Length	780.000000000
Description
Description	EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 5/14min Voll/Halblast

ShortDesc	Eaton 9PX 2200i RT2U Netpack
UPS Power (VA)	2200 VA
UPS Power (W)	2200 W
Runtime (min)	-
Input Voltage (V)	176-276 V (100-276 V with derating)
Output Voltage (V)	230V default (200/208/220/230/240V)
Input Frequency (Hz)	40-70 Hz
Output Frequency (Hz)	50-60 Hz
Input Connections	C20
Output Connections	8x C13 2x C19
Waveform Type	Sine wave
Recharge time (hours)	-
Battery Type	Sealed Lead-acid
Topology	Online Double-conversion
USB	Yes
SmartSlot	-
RJ-45	-
Other Connections	USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote On/Off and Remote Power Off Mini-terminal block for output relay Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Control Panel	Multilingual graphical LCD display
Alarm	-
Color	Black/Silver
Form Factor	Rack Tower
Package Contents	Network Management Card Input cable Rack-mounting kit 2x Supports for tower mounting Cable locking system USB cable Serial cable 2x IEC-IEC cables Quickstart guide Safety instructions
Width	440 mm
Depth	605 mm
Height	86.5 mm
Net Weight	25.020 kg
Gross Weight	32.600 kg

Description	EATON 9PX 2200i RT2U Netpack
VatType	VAT
Weight	45.600000000
Height	250.000000000
Width	585.000000000
Length	780.000000000
Description
Description	EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 5/14min Voll/Halblast

Gross depth (mm)	775.00
Gross height (mm)	240.00
Gross weight	31.8
Gross width (mm)	583.00
Net weight	29.8
Packing quantity	1.00
Tare weight (kg)	2.00
Volume (m3)	0.11
Embeeded battery	Yes
WEEE tax	Yes
Producer	Eaton
Paper/Pasteboard	1550
Plastic (No PET)	50
TI weight (kg)	16
WEE classification	CL109:5:2017-04-01
Composition of battery	CL127:KT:2016-12-09
Classification of battery	CL126:NE:2016-12-09
Type of battery	Accumulator
Palette Qty	16
UPS topology	On line
Capacity	2200
Producer product name	9PX 2200i RT2U Netpack
Producer product family	UPS
Capacity	2200

Description
	Eaton 9PX 2200i RT2U Netpack (9PX2200IRTN)
