    PrevEaton 9PX 2200i RT2U Netpac...
    NextEaton 9PX 3000i RT3U
    Manufacturer: EATON

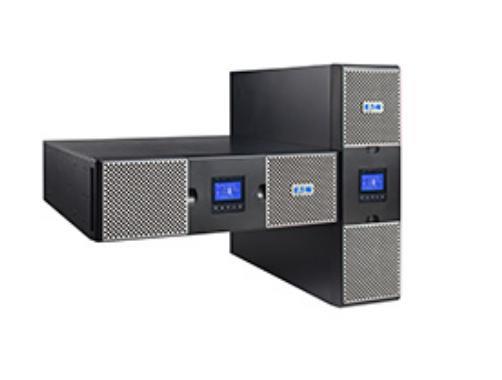

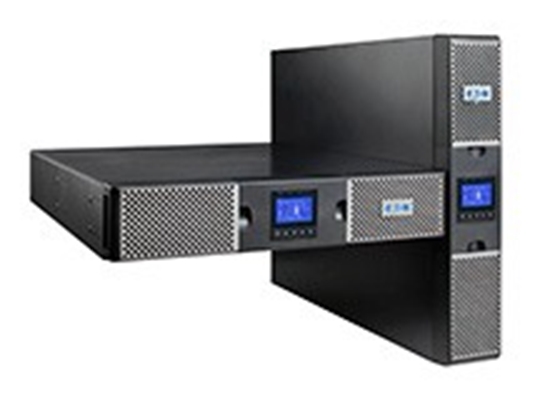

    Eaton 9PX 3000i RT2U Netpack


    €3329.25 incl tax

    SKU: ST00760850
    Manufacturer part number: 9PX3000IRTN
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL
    PL

    Products specifications
    UPS voltage regulators 3000
    Socket (RS232) yes
    Socket (IEC320) yes
    Output power 3000
    Tips Double Conversion Online
    Socket (USB) yes
    Socket (RJ-45) yes
    Apparent power3000 VA
    Active power3000 (Watt)
    UPS Architectureon-line double conversion
    Number of phases input1 (230V)
    Chassis typeRack
    Rack dimensions2U
    Input power portsIEC-C20
    Output power ports8 x IEC-C13
    Output power ports2 x IEC-C19
    ConnectorsRS-232 (COM)
    ConnectorsRJ-45
    Connectors1 x USB (Typ B)
    Dimensions

    86,5 x 440 x 605 mm
    Video
    Video
    Width585
    Height785
    Depth240
    Weight35200
    UPS topologyDouble-conversion (Online)
    Output power capacity3 kVA
    Output power3000 W
    WaveformPure sine
    Input operation voltage (min)176 V
    Input operation voltage (max)276 V
    Input frequency40/70 Hz
    Output operation voltage (min)208 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Number of input phases1
    Efficiency94%
    Power factor1
    Noise level40 dB
    AC outlet typesC13 coupler, C19 coupler
    Power plugC20 coupler
    AC outlets quantity10 AC outlet(s)
    USB portYes
    USB 2.0 ports quantity1
    RS-232 ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at half load9.5 min
    Hot-swap batteryYes
    Automatic battery testYes
    Form factorRackmount/Tower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsYes
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
    Operating temperature (T-T)0 - 40 °C
    Sustainability certificatesENERGY STAR
    Width440 mm
    Depth605 mm
    Height86.5 mm
    Weight27.6 kg
    Rack mount kitYes
    Management card includedYes
    Bundled softwareIntelligent Power Software suite
    Harmonized System (HS) code85078000
    Nominal output voltage230 V
    Nominal input voltage230 V
    Description
    Eaton 9PX3000IRTN. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 605 mm, Height: 86.5 mm
    Description
    3000 Watts | 3000 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C20 | Output power connector type IEC 320 C13, IEC 320 C19 | 1xRS232 | 1xUSB | Rack
    DescriptionEATON 9PX 3000i 3000VA/3000W Tower/Rack
    VatTypeVAT
    Weight45.620000000
    Height295.000000000
    Width585.000000000
    Length780.000000000
    Description
    EATON 9PX 3000i 3000VA/3000W Tower/Rack 2U Network Card 4min Runtime 2500W
    ShortDescEaton 9PX 3000i RT2U Netpack
    UPS Power (VA)3000 VA
    UPS Power (W)3000 W
    Runtime (min)-
    Input Voltage (V)176-276V without derating (up to 100–276V with derating)
    Output Voltage (V)-
    Input Frequency (Hz)50-60 Hz autoselect
    Output Frequency (Hz)50/60 Hz autoselect, frequency converter as standard
    Input ConnectionsIEC-320-C20
    Output Connections
  • (8) IEC-320-C13
  • (2) IEC-320-C19
    		•
    Waveform TypeOn-line double conversion with Power Factor Correction (PFC) system
    Recharge time (hours)-
    Battery Type-
    TopologyOnline
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • Network management card
  • USB port
  • serial RS232 port
  • mini-terminal block for remote ON/OFF
  • mini-terminal block for Remote Power Off
  • mini-terminal block for Output relay
    		•
    Control PanelMultilingual graphical LCD display
    Alarm-
    Color-
    Form FactorRack
    Package Contents-
    Width440 mm
    Depth605 mm
    Height86.5 mm
    Net Weight27.600 Kg
    Gross Weight35.100 kg
    Gross depth (mm)550.00
    Gross height (mm)165.00
    Gross weight31.96
    Gross width (mm)595.00
    Net weight28.00
    Packing quantity1.00
    Paper/Pasteboard3000.00
    Plastic (No PET)960.00
    Tare weight (kg)3.96
    Volume (m3)0.05
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:5:2017-04-01
    ProducerEaton
    UPS topologyOn line
    Capacity3000
    Producer product name9PX3000IRTN
    Producer product familyUPS
    Dimensions (WxDxH)440 x 605 x 86.5
    Capacity3000
    TI weight (kg)1.5
    Palette Qty16
    Warranty36
