UPS topology | Double-conversion (Online) |
Output power capacity | 10 kVA |
Output power | 10000 W |
Waveform | Sine |
Input operation voltage (min) | 100 V |
Input operation voltage (max) | 476 V |
Input frequency | 40 - 70 Hz |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Output frequency regulation | 50/60 Hz |
Surge energy rating | 480 J |
Number of output phases | 1 |
Efficiency | 94.6% |
Crest factor | 3:1 |
Emergency Power Off (EPO) | Yes |
Output voltage Total Harmonic Distortion (THD) | 3% |
Noise level | 55 dB |
Surge protection | Yes |
Audible alarm(s) | Yes |
Auto-restart | Yes |
AC outlet types | C13 coupler, C19 coupler |
Power plug | Terminal |
AC outlets quantity | 10 AC outlet(s) |
Number of output IEC jumpers | 3 |
USB port | Yes |
Serial interface | Yes |
Serial interface type | RJ-45 |
SmartSlot | Yes |
Battery technology | Sealed Lead Acid (VRLA) |
Battery capacity | 1805 VAh |
Typical backup time at full load | 3.8 min |
Typical backup time at half load | 11.5 min |
Battery life (max) | 5 year(s) |
Battery recharge time | 3 h |
Hot-swap battery | Yes |
Automatic battery test | Yes |
Cold start | Yes |
Form factor | Rackmount/Tower |
Product colour | Black |
Rack capacity | 6U |
Display type | LCD |
LED indicators | Yes |
Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -15 - 45 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 15000 m |
Sustainability certificates | RoHS, ENERGY STAR |
Width | 432 mm |
Depth | 715 mm |
Height | 263 mm |
Weight | 111.8 kg |
Package width | 600 mm |
Package depth | 1000 mm |
Package height | 461 mm |
Package weight | 130 kg |
Rack mount kit | Yes |
Bracket | Yes |
Cables included | USB cable |
Temperature sensor | Yes |
Quick installation guide | Yes |
Warranty card | Yes |
Software CD | Yes |
Harmonized System (HS) code | 85078000 |
Interface | RJ-45 10/100 Base-T |
Nominal output voltage | 230 V |
Nominal input voltage | 230 V |
Packaging content | Web/SNMP Management Card |
Description |

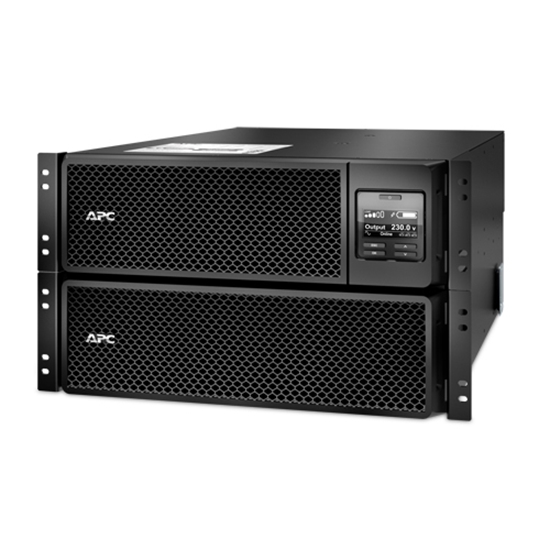

APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1805 VAh, Typical backup time at full load: 3.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Width: 432 mm, Depth: 715 mm, Height: 263 mm |
