    Ražotājs: DELOCK

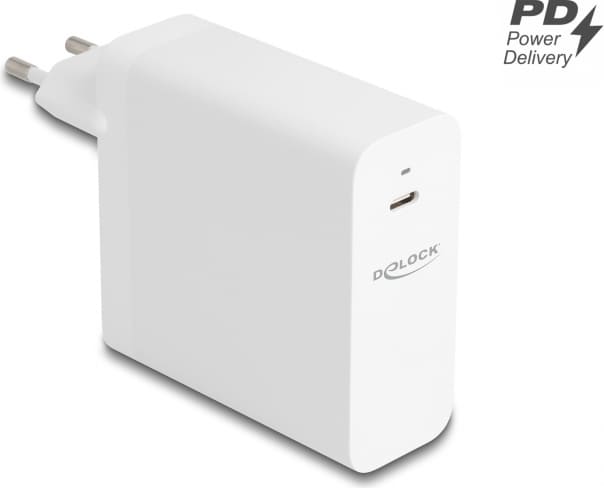

    Delock USB GaN Charger 1 x USB Type-C™ PD 3.1 with 140 W


    €101,22 ar pvn

    Artikuls: ST08170791
    Preces kods: 41471
    Ražotāja mājaslapa
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    Status7 dienas
    Description
    This USB charger by Delock can be used to charge a USB devices. The port is equipped with a USB Type-C™ Power Delivery (PD 3.1), thereby supported devices can be charged with up to 140 watt.

    USB-PD Version 3.1
    The USB PD 3.1 specification defines the voltage levels 28, 36 and 48 volts with support for Extended Power Range (EPR) with 5 amps each. Due to a calculated maximum power of 240 W (48 V / 5 A), other device classes can be supplied with power in addition to powerful laptops and desktop PCs. The Delock charger features an output power of 28 V and 5 A.


    The use of GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.

    Note
    For the EPR mode (28, 36, 48 V / 5 A), a USB cable with a corresponding E-marker is mandatory. If this E-marker is not available, max. 3 A are transmitted.
    Corresponding cables by Delock are optionally available.
    Specification:
    • Connectors:
      1 x USB Type-C™ female
      1 x plug CEE 7/16
    • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 2.0 A
    • Output:
      PD 3.1: 5.0 V / 9.0 V / 12.0 V / 15.0 V / 3.0 A, 20.0 V / 28.0 V / 5.0 A
    • Output power: max. 140.0 W total
    • Average active efficiency 89.75 %
    • Efficiency at low load (10 %) 87.28 %
    • No-load power consumption 0.182 W
    • USB Power Delivery (PD) 3.1
    • Overload protection
    • Over current protection
    • Overheating protection
    • Short circuit protection
    • Colour: white
    • Dimensions without plug (LxWxH): ca. 113 x 75 x 35 mm
    Package content:
    • USB charger
    • USB Type-C™ to USB Type-C™ cable, length ca. 1 m
    • User manual
    Data sheet:
    http://www.delock.de/produkt/41471/pdf.html?sprache=en
