    Ražotājs: DIGITUS

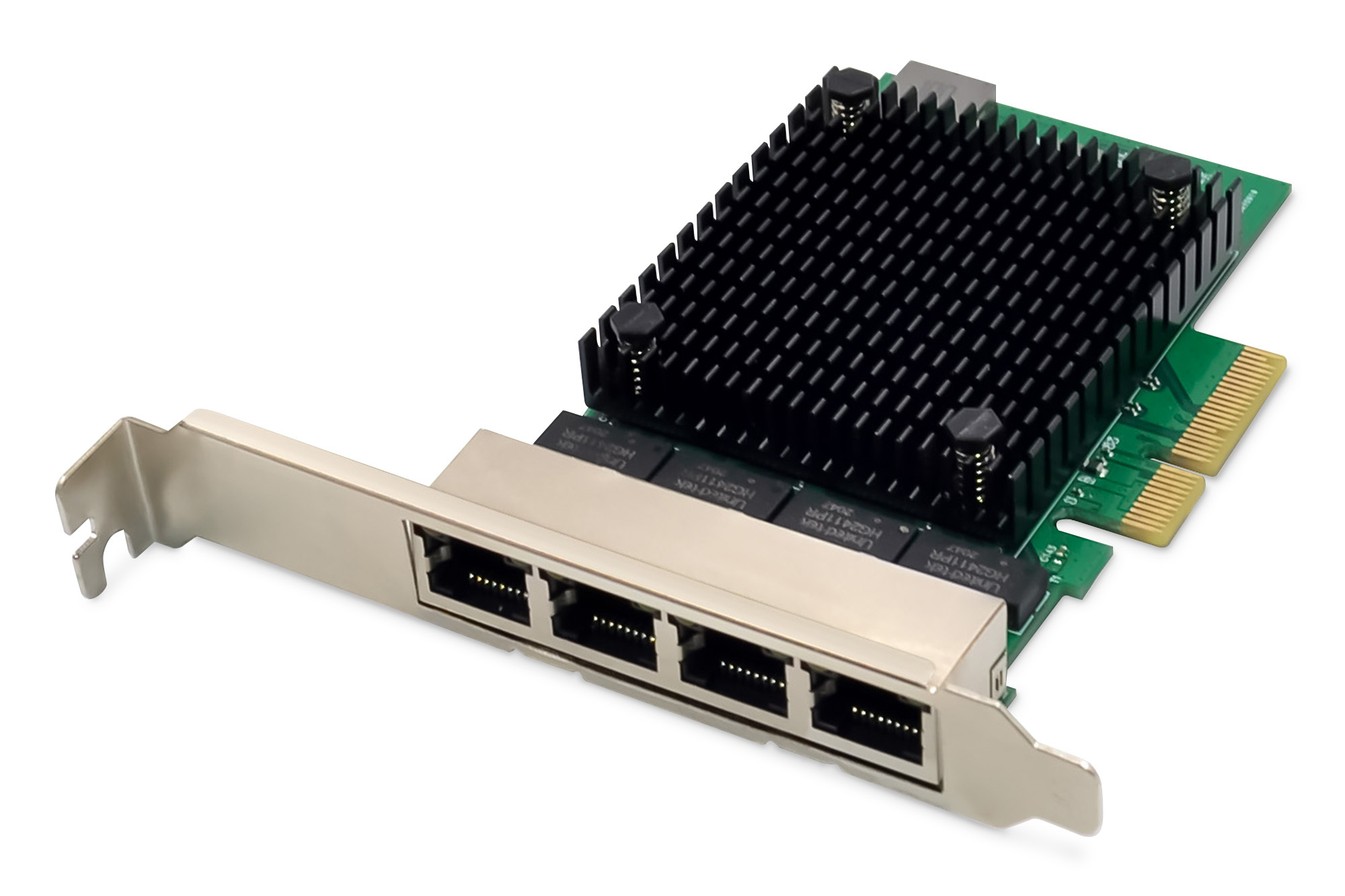

    Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset


    €96,49 ar pvn

    Artikuls: ST08145429
    Preces kods: DN-10136
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Īpašības RJ-45
    Krāsa Sarkana
    Īpašības USB
    Status14 dienas
    Description
    4 Port RJ45 RTL8125B 2,5 GBits Server NIC

    The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.

    2-Lane PCI Express bus connecting with up to 10Gbps bus width
    PCI Express interface: x4
    Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
    Supports 2.5G and 1G Lite mode
    Supports pair swap/polarity/skew correction
    Crossover Detection& Auto-Correction

    The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

    Support PCI Express Specification Revision 2.1
    2-Lane PCI Express bus connecting with up to 10Gbps bus width
    PCI Express interface: x4
    Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
    Supports 2.5G and 1G Lite mode
    Auto-Negotiation with Extended Next Page capability(XNP)
    Supports pair swap/polarity/skew correction
    Crossover Detection& Auto-Correction
    Supports 1-Lane 2.5/5Gbps PCI Express Bus
    Supports hardware ECC(Error correction code)function
    Supports hardware CRC(Cyclic Redundancy Check)function
    Supports PCI MSI (Message Signaled Interrupt)and MSI-X
    Transmit/Receive on-chip buffer support
    Supports ECMA-393 ProxZzzy Standard for sleeping hosts
    Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports
    Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
    Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
    Supports IEEE802.1Qav credit-based shaper algorithm
    Supports IEEE802.1P Layer 2 Priority encoding
    Supports IEEE802.1Q VLan tagging
    Supports IEEE802.1ad Double VLAN
    Supports IEEE802.3az (Energy Efficient Ethernet)
    Supports IEEE802.3bz(2.5GBase-T)
    Supports full duplex flow control(IEEE802.3x)
    Supports jumbo frame to 16K bytes
    Supports Virtual Machine Queue(VMQ)
    Supports quad core Receive –Side Scaling(RSS)
    Supports Protocol Offload (ARP&NS)
    Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / Linux / DOS
    Chipset: RTL8125B+ASM1806

    Package content:
    1 x PCIe Quad-Port 2.5G network adapter
    1 x User’s Manual
    1 x CD
    1 x Low profile bracket

    Platums(cm) 15.5
    Grums(cm) 3
    Augstums(cm) 22
    Svars(kg) 0.2435
    Tilpums(cm3) 1023
    Izcelsmes valsts CN

    Specifikācija
    Īpašības RJ-45
    Krāsa Sarkana
    Īpašības USB
    Status14 dienas
    Description
    4 Port RJ45 RTL8125B 2,5 GBits Server NIC

    The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.

    2-Lane PCI Express bus connecting with up to 10Gbps bus width
    PCI Express interface: x4
    Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
    Supports 2.5G and 1G Lite mode
    Supports pair swap/polarity/skew correction
    Crossover Detection& Auto-Correction

    The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

    Support PCI Express Specification Revision 2.1
    2-Lane PCI Express bus connecting with up to 10Gbps bus width
    PCI Express interface: x4
    Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
    Supports 2.5G and 1G Lite mode
    Auto-Negotiation with Extended Next Page capability(XNP)
    Supports pair swap/polarity/skew correction
    Crossover Detection& Auto-Correction
    Supports 1-Lane 2.5/5Gbps PCI Express Bus
    Supports hardware ECC(Error correction code)function
    Supports hardware CRC(Cyclic Redundancy Check)function
    Supports PCI MSI (Message Signaled Interrupt)and MSI-X
    Transmit/Receive on-chip buffer support
    Supports ECMA-393 ProxZzzy Standard for sleeping hosts
    Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports
    Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
    Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
    Supports IEEE802.1Qav credit-based shaper algorithm
    Supports IEEE802.1P Layer 2 Priority encoding
    Supports IEEE802.1Q VLan tagging
    Supports IEEE802.1ad Double VLAN
    Supports IEEE802.3az (Energy Efficient Ethernet)
    Supports IEEE802.3bz(2.5GBase-T)
    Supports full duplex flow control(IEEE802.3x)
    Supports jumbo frame to 16K bytes
    Supports Virtual Machine Queue(VMQ)
    Supports quad core Receive –Side Scaling(RSS)
    Supports Protocol Offload (ARP&NS)
    Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / Linux / DOS
    Chipset: RTL8125B+ASM1806

    Package content:
    1 x PCIe Quad-Port 2.5G network adapter
    1 x User’s Manual
    1 x CD
    1 x Low profile bracket

    Platums(cm) 15.5
    Grums(cm) 3
    Augstums(cm) 22
    Svars(kg) 0.2435
    Tilpums(cm3) 1023
    Izcelsmes valsts CN
