| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 914.4 - 7620 mm (36 - 300") |
| Supported aspect ratios | 4:3, 16:9 |
| Projection distance | 0.4 - 3.4 m |
| Number of colours | 1.073 billion colours |
| Keystone correction, vertical | -40 - 40° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 100 kHz |
| Vertical synchronization (min) | 0.024 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 6000 h |
| Lamp type | OSRAM |
| Lamp power | 220 W |
| Lamps quantity | 1 lamp(s) |
| Focus | Manual |
| Fixed focal length | 7.51 mm |
| Aperture range (F-F) | 2.8 - 2.8 |
| Digital zoom | 2x |
| Optical zoom | 1x |
| Throw ratio | 0.52:1 |
| Analog signal format system | NTSC, PAL, SECAM |
| Supported graphics resolutions | 1280 x 800 (WXGA) |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| Card reader integrated | No |
| Noise level | 32 dB |
| Noise level (economic mode) | 24 dB |
| Projection modes | Ceiling, Front, Rear |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Number of built-in speakers | 1 |
| Product type | Standard throw projector |
| Market positioning | Short throw |
| Product colour | White |
| Housing material | Plastic |
| Placement | Ceiling |
| LED indicators | Yes |
| Built-in display | No |
| Power source | AC |
| Power consumption (typical) | 270 W |
| Power consumption (PowerSave) | 210 W |
| AC input voltage | 120 - 230 V |
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight | 3.1 kg |
| Remote control included | Yes |
| Remote control type | IR |
| Quick start guide | Yes |
| Harmonized System (HS) code | 85286200 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Description |

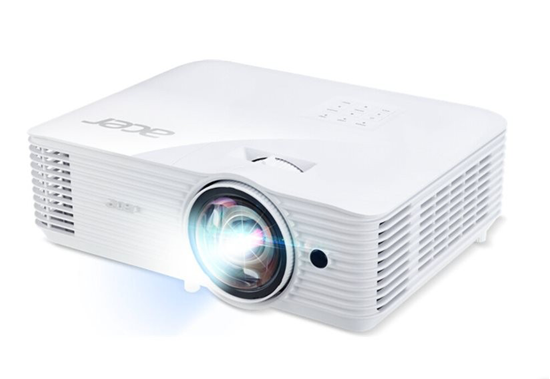

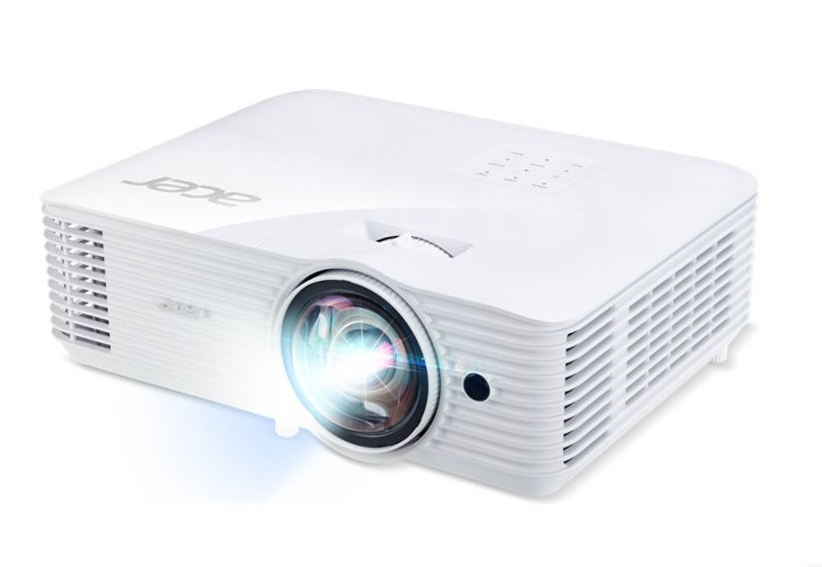

| Acer S1386WH. Projector brightness: 3600 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 6000 h. Focus: Manual, Fixed focal length: 7.51 mm, Aperture range (F-F): 2.8 - 2.8. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 1280 x 800 (WXGA). Noise level: 32 dB, Noise level (economic mode): 24 dB, Projection modes: Ceiling, Front, Rear |
