Ražotājs: BE QUIET!

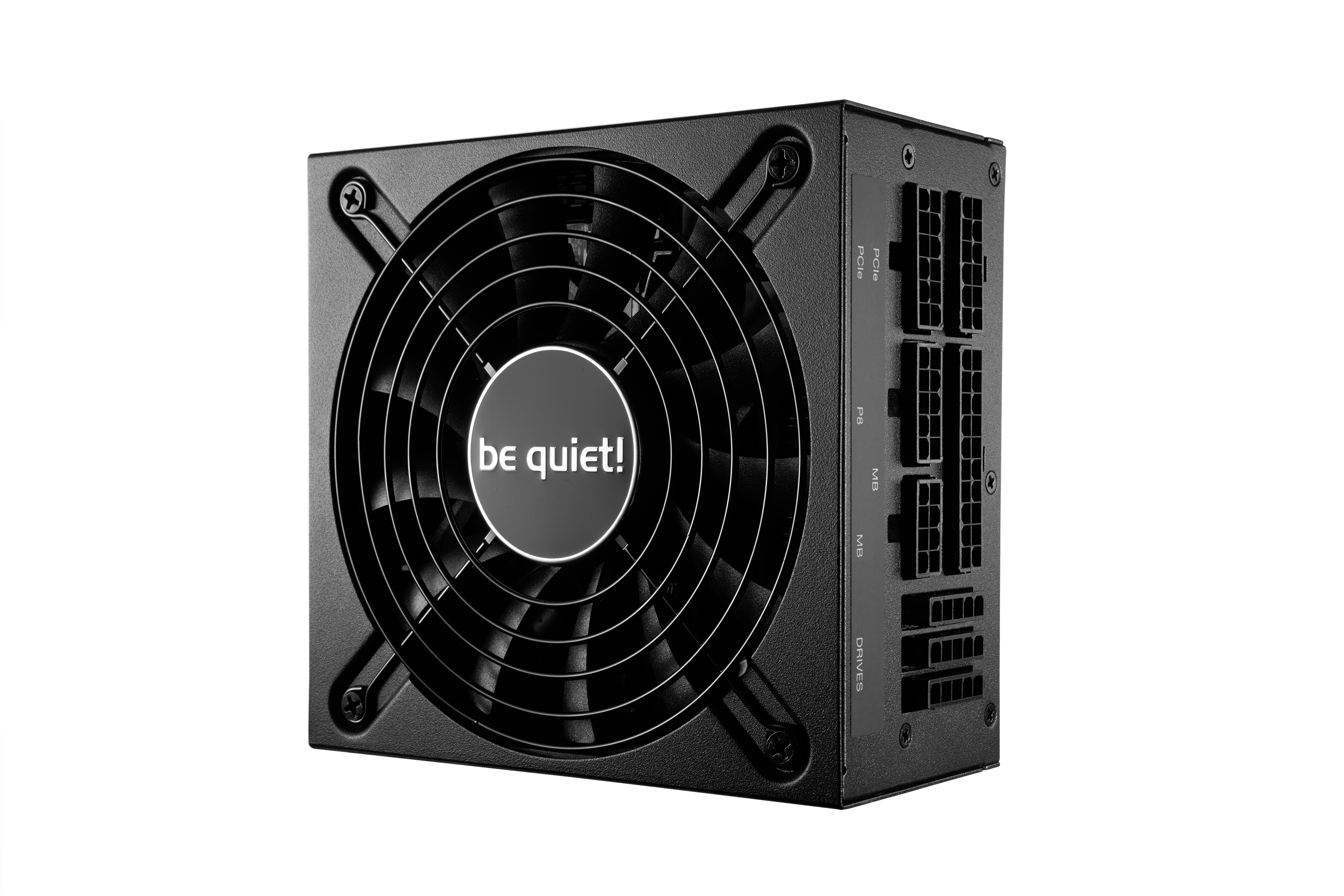

be quiet! SFX L Power power supply unit 500 W 20+4 pin ATX Black

€132,54 ar pvn

Artikuls: ST03977687

Preces kods: BN238

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
Ir veikalā	0 - 1 dienās	1	€132,54 ar pvn
PL	8 - 15 dienās	4	€132,59 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Barošanas bloks	500W - 550W
Plates izmērs (Form Factor)	ATX
Krāsa	Melna
Krāsa	Zelta

Total power	500 W
AC input voltage	100 - 240 V
Peak power	550 W
AC input frequency	50 - 60 Hz
Input current	10 A
Power factor	0.99
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	500 W
Combined power (+5V)	105 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	41.7 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	16.7 ms
Efficiency	92%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	30 cm
Number of SATA power connectors	6
Number of PATA power connectors	3
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	40 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	40 cm
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	SFX
80 PLUS certification	80 PLUS Gold
Supported motherboard form factors	Mini-ITX
ATX version	2.4
Silent mode	Yes
Bearing technology	Sleeve
Certification	CE, CB, TÜV, FCC, cTUVus, RCM
Product colour	Black
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Width	125 mm
Depth	130 mm
Height	64 mm
Weight	1.14 kg
Manual	Yes
Package width	205 mm
Package depth	220 mm
Package height	80 mm
Package weight	2.02 kg
Package type	Box
Sustainability certificates	RoHS, ENERGY STAR
Master (outer) case width	430 mm
Master (outer) case length	430 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	21.4 kg
Harmonized System (HS) code	84733020
Products per master (outer) case	10 pc(s)
Screws included	Yes
Cable ties included	Yes
Noise level (silent mode, <30%)	9.9 dB
Noise level (quiet mode, 50%)	14 dB
Noise level (full-load mode, 100%)	28.5 dB
Description
Description	be quiet! SFX L Power. Total power: 500 W, AC input voltage: 100 - 240 V, Peak power: 550 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, PCI Express power cable length: 40 cm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 130 mm, Height: 64 mm

Description
SFX 500W be quiet! SFX L Power

Specifikācija

Barošanas bloks	500W - 550W
Plates izmērs (Form Factor)	ATX
Krāsa	Melna
Krāsa	Zelta

Total power	500 W
AC input voltage	100 - 240 V
Peak power	550 W
AC input frequency	50 - 60 Hz
Input current	10 A
Power factor	0.99
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	500 W
Combined power (+5V)	105 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	41.7 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	16.7 ms
Efficiency	92%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	30 cm
Number of SATA power connectors	6
Number of PATA power connectors	3
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	40 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	40 cm
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	SFX
80 PLUS certification	80 PLUS Gold
Supported motherboard form factors	Mini-ITX
ATX version	2.4
Silent mode	Yes
Bearing technology	Sleeve
Certification	CE, CB, TÜV, FCC, cTUVus, RCM
Product colour	Black
Fan diameter	12 cm
Number of fans	1 fan(s)
On/off switch	Yes
Width	125 mm
Depth	130 mm
Height	64 mm
Weight	1.14 kg
Manual	Yes
Package width	205 mm
Package depth	220 mm
Package height	80 mm
Package weight	2.02 kg
Package type	Box
Sustainability certificates	RoHS, ENERGY STAR
Master (outer) case width	430 mm
Master (outer) case length	430 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	21.4 kg
Harmonized System (HS) code	84733020
Products per master (outer) case	10 pc(s)
Screws included	Yes
Cable ties included	Yes
Noise level (silent mode, <30%)	9.9 dB
Noise level (quiet mode, 50%)	14 dB
Noise level (full-load mode, 100%)	28.5 dB
Description
Description	be quiet! SFX L Power. Total power: 500 W, AC input voltage: 100 - 240 V, Peak power: 550 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, PCI Express power cable length: 40 cm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 130 mm, Height: 64 mm

Description
SFX 500W be quiet! SFX L Power
