Connectivity technology | Wireless |
Host interface | USB |
Interface | WLAN |
USB version | 2.0 |
Maximum data transfer rate | 150 Mbit/s |
Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Wi-Fi | Yes |
Wi-Fi band | Single-band (2.4 GHz) |
Frequency range | 2.4 - 2.4835 GHz |
Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
WLAN data transfer rates supported | 11,54,150 Mbit/s |
Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK |
Internal | No |
Component for | PC/Laptop |
Product colour | Black |
Antenna | Yes |
Antenna design | Internal |
Transmitting power (CE) | 20 dBm |
Transmitting power (FCC) | 20 dBm |
LED indicators | Status |
Operating modes | Infrastructure mode |
USB powered | Yes |
Windows operating systems supported | Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64 |
Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
Linux operating systems supported | Yes |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Sustainability compliance | Yes |
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
Width | 18.6 mm |
Depth | 15 mm |
Height | 7.1 mm |
Weight | 2.1 g |
Package width | 138 mm |
Package depth | 128 mm |
Package height | 30 mm |
Package weight | 90 g |
Resource CD | Yes |
Quick installation guide | Yes |
Harmonized System (HS) code | 85176990 |
Description |

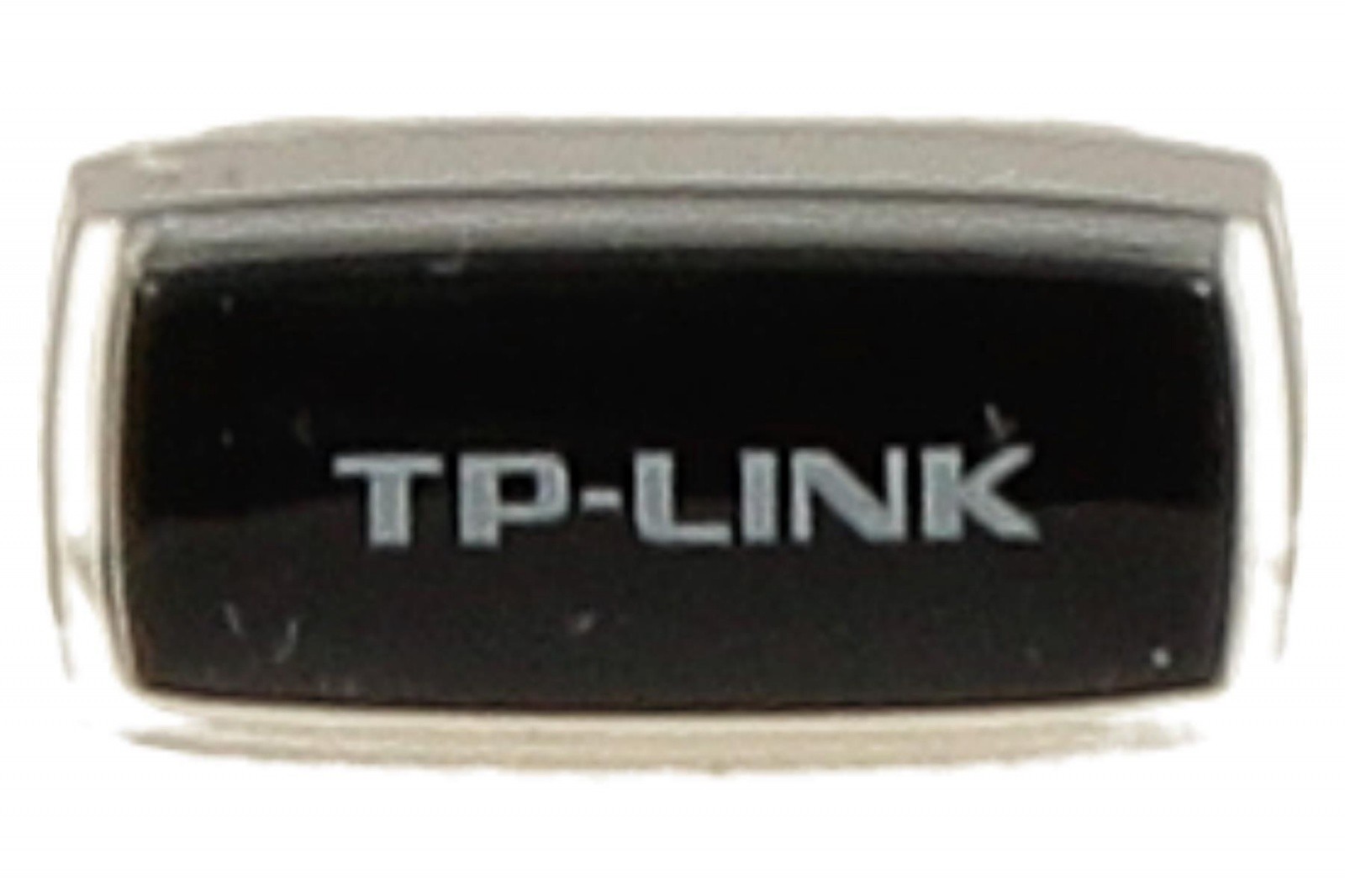

TP-Link TL-WN725N. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 150 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). USB powered. Product colour: Black |
