    Ražotājs: EDUP

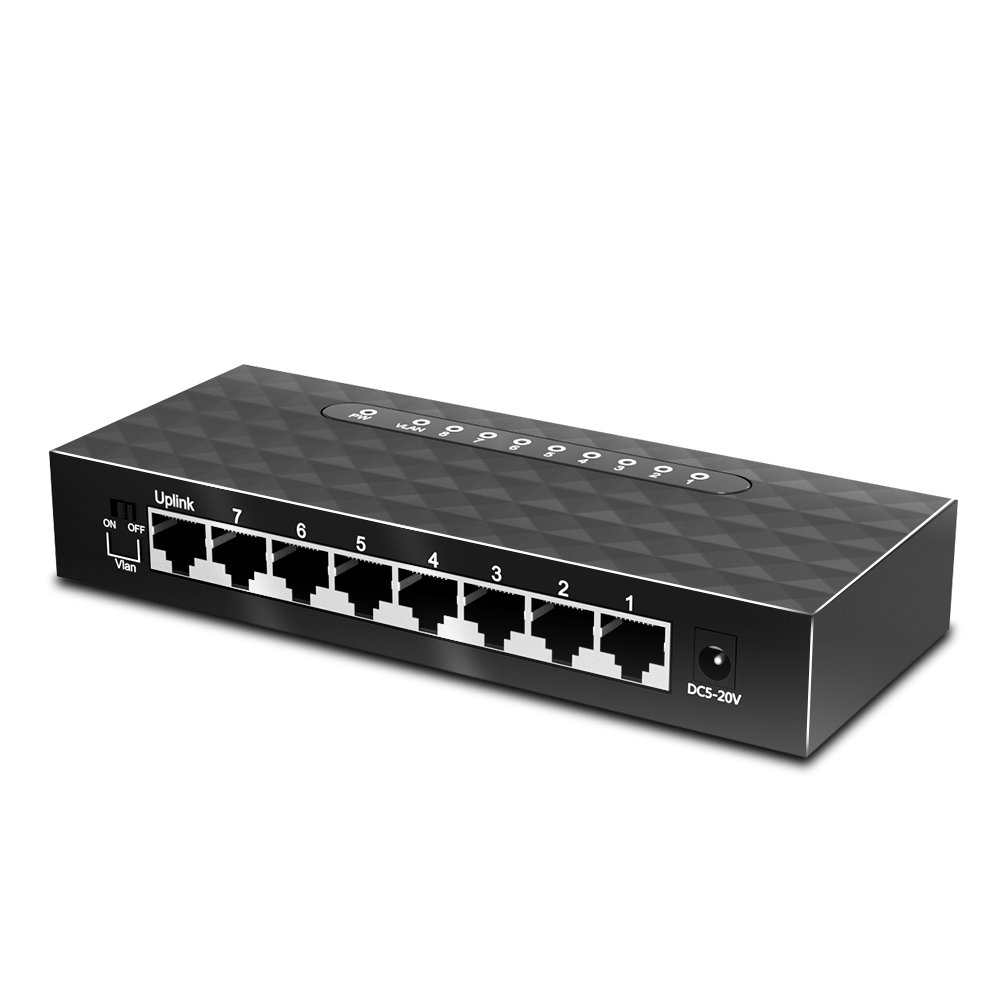

    EDUP EP-SG7810 Network Switch 8 port 10/100/1000mbps / RTL8370N / VLAN


    €23,49 ar pvn

    Artikuls: ST07729799
    Preces kods: EP-SG7810
    Ražotāja mājaslapa
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    Portu skaits RJ-45 5
    Portu skaits RJ-45 4
    Portu skaits RJ-45 8
    Portu skaits RJ-45 3
    Weight0.1
    Gross weight0.12
    Description
    • Single-chip 8-port gigabit non-blocking switch architecture
    • Embedded 8-port 10/100/1000Base-T PHY
    • Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
    • Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
    • Supports 9216-byte jumbo packet length forwarding at wire speed
    • Supports Realtek Cable Test (RTCT) function
    • Supports 64-entry ACL Rules
    • Search keys support physical port, Layer2, Layer3, and Layer4 information
    • Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
    • Supports 5 types of user defined ACL rule format for 64 ACL rules
    • Optional per-port enable/disable of ACL function
    • Optional setting of per-port action to take when ACL mismatch
    • Supports IEEE 802.1Q VLAN
    • Supports 4K VLANs and 32 Extra Enhanced VLANs
    • Supports Un-tag definition in each VLAN
    • Supports VLAN policing and VLAN forwarding decision
    • Supports Port-based, Tag-based, and Protocol-based VLAN
    • Up to 4 Protocol-based VLAN entries
    • Supports per-port and per-VLAN egress VLAN tagging and un-tagging
    • Supports IVL, SVL, and IVL/SVL
    • Supports 8K-entry MAC address table with 4-way hash algorithm
    • Up to 8K L2/L3 Filtering Database
    • Supports Spanning Tree port behavior configuration
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
    • Supports IEEE 802.1x Access Control Protocol
    • Port-Based Access Control
    • MAC-Based Access Control
    • Guest VLAN
    • Supports Quality of Service (QoS)
    • Supports per port Input Bandwidth Control
    • Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
    • Eight Priority Queues per port
    • Per queue flow control
    • Min-Max Scheduling
    • Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
    • One leaky bucket to constrain the average packet rate of each queue
    • Supports rate limiting (64 shared meters, with 8kpbs granulation)
    • Supports RFC MIB Counter
    • MIB-II (RFC 1213)
    • Ethernet-Like MIB (RFC 3635)
    • Interface Group MIB (RFC 2863)
    • RMON (RFC 2819)
    • Bridge MIB (RFC 1493)
    • Bridge MIB Extension (RFC 2674)
    • Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
    • Supports IEEE 802.1ad Stacking VLAN
    • Supports 64 SVLANs
    • Supports 32 L2/IPv4 Multicast mappings to SVLAN
    • Supports 4 IEEE 802.3ad Link aggregation port groups
    • Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
    • Supports Loop Detection
    • Security Filtering
    • Disable learning for each port
    • Disable learning-table aging for each port
    • Drop unknown DA for each port
    • Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
    • Supports Realtek Green Ethernet features
    • Link-On Cable Length Power Saving
    • Link-Down Power Saving
    • Each port supports 3 parallel LED or scan LED outputs
    • Supports EEPROM SMI Slave interface to access configuration register
    • Supports 16K-byte EEPROM space for configuration
    • Integrated 8051 microprocessor
    • Supports Flash Interface
    • 25MHz crystal or 3.3V OSC input



    • Single-chip 8-port gigabit non-blocking switch architecture
    • Embedded 8-port 10/100/1000Base-T PHY
    • Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
    • Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
    • Supports 9216-byte jumbo packet length forwarding at wire speed
    • Supports Realtek Cable Test (RTCT) function
    • Supports 64-entry ACL Rules
    • Search keys support physical port, Layer2, Layer3, and Layer4 information
    • Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
    • Supports 5 types of user defined ACL rule format for 64 ACL rules
    • Optional per-port enable/disable of ACL function
    • Optional setting of per-port action to take when ACL mismatch
    • Supports IEEE 802.1Q VLAN
    • Supports 4K VLANs and 32 Extra Enhanced VLANs
    • Supports Un-tag definition in each VLAN
    • Supports VLAN policing and VLAN forwarding decision
    • Supports Port-based, Tag-based, and Protocol-based VLAN
    • Up to 4 Protocol-based VLAN entries
    • Supports per-port and per-VLAN egress VLAN tagging and un-tagging
    • Supports IVL, SVL, and IVL/SVL
    • Supports 8K-entry MAC address table with 4-way hash algorithm
    • Up to 8K L2/L3 Filtering Database
    • Supports Spanning Tree port behavior configuration
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
    • Supports IEEE 802.1x Access Control Protocol
    • Port-Based Access Control
    • MAC-Based Access Control
    • Guest VLAN
    • Supports Quality of Service (QoS)
    • Supports per port Input Bandwidth Control
    • Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
    • Eight Priority Queues per port
    • Per queue flow control
    • Min-Max Scheduling
    • Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
    • One leaky bucket to constrain the average packet rate of each queue
    • Supports rate limiting (64 shared meters, with 8kpbs granulation)
    • Supports RFC MIB Counter
    • MIB-II (RFC 1213)
    • Ethernet-Like MIB (RFC 3635)
    • Interface Group MIB (RFC 2863)
    • RMON (RFC 2819)
    • Bridge MIB (RFC 1493)
    • Bridge MIB Extension (RFC 2674)
    • Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
    • Supports IEEE 802.1ad Stacking VLAN
    • Supports 64 SVLANs
    • Supports 32 L2/IPv4 Multicast mappings to SVLAN
    • Supports 4 IEEE 802.3ad Link aggregation port groups
    • Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
    • Supports Loop Detection
    • Security Filtering
    • Disable learning for each port
    • Disable learning-table aging for each port
    • Drop unknown DA for each port
    • Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
    • Supports Realtek Green Ethernet features
    • Link-On Cable Length Power Saving
    • Link-Down Power Saving
    • Each port supports 3 parallel LED or scan LED outputs
    • Supports EEPROM SMI Slave interface to access configuration register
    • Supports 16K-byte EEPROM space for configuration
    • Integrated 8051 microprocessor
    • Supports Flash Interface
    • 25MHz crystal or 3.3V OSC input



    • Single-chip 8-port gigabit non-blocking switch architecture
    • Embedded 8-port 10/100/1000Base-T PHY
    • Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
    • Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
    • Supports 9216-byte jumbo packet length forwarding at wire speed
    • Supports Realtek Cable Test (RTCT) function
    • Supports 64-entry ACL Rules
    • Search keys support physical port, Layer2, Layer3, and Layer4 information
    • Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
    • Supports 5 types of user defined ACL rule format for 64 ACL rules
    • Optional per-port enable/disable of ACL function
    • Optional setting of per-port action to take when ACL mismatch
    • Supports IEEE 802.1Q VLAN
    • Supports 4K VLANs and 32 Extra Enhanced VLANs
    • Supports Un-tag definition in each VLAN
    • Supports VLAN policing and VLAN forwarding decision
    • Supports Port-based, Tag-based, and Protocol-based VLAN
    • Up to 4 Protocol-based VLAN entries
    • Supports per-port and per-VLAN egress VLAN tagging and un-tagging
    • Supports IVL, SVL, and IVL/SVL
    • Supports 8K-entry MAC address table with 4-way hash algorithm
    • Up to 8K L2/L3 Filtering Database
    • Supports Spanning Tree port behavior configuration
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
    • Supports IEEE 802.1x Access Control Protocol
    • Port-Based Access Control
    • MAC-Based Access Control
    • Guest VLAN
    • Supports Quality of Service (QoS)
    • Supports per port Input Bandwidth Control
    • Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
    • Eight Priority Queues per port
    • Per queue flow control
    • Min-Max Scheduling
    • Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
    • One leaky bucket to constrain the average packet rate of each queue
    • Supports rate limiting (64 shared meters, with 8kpbs granulation)
    • Supports RFC MIB Counter
    • MIB-II (RFC 1213)
    • Ethernet-Like MIB (RFC 3635)
    • Interface Group MIB (RFC 2863)
    • RMON (RFC 2819)
    • Bridge MIB (RFC 1493)
    • Bridge MIB Extension (RFC 2674)
    • Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
    • Supports IEEE 802.1ad Stacking VLAN
    • Supports 64 SVLANs
    • Supports 32 L2/IPv4 Multicast mappings to SVLAN
    • Supports 4 IEEE 802.3ad Link aggregation port groups
    • Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
    • Supports Loop Detection
    • Security Filtering
    • Disable learning for each port
    • Disable learning-table aging for each port
    • Drop unknown DA for each port
    • Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
    • Supports Realtek Green Ethernet features
    • Link-On Cable Length Power Saving
    • Link-Down Power Saving
    • Each port supports 3 parallel LED or scan LED outputs
    • Supports EEPROM SMI Slave interface to access configuration register
    • Supports 16K-byte EEPROM space for configuration
    • Integrated 8051 microprocessor
    • Supports Flash Interface
    • 25MHz crystal or 3.3V OSC input




    Specifikācija
    Portu skaits RJ-45 5
    Portu skaits RJ-45 4
    Portu skaits RJ-45 8
    Portu skaits RJ-45 3
    Weight0.1
    Gross weight0.12
    Description
    • Single-chip 8-port gigabit non-blocking switch architecture
    • Embedded 8-port 10/100/1000Base-T PHY
    • Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
    • Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
    • Supports 9216-byte jumbo packet length forwarding at wire speed
    • Supports Realtek Cable Test (RTCT) function
    • Supports 64-entry ACL Rules
    • Search keys support physical port, Layer2, Layer3, and Layer4 information
    • Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
    • Supports 5 types of user defined ACL rule format for 64 ACL rules
    • Optional per-port enable/disable of ACL function
    • Optional setting of per-port action to take when ACL mismatch
    • Supports IEEE 802.1Q VLAN
    • Supports 4K VLANs and 32 Extra Enhanced VLANs
    • Supports Un-tag definition in each VLAN
    • Supports VLAN policing and VLAN forwarding decision
    • Supports Port-based, Tag-based, and Protocol-based VLAN
    • Up to 4 Protocol-based VLAN entries
    • Supports per-port and per-VLAN egress VLAN tagging and un-tagging
    • Supports IVL, SVL, and IVL/SVL
    • Supports 8K-entry MAC address table with 4-way hash algorithm
    • Up to 8K L2/L3 Filtering Database
    • Supports Spanning Tree port behavior configuration
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
    • Supports IEEE 802.1x Access Control Protocol
    • Port-Based Access Control
    • MAC-Based Access Control
    • Guest VLAN
    • Supports Quality of Service (QoS)
    • Supports per port Input Bandwidth Control
    • Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
    • Eight Priority Queues per port
    • Per queue flow control
    • Min-Max Scheduling
    • Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
    • One leaky bucket to constrain the average packet rate of each queue
    • Supports rate limiting (64 shared meters, with 8kpbs granulation)
    • Supports RFC MIB Counter
    • MIB-II (RFC 1213)
    • Ethernet-Like MIB (RFC 3635)
    • Interface Group MIB (RFC 2863)
    • RMON (RFC 2819)
    • Bridge MIB (RFC 1493)
    • Bridge MIB Extension (RFC 2674)
    • Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
    • Supports IEEE 802.1ad Stacking VLAN
    • Supports 64 SVLANs
    • Supports 32 L2/IPv4 Multicast mappings to SVLAN
    • Supports 4 IEEE 802.3ad Link aggregation port groups
    • Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
    • Supports Loop Detection
    • Security Filtering
    • Disable learning for each port
    • Disable learning-table aging for each port
    • Drop unknown DA for each port
    • Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
    • Supports Realtek Green Ethernet features
    • Link-On Cable Length Power Saving
    • Link-Down Power Saving
    • Each port supports 3 parallel LED or scan LED outputs
    • Supports EEPROM SMI Slave interface to access configuration register
    • Supports 16K-byte EEPROM space for configuration
    • Integrated 8051 microprocessor
    • Supports Flash Interface
    • 25MHz crystal or 3.3V OSC input



    • Single-chip 8-port gigabit non-blocking switch architecture
    • Embedded 8-port 10/100/1000Base-T PHY
    • Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
    • Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
    • Supports 9216-byte jumbo packet length forwarding at wire speed
    • Supports Realtek Cable Test (RTCT) function
    • Supports 64-entry ACL Rules
    • Search keys support physical port, Layer2, Layer3, and Layer4 information
    • Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
    • Supports 5 types of user defined ACL rule format for 64 ACL rules
    • Optional per-port enable/disable of ACL function
    • Optional setting of per-port action to take when ACL mismatch
    • Supports IEEE 802.1Q VLAN
    • Supports 4K VLANs and 32 Extra Enhanced VLANs
    • Supports Un-tag definition in each VLAN
    • Supports VLAN policing and VLAN forwarding decision
    • Supports Port-based, Tag-based, and Protocol-based VLAN
    • Up to 4 Protocol-based VLAN entries
    • Supports per-port and per-VLAN egress VLAN tagging and un-tagging
    • Supports IVL, SVL, and IVL/SVL
    • Supports 8K-entry MAC address table with 4-way hash algorithm
    • Up to 8K L2/L3 Filtering Database
    • Supports Spanning Tree port behavior configuration
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
    • Supports IEEE 802.1x Access Control Protocol
    • Port-Based Access Control
    • MAC-Based Access Control
    • Guest VLAN
    • Supports Quality of Service (QoS)
    • Supports per port Input Bandwidth Control
    • Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
    • Eight Priority Queues per port
    • Per queue flow control
    • Min-Max Scheduling
    • Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
    • One leaky bucket to constrain the average packet rate of each queue
    • Supports rate limiting (64 shared meters, with 8kpbs granulation)
    • Supports RFC MIB Counter
    • MIB-II (RFC 1213)
    • Ethernet-Like MIB (RFC 3635)
    • Interface Group MIB (RFC 2863)
    • RMON (RFC 2819)
    • Bridge MIB (RFC 1493)
    • Bridge MIB Extension (RFC 2674)
    • Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
    • Supports IEEE 802.1ad Stacking VLAN
    • Supports 64 SVLANs
    • Supports 32 L2/IPv4 Multicast mappings to SVLAN
    • Supports 4 IEEE 802.3ad Link aggregation port groups
    • Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
    • Supports Loop Detection
    • Security Filtering
    • Disable learning for each port
    • Disable learning-table aging for each port
    • Drop unknown DA for each port
    • Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
    • Supports Realtek Green Ethernet features
    • Link-On Cable Length Power Saving
    • Link-Down Power Saving
    • Each port supports 3 parallel LED or scan LED outputs
    • Supports EEPROM SMI Slave interface to access configuration register
    • Supports 16K-byte EEPROM space for configuration
    • Integrated 8051 microprocessor
    • Supports Flash Interface
    • 25MHz crystal or 3.3V OSC input



    • Single-chip 8-port gigabit non-blocking switch architecture
    • Embedded 8-port 10/100/1000Base-T PHY
    • Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
    • Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
    • Supports 9216-byte jumbo packet length forwarding at wire speed
    • Supports Realtek Cable Test (RTCT) function
    • Supports 64-entry ACL Rules
    • Search keys support physical port, Layer2, Layer3, and Layer4 information
    • Actions support mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment
    • Supports 5 types of user defined ACL rule format for 64 ACL rules
    • Optional per-port enable/disable of ACL function
    • Optional setting of per-port action to take when ACL mismatch
    • Supports IEEE 802.1Q VLAN
    • Supports 4K VLANs and 32 Extra Enhanced VLANs
    • Supports Un-tag definition in each VLAN
    • Supports VLAN policing and VLAN forwarding decision
    • Supports Port-based, Tag-based, and Protocol-based VLAN
    • Up to 4 Protocol-based VLAN entries
    • Supports per-port and per-VLAN egress VLAN tagging and un-tagging
    • Supports IVL, SVL, and IVL/SVL
    • Supports 8K-entry MAC address table with 4-way hash algorithm
    • Up to 8K L2/L3 Filtering Database
    • Supports Spanning Tree port behavior configuration
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
    • Supports IEEE 802.1x Access Control Protocol
    • Port-Based Access Control
    • MAC-Based Access Control
    • Guest VLAN
    • Supports Quality of Service (QoS)
    • Supports per port Input Bandwidth Control
    • Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
    • Eight Priority Queues per port
    • Per queue flow control
    • Min-Max Scheduling
    • Strict Priority and Weighted Fair Queue (WFQ) to provide minimum bandwidth
    • One leaky bucket to constrain the average packet rate of each queue
    • Supports rate limiting (64 shared meters, with 8kpbs granulation)
    • Supports RFC MIB Counter
    • MIB-II (RFC 1213)
    • Ethernet-Like MIB (RFC 3635)
    • Interface Group MIB (RFC 2863)
    • RMON (RFC 2819)
    • Bridge MIB (RFC 1493)
    • Bridge MIB Extension (RFC 2674)
    • Supports Stacking VLAN and Port Isolation with 8 Enhanced Filtering Databases
    • Supports IEEE 802.1ad Stacking VLAN
    • Supports 64 SVLANs
    • Supports 32 L2/IPv4 Multicast mappings to SVLAN
    • Supports 4 IEEE 802.3ad Link aggregation port groups
    • Supports OAM and EEE LLDP (Energy Efficient Ethernet Link Layer Discovery Protocol
    • Supports Loop Detection
    • Security Filtering
    • Disable learning for each port
    • Disable learning-table aging for each port
    • Drop unknown DA for each port
    • Broadcast/Multicast/Unknown DA storm control protects system from attack by hackers
    • Supports Realtek Green Ethernet features
    • Link-On Cable Length Power Saving
    • Link-Down Power Saving
    • Each port supports 3 parallel LED or scan LED outputs
    • Supports EEPROM SMI Slave interface to access configuration register
    • Supports 16K-byte EEPROM space for configuration
    • Integrated 8051 microprocessor
    • Supports Flash Interface
    • 25MHz crystal or 3.3V OSC input
