    Ražotājs: LEVELONE

    Level One LevelOne Antenne omni-direktional innen/außen 2.4GHzDualBand


    €79,93 ar pvn

    Artikuls: ST08114672
    Preces kods: OAN-4058
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    WRL stadarti 802.11n
    WRL stadarti 802.11b
    WRL stadarti 802.11ac
    WRL stadarti 802.11g
    Status7 dienas
    Description

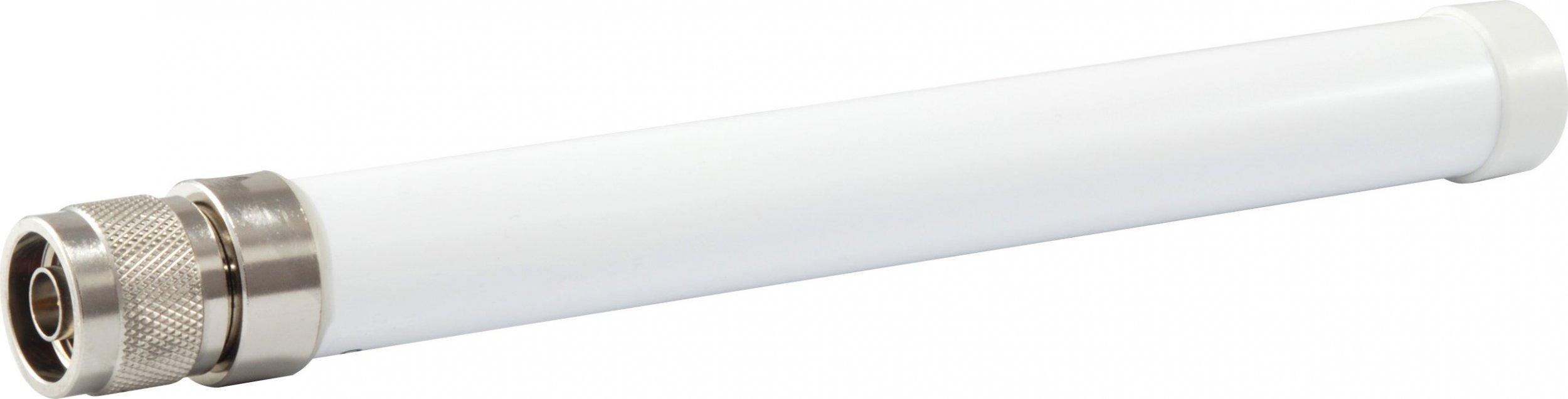

    The LevelOne OAN-4058 is an omni-directional antenna operating on the 2.4 GHz and 5GHz frequency that can be mounted either indoors or outdoors. The antenna’s gain value 2.4GHz/5GHz is 5dBi/8dBi , and if mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions.

    Antenna gain level (max) 8 dBi
    Frequency band 2.4 - 5 GHz
    Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Gain 5 / 8 dBi
    Antenna gain (2.4 GHz) 5 dBi
    Antenna gain (5 GHz) 8 dBi
    Impedance 50 Ω
    Horizontal beam width (2.4 GHz) 360°
    Vertical beam width (2.4 GHz) 51.7°
    Horizontal beam width (5 GHz) 360°
    Vertical beam width (5 GHz) 27.7°
    Antenna type Omni-directional antenna
    Antenna connector type N-type
    Connector gender Female
    Polarization Vertical polarization
    Voltage Standing Wave Ratio (VSWR) 2
    Country of origin Taiwan
    Product colour White
    Operating temperature (T-T) -30 - 60 °C
    Operating relative humidity (H-H) 0 - 95%
    Width 22 mm
    Depth 203 mm
    Height 22 mm
    Weight 860 g
    Package width 70 mm
    Package depth 60 mm
    Package height 265 mm
    Package weight 192 g
    Quantity per pack 1 pc(s)
    Package type Blister
    Harmonized System (HS) code 85177100
    Master (outer) case width 480 mm
    Master (outer) case length 560 mm
    Master (outer) case height 290 mm
    Master (outer) case gross weight 11 kg
    Master (outer) case volume 50 cm³
    Products per master (outer) case 50 pc(s)
