    Iepriekšējais produktsD-Link DGS-1210-52MP Manage...
    Nākamais produktsD-Link DGS-1510-20/E networ...
    Ražotājs: D-LINK

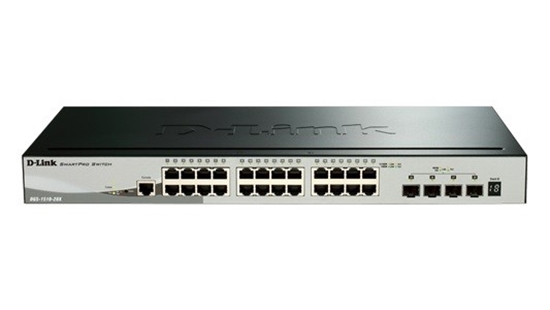

    D-Link DGS-1510 Managed L3 Gigabit Ethernet (10/100/1000) Black


    €433,47 ar pvn

    Artikuls: ST05641868
    Preces kods: DGS-1510-28X/E
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    PL
    LV

    Specifikācija
    Portu skaits RJ-45 24
    Īpašības RJ-45
    WRL stadarti 802.11b
    Portu skaits RJ-45 20
    Portu skaits RJ-45 52
    Portu skaits RJ-45 8
    Portu skaits RJ-45 28
    Switch classSMART
    ApplicationMedium and large companies
    Switch layerL3
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports24
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb ports4
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP+ ports4
    Number of QSFP+ portsNone
    Console portYes
    Forwarding modeStore-and-forward
    Throughput128 (Gigabity na sek.)
    Forwarding rate95.24 (Mpps)
    Memory buffer1.5 (MegaBajt)
    MAC address table size16384
    Support for Jumbo framesYes
    Jumbo frame size9.216 (Kilobajt)
    StackabilityYes
    Maximum number of units per stack6
    Number of VLAN groups4000
    VLAN
    • 802.1Q Tagged VLAN
    • 4K VLAN Groups
    • Configurable VID: 0~4094
    • GVRP
    • VLAN Wizard
    • Asymmetric VLAN
    • Auto Voice VLAN
    • Auto Surveillance VLAN 2.1
    • MAC-based VLAN
    • Protocol-based VLAN
    Supported protocols and standards
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Fast Ethernet
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    • 802.3ae 10 GbE
    • IEEE 802.3x Flow Control for Full-Duplex Mode
    QoS
    • 802.1p Quality of Service
    • Queue Handling
    • Strict Priority Queue (SPQ)
    • Weighted Round Robin (WRR)
    • Deficit Round Robin (DRR)
    • SPQ + WRR 8 queues per port
    • Bandwidth Control
    • Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)

    CoS based on:

    • 802.1p priority
    • VLAN
    • MAC address
    • Ether type
    • IP address
    • DSCP
    • Protocol type
    • TCP/UDP port number
    • DSCP of IPv6 Traffic Class
    • IPv6 flow label
    Security
    • Port Security
    • Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control
    • Dynamic ARP Inspection
    • D-Link Safeguard Engine
    • DHCP Server Screening
    • ARP Spoofing Prevention
    • Max. 64 entries SSH
    • Supports v2
    • Supports IPv4/IPv6 BPDU Attack Protection
    • DoS Attack Prevention
    • SSL
    • Supports v1/v2/v3
    • Supports IPv4/IPv6 Traffic Segmentation
    • IP-MAC-Port Binding
    • DHCP snooping
    • IP Source Guard
    • Dynamic ARP Inspection
    • IPv6 DHCP Guard
    • IPv6 RA Guard
    • IPv6 Snooping
    • IPv6 Source Guard
    • IPv6 ND Inspection
    Management, monitoring, configuration
    • Command Line Interface (CLI)
    • Telnet Server
    • TFTP Client
    • IPv6 Neighbor Discovery
    • Configurable MDI/MDIX
    • SNMP
    • Supports v1, v2c, v3
    • SNMP Trap
    • System Log
    • Max. 10,000 log entries
    • Debug command
    • Multiple images
    • DHCP Server
    • DHCP Client
    • Surveillance mode
    • DHCP Client
    • D-Link Network Assistant support
    • SNTP
    • ICMPv6
    • IPv4/v6 Dual Stack
    • DHCP Auto Configuration
    • RMON v1
    • LLDP, LLDP-MED
    • DHCP relay
    • Web-based GUI
    • NTP
    • Telnet client (supports CLI only)
    L2 features
    • MAC Address Table: Up to 16,384
    • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention Jumbo Frame up to 9,216 Bytes
    • IGMP Snooping
    • IGMP v1/v2 Snooping
    • IGMP v3 awareness
    • Supports 512 IGMP groups
    • Supports 128 static multicast addresses
    • IGMP per VLAN
    • Supports IGMP Snooping Querier
    • Host-based IGMP Snooping Fast Leave MLD Snooping
    • Supports MLD v1/v2
    • Supports 512 groups
    • Supports 128 Static Multicast Addresses
    • Per VLAN MLD Snooping
    • Host-based MLD Fast Leave
    • MLD Snooping Querier
    • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
    • 802.1s MSTP
    • Loopback Detection v4.07
    • 802.3ad Link Aggregation
    • Max. 32 groups per device/8 ports per group
    • Port Mirroring
    • Support 4 mirroring groups
    • One-to-One, Many-to-One
    • Supports Mirroring for Tx/Rx/Both
    • Multicast Filtering
    • Forwards all unregistered groups
    • Filters all unregistered groups
    • Ethernet Ring Protection Switching (ERPS)
    L3 features
    • ARP
    • 256 Static ARP
    • Supports Gratuitous ARP
    • IPv6 Neighbour Discovery (ND)
    • 16 IP interfaces
    • Default Routing
    • Static Routing
    • 64 IPv4 Static Route Entries
    • 32 IPv6 Static Route Entries
    • UDP helper
    Other functions

    Virtual Stacking Support:

    • D-Link Single IP Management
    • Up to 32 devices per virtual stack
    • Up to 20G stacking bandwidth

    Physical Stacking:

    • Supports Duplex Chain/Ring topology
    • Up to 40G stacking bandwidth full duplex
    • Up to 6 units per stack
    Chassis typeRack
    Fan Yes
    Power supply Internal
    Power consumption22.3 (Watt)
    Mean time between failures (MTBF)516593 (Hour)
    Power supply

    100 - 240 VAC 50/60 Hz
    Dimensions

    440 x 210 x 44 mm
    Weight2 (kilogram)
    Environment requirements
    • Temperatura pracy: -5 do 50 C (23 do 122 F)
    • Temperatura przechowywania: -20 do 70C (-4 do 158F)
    • Wilgotność pracy: 0% do 95% bez kondensacji
    • Wilgotność przechowywania: 0% do 95% bez kondensacji
    Certificates
    • CE
    • FCC
    • C-Tick
    • VCCI
    • BSMI
    • CCC
    • IPv6 Ready Logo Phase 2
    • cUL
    • CB
    DesignationCE+WEEE
    Width500
    Height340
    Depth90
    Weight2550
    Description

    Gigabitowe stakowalne zarządzalne przełączniki Smart Seria DGS-1510

    • Zarządzanie i bezpieczeństwo L2 z funkcjami L3
    • Wiersz poleceń CLI, port konsoli oraz graficzny interfejs użytkownika Web
    • 10G SFP+ stakowanie fizyczne
    • Trasy statyczne i MSTP
    • Dożywotnia gwarancja Lifetime-Limited po rejestracji

    Wiersz poleceń CLI
    Obsługuje standardowy i powszechnie używany interfejs wiersza poleceń do zarządzania systemem.

    Fizyczne stakowanie
    Fizyczne stakowanie do 6 jednostek w stos o łącznej liczbie 288 portów.

    Porty 10G uplink
    Dzięki portom SFP+ można łączyć się z innymi obszarami sieci z przepustowością 10G.

    Trasy statyczne
    Segregowanie ruchu L3 pomiędzy przełącznikami, bez względu na segemntację VLAN.

    Wiele obrazów i plików konfiuracyjnych
    Aktualizacje oprogramowania sprzętowego i testowanie konfiguracji bez jakiegokolwiek ryzyka utraty ustawień.

    Gwarancja Limited Lifetime
    Zarejestruj produkt, aby skorzystać z dożywotniej gwarancji Lifetime Limited.

    Seria DGS1510 to najnowsza generacja zarządzalnych przełączników Smart z portami światłowodowymi 10G SFP+ dla fizycznego stakowania lub uplinków. Połączenie wysokiej przepustowości, zgodnej z branżowym standardem konsoli CLI, sprawia, ze seria przełączników DGS1510 to idealne rozwiązanie dla firm z sektora MSP a także środowisk korporacyjnych.

    Pełen zestaw funkcji z zarządzaniem ruchem L3
    Serię przełączników DGS1510 wyposażono w zaawansowane narzędzia zarządzania siecią poprzez zgodną ze standardem branżowym konsolę CLI, port seryjny konsoli oraz the graficzny interfejs użytkownika w przeglądarce. Dzięki temu Twoja firma otrzymuje zyskuje możliwość korzystania z VLAN, protokołu multiple spanning tree protocol (MSTP), agregacji linków (LACP), tras statycznych, wielu obrazów firmware oraz wielu plików konfiguracyjnych.

    Z potężnymi funkcjami zabezpieczeń w postaci narzędzi IGMP snooping, access control lists, port security oraz D-Link Safeguard Engine, które chroni sieć przed złośliwymi atakami denial-of-service z rozgłaszania, multicast oraz unicast flooding, rodzina przełączników DGS-1510 to wszechstronne narzędzie dla sieciowych środowisk korporacyjnych.

    Światłowodowe porty Uplink
    Rozbudowa sieci dostosowana do potrzeb każdej firmy jest możliwa dzięki światłowodowym portom uplink z możliwością zaawansowanego zarządzania i funkcjom bezpieczeństwa.

    D-View 7: bezpłatny system do projektowania i zarządzania siecią
    Bezpłatny system Network Assistant (DNA) D-Linka dostarcza informacji o wszystkich podłączonych urządzeniach i przyspiesza pierwszą konfigurację. Bezpłatny system zarządzania siecią D-View 7 jest dostarczany z licencją na 25 węzłów i 2 sondy oraz pełnym dostępem do narzędzi do zarządzania. Opcjonalna aktualizacja licencji umożliwia rozszerzenie sieci i możliwości analizy.

    Oszczędność energii
    Przełączniki z rodziny DGS-1510 z technologią D-Link Green umożliwiają oszczędzanie energii bez wpływu na wydajność działania lub funkcjonalność.
    Switch typeManaged
    Switch layerL3
    Quality of Service (QoS) supportYes
    Basic switching RJ-45 Ethernet ports quantity24
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP+ module slots quantity4
    Power connectorDC-in jack
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
    10G supportYes
    Full duplexYes
    Auto MDI/MDI-XYes
    MAC address table16000 entries
    Switching capacity92 Gbit/s
    Throughput68.45 Mpps
    Store-and-forwardYes
    Number of static routes512
    Jumbo frames supportYes
    Packet buffer memory1.5 MB
    Access Control List (ACL)Yes
    MAC address filteringYes
    Static port securityYes
    SSH/SSL supportYes
    Rack mountingYes
    StackableYes
    Product colourBlack
    LED indicatorsYes
    SafetycUL, CB
    CertificationCE, FCC, C-Tick, VCCI, BSMI, CCC
    Noise level47.5 dB
    Shipping (inner) case height38.3 cm
    Shipping (inner) case width29.6 cm
    Shipping (inner) case length52.9 cm
    Shipping (inner) case net weight7.49 kg
    Products per shipping (inner) case3 pc(s)
    Pallet gross weight (air)471.4 kg
    Master (outer) cases per pallet (air)40 pc(s)
    Products per pallet (air)120 pc(s)
    Pallet gross length110 cm
    Pallet gross width120 cm
    Pallet height (air)2.05 m
    Pallet gross weight (sea)471.4 kg
    Master (outer) cases per pallet (sea)40 pc(s)
    Products per pallet (sea)120 pc(s)
    Pallet height (sea)2.05 m
    Shipping (inner) case gross weight11.3 kg
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (typical)24 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)-5 - 50 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Heat dissipation72.292 BTU/h
    Width440 mm
    Depth210 mm
    Height44 mm
    Weight2 kg
    Package width348 mm
    Package depth511 mm
    Package height91 mm
    Package weight3.47 kg
    Harmonized System (HS) code85176990
    Description
    D-Link DGS-1510. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
    Status7 dienas
    Description
    The DGS-1510 Series Gigabit Stackable Smart Managed Switches consists of:

    - DGS-1510-20: 20-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)
    - DGS-1510-28: 28-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)
    - DGS-1510-28X: 28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+ (smart fans)
    - DGS-1510-28P: 28-Port Gigabit Stackable PoE Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (24 x PoE ports, smart fans)
    - DGS-1510-52: 52-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)

    The DGS-1510 Series is D-Link’s latest generation of Smart Managed switches with 10G port connectivity, making them ideal for deployment in SME/SMB aggregation environments. The DGS-1510 Series provides a reliable and scalable interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, with additional fibre ports for physical stacking and / or uplinks.

    The DGS-1510 Series PoE-enabled switches are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1510-28P 24-port PoE Switch supports up to 30W of power output giving you flexibility in power allocation for a variety of powered devices. This enables you to scale your operations to meet business growth and incorporate new technologies all with affordable installation costs.

    10G SFP+ Stacking/Uplink Ports
    Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. 6 units or 288 Gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency. Users can mix from any of the DGS-1510 Series in a single stack to allow simultaneous and easy configuration, management and troubleshooting. With 20Gbps full duplex, the DGS-1510 Series offers 10G connectivity to core networks as well as servers with 10G capability while maintaining high performance and minimal impact to the data transfer rates.

    Layer 3 Traffic Management
    The DGS-1510 Series provides static route, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage external traffic and security.

    Extensive Layer 2 Features
    The DGS-1510 Series switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shuts down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can quickly discover the type of error on cables as well as determine cable quality.

    Traffic Classification & QoS
    The DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart Switches. This technology consolidates data and surveillance video transmission through a single Smart Managed switch, sparing businesses the expense of maintaining expensive dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with per flow Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might require high priority.

    Securing Your Network
    D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by malicious attacks. The switches also support 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers.

    The DGS-1510 Series has both MAC & Web-based Access Control supported, these provide a user friendly way to alleviate deployment time, giving customers an effective and efficient authentication choice without the complexity in securing their networks.

    Additionally, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by screening ingress traffic based on any user defined content. The DGS-1510 Series includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

    Switch type Managed
    Switch layer L3
    Quality of Service (QoS) support Jā
    Basic switching RJ-45 Ethernet ports quantity 24
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP+ module slots quantity 4
    Power connector DC-in jack
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
    10G support Jā
    Full duplex Jā
    Auto MDI/MDI-X Jā
    MAC address table 16000 entries
    Switching capacity 92 Gbit/s
    Throughput 68.45 Mpps
    Store-and-forward Jā
    Number of static routes 512
    Jumbo frames support Jā
    Packet buffer memory 1.5 MB
    Access Control List (ACL) Jā
    MAC address filtering Jā
    Static port security Jā
    SSH/SSL support Jā
    Rack mounting Jā
    Stackable Jā
    Product colour Black
    LED indicators Jā
    Safety cUL, CB
    Certification CE, FCC, C-Tick, VCCI, BSMI, CCC
    Noise level 47.5 dB
    Shipping (inner) case height 38.3 cm
    Shipping (inner) case width 29.6 cm
    Shipping (inner) case length 52.9 cm
    Shipping (inner) case net weight 7.49 kg
    Products per shipping (inner) case 3 pc(s)
    Pallet gross weight (air) 471.4 kg
    Master (outer) cases per pallet (air) 40 pc(s)
    Products per pallet (air) 120 pc(s)
    Pallet gross length 110 cm
    Pallet gross width 120 cm
    Pallet height (air) 2.05 m
    Pallet gross weight (sea) 471.4 kg
    Master (outer) cases per pallet (sea) 40 pc(s)
    Products per pallet (sea) 120 pc(s)
    Pallet height (sea) 2.05 m
    Shipping (inner) case gross weight 11.3 kg
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (typical) 24 W
    Power over Ethernet (PoE) Nē
    Operating temperature (T-T) -5 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 0 - 95%
    Storage relative humidity (H-H) 0 - 95%
    Heat dissipation 72.292 BTU/h
    Width 440 mm
    Depth 210 mm
    Height 44 mm
    Weight 2 kg
    Package width 348 mm
    Package depth 511 mm
    Package height 91 mm
    Package weight 3.47 kg
    Harmonized System (HS) code 85176990
    Gross depth (mm)346.00
    Gross height (mm)104.00
    Gross weight4.60
    Gross width (mm)346.00
    Net weight1.90
    Packing quantity1.00
    Paper/Pasteboard2690.00
    Plastic (No PET)10.00
    Tare weight (kg)2.70
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:4:2017-04-01
    Gross depth master carton310
    Gross width master carton210
    Gross height master carton225
    Net weight master carton3
    Tare weight master carton0.249
    PET4
    Producer product nameDGS-1510-28X/E
    Producer product familyStackable Smart Managed Switch with 10G Uplinks
    POENo
    Predominant port type10/100/1000 Mbps (RJ-45)
    Gigabit Ethernet (copper) ports quantity24
    Switch typeManaged L2
    Form factorRackmountable
    Palette Qty69
    ProducerD-Link
    Warranty60

    Specifikācija
    Portu skaits RJ-45 24
    Īpašības RJ-45
    WRL stadarti 802.11b
    Portu skaits RJ-45 20
    Portu skaits RJ-45 52
    Portu skaits RJ-45 8
    Portu skaits RJ-45 28
    Switch classSMART
    ApplicationMedium and large companies
    Switch layerL3
    Switch layerL2
    Network architectureGigabitEthernet
    Number of 10/100 Mbps portsNone
    Number of 10/100/1000 Mbps ports24
    10/100/1000/2500 Mbps portsNone
    Number of 10Gb ports4
    Number of PoE+ portsNone
    Number of COMBO portsNone
    Number of SFP+ ports4
    Number of QSFP+ portsNone
    Console portYes
    Forwarding modeStore-and-forward
    Throughput128 (Gigabity na sek.)
    Forwarding rate95.24 (Mpps)
    Memory buffer1.5 (MegaBajt)
    MAC address table size16384
    Support for Jumbo framesYes
    Jumbo frame size9.216 (Kilobajt)
    StackabilityYes
    Maximum number of units per stack6
    Number of VLAN groups4000
    VLAN
    • 802.1Q Tagged VLAN
    • 4K VLAN Groups
    • Configurable VID: 0~4094
    • GVRP
    • VLAN Wizard
    • Asymmetric VLAN
    • Auto Voice VLAN
    • Auto Surveillance VLAN 2.1
    • MAC-based VLAN
    • Protocol-based VLAN
    Supported protocols and standards
    • IEEE 802.3 10BASE-T Ethernet
    • IEEE 802.3u 100BASE-TX Fast Ethernet
    • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    • 802.3ae 10 GbE
    • IEEE 802.3x Flow Control for Full-Duplex Mode
    QoS
    • 802.1p Quality of Service
    • Queue Handling
    • Strict Priority Queue (SPQ)
    • Weighted Round Robin (WRR)
    • Deficit Round Robin (DRR)
    • SPQ + WRR 8 queues per port
    • Bandwidth Control
    • Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)

    CoS based on:

    • 802.1p priority
    • VLAN
    • MAC address
    • Ether type
    • IP address
    • DSCP
    • Protocol type
    • TCP/UDP port number
    • DSCP of IPv6 Traffic Class
    • IPv6 flow label
    Security
    • Port Security
    • Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control
    • Dynamic ARP Inspection
    • D-Link Safeguard Engine
    • DHCP Server Screening
    • ARP Spoofing Prevention
    • Max. 64 entries SSH
    • Supports v2
    • Supports IPv4/IPv6 BPDU Attack Protection
    • DoS Attack Prevention
    • SSL
    • Supports v1/v2/v3
    • Supports IPv4/IPv6 Traffic Segmentation
    • IP-MAC-Port Binding
    • DHCP snooping
    • IP Source Guard
    • Dynamic ARP Inspection
    • IPv6 DHCP Guard
    • IPv6 RA Guard
    • IPv6 Snooping
    • IPv6 Source Guard
    • IPv6 ND Inspection
    Management, monitoring, configuration
    • Command Line Interface (CLI)
    • Telnet Server
    • TFTP Client
    • IPv6 Neighbor Discovery
    • Configurable MDI/MDIX
    • SNMP
    • Supports v1, v2c, v3
    • SNMP Trap
    • System Log
    • Max. 10,000 log entries
    • Debug command
    • Multiple images
    • DHCP Server
    • DHCP Client
    • Surveillance mode
    • DHCP Client
    • D-Link Network Assistant support
    • SNTP
    • ICMPv6
    • IPv4/v6 Dual Stack
    • DHCP Auto Configuration
    • RMON v1
    • LLDP, LLDP-MED
    • DHCP relay
    • Web-based GUI
    • NTP
    • Telnet client (supports CLI only)
    L2 features
    • MAC Address Table: Up to 16,384
    • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention Jumbo Frame up to 9,216 Bytes
    • IGMP Snooping
    • IGMP v1/v2 Snooping
    • IGMP v3 awareness
    • Supports 512 IGMP groups
    • Supports 128 static multicast addresses
    • IGMP per VLAN
    • Supports IGMP Snooping Querier
    • Host-based IGMP Snooping Fast Leave MLD Snooping
    • Supports MLD v1/v2
    • Supports 512 groups
    • Supports 128 Static Multicast Addresses
    • Per VLAN MLD Snooping
    • Host-based MLD Fast Leave
    • MLD Snooping Querier
    • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
    • 802.1s MSTP
    • Loopback Detection v4.07
    • 802.3ad Link Aggregation
    • Max. 32 groups per device/8 ports per group
    • Port Mirroring
    • Support 4 mirroring groups
    • One-to-One, Many-to-One
    • Supports Mirroring for Tx/Rx/Both
    • Multicast Filtering
    • Forwards all unregistered groups
    • Filters all unregistered groups
    • Ethernet Ring Protection Switching (ERPS)
    L3 features
    • ARP
    • 256 Static ARP
    • Supports Gratuitous ARP
    • IPv6 Neighbour Discovery (ND)
    • 16 IP interfaces
    • Default Routing
    • Static Routing
    • 64 IPv4 Static Route Entries
    • 32 IPv6 Static Route Entries
    • UDP helper
    Other functions

    Virtual Stacking Support:

    • D-Link Single IP Management
    • Up to 32 devices per virtual stack
    • Up to 20G stacking bandwidth

    Physical Stacking:

    • Supports Duplex Chain/Ring topology
    • Up to 40G stacking bandwidth full duplex
    • Up to 6 units per stack
    Chassis typeRack
    Fan Yes
    Power supply Internal
    Power consumption22.3 (Watt)
    Mean time between failures (MTBF)516593 (Hour)
    Power supply

    100 - 240 VAC 50/60 Hz
    Dimensions

    440 x 210 x 44 mm
    Weight2 (kilogram)
    Environment requirements
    • Temperatura pracy: -5 do 50 C (23 do 122 F)
    • Temperatura przechowywania: -20 do 70C (-4 do 158F)
    • Wilgotność pracy: 0% do 95% bez kondensacji
    • Wilgotność przechowywania: 0% do 95% bez kondensacji
    Certificates
    • CE
    • FCC
    • C-Tick
    • VCCI
    • BSMI
    • CCC
    • IPv6 Ready Logo Phase 2
    • cUL
    • CB
    DesignationCE+WEEE
    Width500
    Height340
    Depth90
    Weight2550
    Description

    Gigabitowe stakowalne zarządzalne przełączniki Smart Seria DGS-1510

    • Zarządzanie i bezpieczeństwo L2 z funkcjami L3
    • Wiersz poleceń CLI, port konsoli oraz graficzny interfejs użytkownika Web
    • 10G SFP+ stakowanie fizyczne
    • Trasy statyczne i MSTP
    • Dożywotnia gwarancja Lifetime-Limited po rejestracji

    Wiersz poleceń CLI
    Obsługuje standardowy i powszechnie używany interfejs wiersza poleceń do zarządzania systemem.

    Fizyczne stakowanie
    Fizyczne stakowanie do 6 jednostek w stos o łącznej liczbie 288 portów.

    Porty 10G uplink
    Dzięki portom SFP+ można łączyć się z innymi obszarami sieci z przepustowością 10G.

    Trasy statyczne
    Segregowanie ruchu L3 pomiędzy przełącznikami, bez względu na segemntację VLAN.

    Wiele obrazów i plików konfiuracyjnych
    Aktualizacje oprogramowania sprzętowego i testowanie konfiguracji bez jakiegokolwiek ryzyka utraty ustawień.

    Gwarancja Limited Lifetime
    Zarejestruj produkt, aby skorzystać z dożywotniej gwarancji Lifetime Limited.

    Seria DGS1510 to najnowsza generacja zarządzalnych przełączników Smart z portami światłowodowymi 10G SFP+ dla fizycznego stakowania lub uplinków. Połączenie wysokiej przepustowości, zgodnej z branżowym standardem konsoli CLI, sprawia, ze seria przełączników DGS1510 to idealne rozwiązanie dla firm z sektora MSP a także środowisk korporacyjnych.

    Pełen zestaw funkcji z zarządzaniem ruchem L3
    Serię przełączników DGS1510 wyposażono w zaawansowane narzędzia zarządzania siecią poprzez zgodną ze standardem branżowym konsolę CLI, port seryjny konsoli oraz the graficzny interfejs użytkownika w przeglądarce. Dzięki temu Twoja firma otrzymuje zyskuje możliwość korzystania z VLAN, protokołu multiple spanning tree protocol (MSTP), agregacji linków (LACP), tras statycznych, wielu obrazów firmware oraz wielu plików konfiguracyjnych.

    Z potężnymi funkcjami zabezpieczeń w postaci narzędzi IGMP snooping, access control lists, port security oraz D-Link Safeguard Engine, które chroni sieć przed złośliwymi atakami denial-of-service z rozgłaszania, multicast oraz unicast flooding, rodzina przełączników DGS-1510 to wszechstronne narzędzie dla sieciowych środowisk korporacyjnych.

    Światłowodowe porty Uplink
    Rozbudowa sieci dostosowana do potrzeb każdej firmy jest możliwa dzięki światłowodowym portom uplink z możliwością zaawansowanego zarządzania i funkcjom bezpieczeństwa.

    D-View 7: bezpłatny system do projektowania i zarządzania siecią
    Bezpłatny system Network Assistant (DNA) D-Linka dostarcza informacji o wszystkich podłączonych urządzeniach i przyspiesza pierwszą konfigurację. Bezpłatny system zarządzania siecią D-View 7 jest dostarczany z licencją na 25 węzłów i 2 sondy oraz pełnym dostępem do narzędzi do zarządzania. Opcjonalna aktualizacja licencji umożliwia rozszerzenie sieci i możliwości analizy.

    Oszczędność energii
    Przełączniki z rodziny DGS-1510 z technologią D-Link Green umożliwiają oszczędzanie energii bez wpływu na wydajność działania lub funkcjonalność.
    Switch typeManaged
    Switch layerL3
    Quality of Service (QoS) supportYes
    Basic switching RJ-45 Ethernet ports quantity24
    Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
    SFP+ module slots quantity4
    Power connectorDC-in jack
    Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
    10G supportYes
    Full duplexYes
    Auto MDI/MDI-XYes
    MAC address table16000 entries
    Switching capacity92 Gbit/s
    Throughput68.45 Mpps
    Store-and-forwardYes
    Number of static routes512
    Jumbo frames supportYes
    Packet buffer memory1.5 MB
    Access Control List (ACL)Yes
    MAC address filteringYes
    Static port securityYes
    SSH/SSL supportYes
    Rack mountingYes
    StackableYes
    Product colourBlack
    LED indicatorsYes
    SafetycUL, CB
    CertificationCE, FCC, C-Tick, VCCI, BSMI, CCC
    Noise level47.5 dB
    Shipping (inner) case height38.3 cm
    Shipping (inner) case width29.6 cm
    Shipping (inner) case length52.9 cm
    Shipping (inner) case net weight7.49 kg
    Products per shipping (inner) case3 pc(s)
    Pallet gross weight (air)471.4 kg
    Master (outer) cases per pallet (air)40 pc(s)
    Products per pallet (air)120 pc(s)
    Pallet gross length110 cm
    Pallet gross width120 cm
    Pallet height (air)2.05 m
    Pallet gross weight (sea)471.4 kg
    Master (outer) cases per pallet (sea)40 pc(s)
    Products per pallet (sea)120 pc(s)
    Pallet height (sea)2.05 m
    Shipping (inner) case gross weight11.3 kg
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (typical)24 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)-5 - 50 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Heat dissipation72.292 BTU/h
    Width440 mm
    Depth210 mm
    Height44 mm
    Weight2 kg
    Package width348 mm
    Package depth511 mm
    Package height91 mm
    Package weight3.47 kg
    Harmonized System (HS) code85176990
    Description
    D-Link DGS-1510. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
    Status7 dienas
    Description
    The DGS-1510 Series Gigabit Stackable Smart Managed Switches consists of:

    - DGS-1510-20: 20-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)
    - DGS-1510-28: 28-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)
    - DGS-1510-28X: 28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+ (smart fans)
    - DGS-1510-28P: 28-Port Gigabit Stackable PoE Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (24 x PoE ports, smart fans)
    - DGS-1510-52: 52-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)

    The DGS-1510 Series is D-Link’s latest generation of Smart Managed switches with 10G port connectivity, making them ideal for deployment in SME/SMB aggregation environments. The DGS-1510 Series provides a reliable and scalable interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, with additional fibre ports for physical stacking and / or uplinks.

    The DGS-1510 Series PoE-enabled switches are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1510-28P 24-port PoE Switch supports up to 30W of power output giving you flexibility in power allocation for a variety of powered devices. This enables you to scale your operations to meet business growth and incorporate new technologies all with affordable installation costs.

    10G SFP+ Stacking/Uplink Ports
    Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. 6 units or 288 Gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency. Users can mix from any of the DGS-1510 Series in a single stack to allow simultaneous and easy configuration, management and troubleshooting. With 20Gbps full duplex, the DGS-1510 Series offers 10G connectivity to core networks as well as servers with 10G capability while maintaining high performance and minimal impact to the data transfer rates.

    Layer 3 Traffic Management
    The DGS-1510 Series provides static route, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage external traffic and security.

    Extensive Layer 2 Features
    The DGS-1510 Series switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shuts down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can quickly discover the type of error on cables as well as determine cable quality.

    Traffic Classification & QoS
    The DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart Switches. This technology consolidates data and surveillance video transmission through a single Smart Managed switch, sparing businesses the expense of maintaining expensive dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with per flow Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might require high priority.

    Securing Your Network
    D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by malicious attacks. The switches also support 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers.

    The DGS-1510 Series has both MAC & Web-based Access Control supported, these provide a user friendly way to alleviate deployment time, giving customers an effective and efficient authentication choice without the complexity in securing their networks.

    Additionally, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by screening ingress traffic based on any user defined content. The DGS-1510 Series includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

    Switch type Managed
    Switch layer L3
    Quality of Service (QoS) support Jā
    Basic switching RJ-45 Ethernet ports quantity 24
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP+ module slots quantity 4
    Power connector DC-in jack
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
    10G support Jā
    Full duplex Jā
    Auto MDI/MDI-X Jā
    MAC address table 16000 entries
    Switching capacity 92 Gbit/s
    Throughput 68.45 Mpps
    Store-and-forward Jā
    Number of static routes 512
    Jumbo frames support Jā
    Packet buffer memory 1.5 MB
    Access Control List (ACL) Jā
    MAC address filtering Jā
    Static port security Jā
    SSH/SSL support Jā
    Rack mounting Jā
    Stackable Jā
    Product colour Black
    LED indicators Jā
    Safety cUL, CB
    Certification CE, FCC, C-Tick, VCCI, BSMI, CCC
    Noise level 47.5 dB
    Shipping (inner) case height 38.3 cm
    Shipping (inner) case width 29.6 cm
    Shipping (inner) case length 52.9 cm
    Shipping (inner) case net weight 7.49 kg
    Products per shipping (inner) case 3 pc(s)
    Pallet gross weight (air) 471.4 kg
    Master (outer) cases per pallet (air) 40 pc(s)
    Products per pallet (air) 120 pc(s)
    Pallet gross length 110 cm
    Pallet gross width 120 cm
    Pallet height (air) 2.05 m
    Pallet gross weight (sea) 471.4 kg
    Master (outer) cases per pallet (sea) 40 pc(s)
    Products per pallet (sea) 120 pc(s)
    Pallet height (sea) 2.05 m
    Shipping (inner) case gross weight 11.3 kg
    AC input voltage 100 - 240 V
    AC input frequency 50 - 60 Hz
    Power consumption (typical) 24 W
    Power over Ethernet (PoE) Nē
    Operating temperature (T-T) -5 - 50 °C
    Storage temperature (T-T) -20 - 70 °C
    Operating relative humidity (H-H) 0 - 95%
    Storage relative humidity (H-H) 0 - 95%
    Heat dissipation 72.292 BTU/h
    Width 440 mm
    Depth 210 mm
    Height 44 mm
    Weight 2 kg
    Package width 348 mm
    Package depth 511 mm
    Package height 91 mm
    Package weight 3.47 kg
    Harmonized System (HS) code 85176990
    Gross depth (mm)346.00
    Gross height (mm)104.00
    Gross weight4.60
    Gross width (mm)346.00
    Net weight1.90
    Packing quantity1.00
    Paper/Pasteboard2690.00
    Plastic (No PET)10.00
    Tare weight (kg)2.70
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:4:2017-04-01
    Gross depth master carton310
    Gross width master carton210
    Gross height master carton225
    Net weight master carton3
    Tare weight master carton0.249
    PET4
    Producer product nameDGS-1510-28X/E
    Producer product familyStackable Smart Managed Switch with 10G Uplinks
    POENo
    Predominant port type10/100/1000 Mbps (RJ-45)
    Gigabit Ethernet (copper) ports quantity24
    Switch typeManaged L2
    Form factorRackmountable
    Palette Qty69
    ProducerD-Link
    Warranty60
    Nesen skatītās preces
    Informācija
    Klientu serviss
    Mans profils
    Sazinies ar mums
    • Ogre, Mālkalnes prospekts 5-18, LV-5003
    • (+371) 22111444, (+371) 22500002
    Mūsu partneri
    Autortiesības © 2025 Tera.lv. Visas tiesības aizsargātas.
