Manufacturer: ASROCK

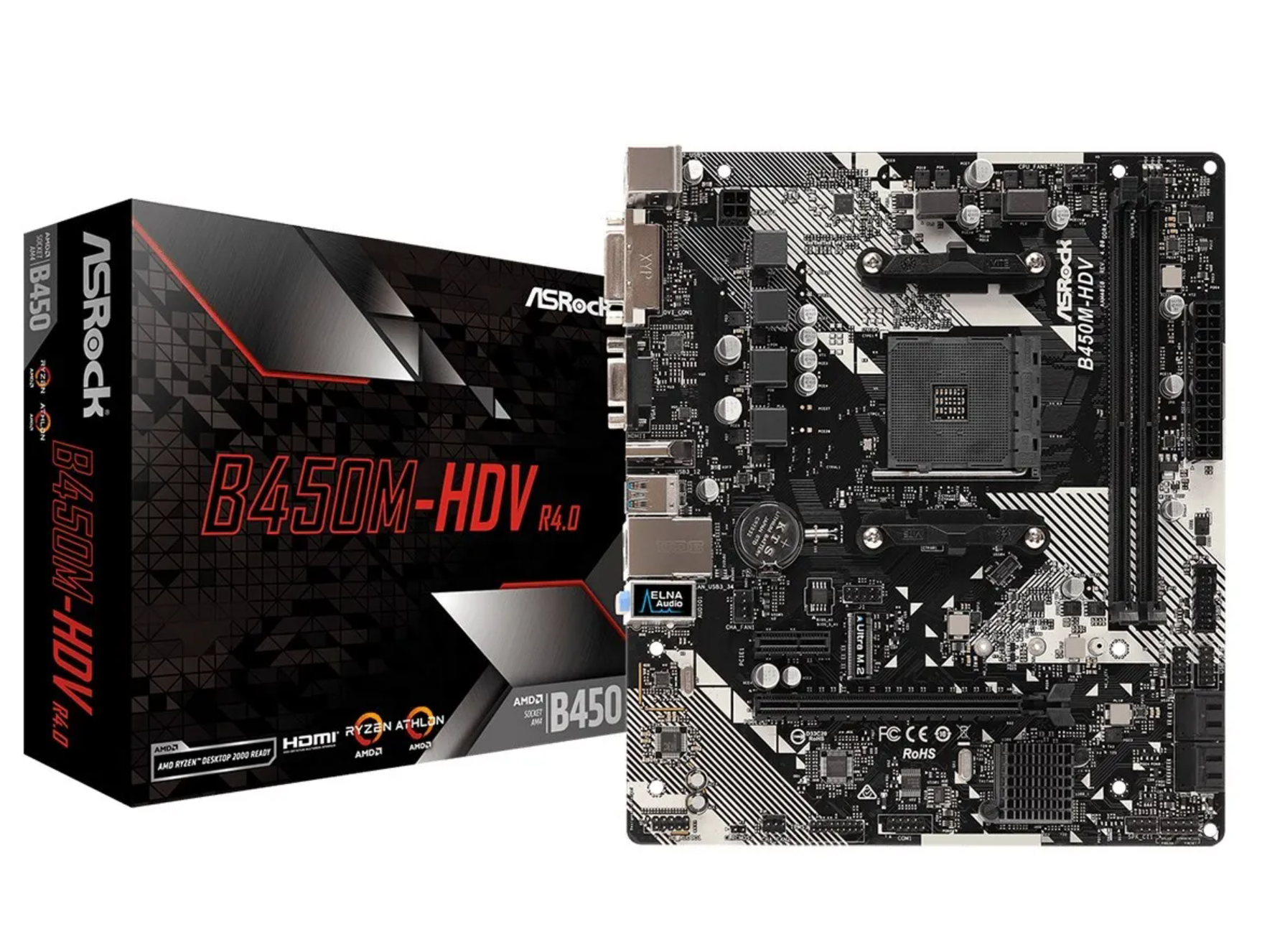

ASROCK B450M-HDV R4.0 AM4 Socket

€59.93 incl tax

SKU: ST03881958

Manufacturer part number: B450M-HDV R4.0

Manufacturer Homepage

Warranty: 24 months

Stock *

Stock	Delivery	Quantity	Price
PL	8 - 15 days	27	€59.93 incl tax
PL	9 - 12 days	30	€63.19 incl tax

Qty:

Specifications

Products specifications

Video interface	DVI
Video interface	D-Sub
Memory type	DDR4
Video interface	HDMI
CPU Socket	Socket AM4
Form Factor	mATX

Model	B450M-HDV R4.0
CPU socket	Socket AM4
Processor family	AMD Ryzen
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD Promontory B450
Memory type	DDR4
Number of DDR4 slots	2
Memory bus frequency	3200 MHz
Memory bus frequency	2933 MHz
Memory bus frequency	2667 MHz
Memory bus frequency	2133 MHz
Memory bus frequency	2400 MHz
Max memory size	32 (GigaBajt)
Expansion slots	1 x PCIe 2.0 x 1
Expansion slots	1 x PCIe 3.0 x 16
Max. number of SATA devices	4
Max. number of ATA devices	0
RAID	Yes
Detailed data on disk/drive interfaces	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4
Graphics	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 1.4 with DVI-D and HDMI Ports Supports 4K Ultra HD (UHD) playback with HDMI Port
Sound card	7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection ELNA Audio Caps
Network interface	1 x 10/100/1000 Mbit/s
Network interface	PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
USB ports at back panel	6
USB ports on motherboard	6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	2 x USB 2.0
External connectors	4 x USB 3.0
External connectors	1 x D-Sub
External connectors	1 x DVI-D
External connectors	1 x PS/2 Keyboard/MouseCombo
Onboard connectors	1 x USB 3.0 header
Onboard connectors	1 x 4pin 12V power
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	2 x USB 2.0/1.1 header
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	1 x 4pin Chassis fan
Onboard connectors	1 x 3pin Chassis fan
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x Serial port header
Onboard connectors	1 x TPM header
Onboard connectors	1 x Chassis intrusion header
Special functions	Software ASRock A-Tuning ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock Instant Flash ASRock Easy RAID Installer
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support DRAM Voltage multi-adjustment
Form factor	micro ATX
Dimensions	23.0 cm x 20.1 cm
Accessories included	Przewodnik użytkownika Płyta CD I/O Shield Kabel SATA Data x 2 Montaż M.2 x 2
Supported operating systems	Windows 10
Software	Sterowniki, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Designation	CE+WEEE
Width	240
Height	275
Depth	58
Weight	743
Description
Description	Płyta główna B450M-HDV R4.0 AM4 2DDR4 VGA/DVI/HDMI/M.2 uATX

Description	ASROCK B450M-HDV R4.0 AM4 Socket
VatType	VAT
Weight	0.744000000
Height	59.000000000
Width	238.000000000
Length	275.000000000
Description
ASROCK B450M-HDV R4.0 AM4 Socket

Gross depth (mm)	382.00
Gross height (mm)	320.00
Gross weight	1.14
Gross width (mm)	94.00
Net weight	0.67
Packing quantity	1.00
Paper/Pasteboard	380.00
Plastic (No PET)	95.00
Tare weight (kg)	0.48
Volume (m3)	0.01
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
TI weight (kg)	0.05
Classification of battery	CL126:NE:2016-12-09
Composition of battery	CL127:KT:2016-12-09
Type of battery	Accumulator
Memory slots	2
Chipset	AMD Promontory B450
Producer product name	B450M-HDV R4.0
Supported hard disk drive interfaces	SATA, M.2
Compatible processor series	Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Processor family	AMD
Motherboard form factor	Micro ATX
Supported memory types	DDR4 DIMM
Processor socket	AM4
Number of SATA connectors	4
Gross depth master carton	286
Gross width master carton	380
Gross height master carton	370
Net weight master carton	9.665
Tare weight master carton	0.684
Palette Qty	150
Producer	ASRock
Warranty	24
