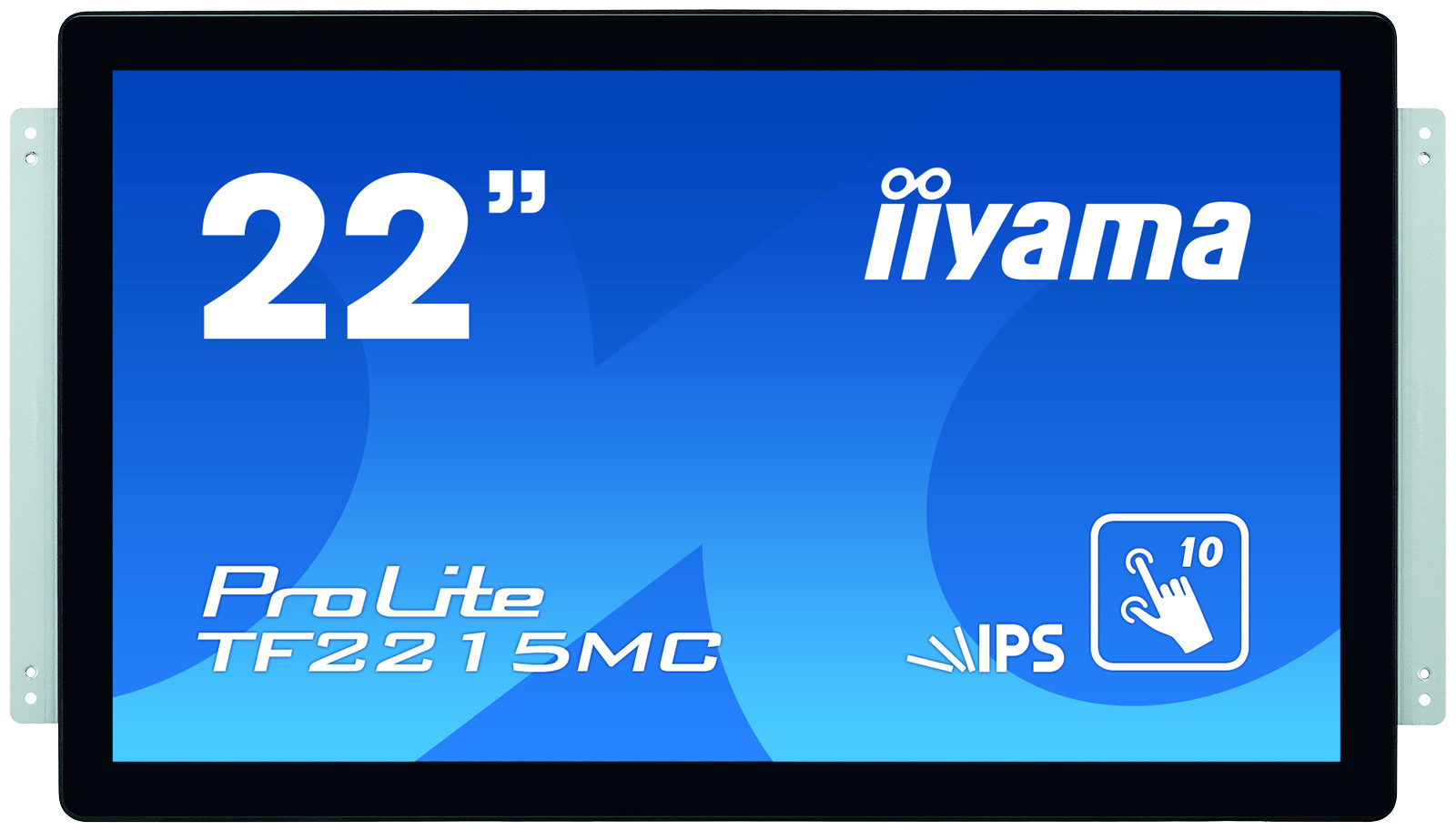

    Manufacturer: IIYAMA

    22" PCAP, Bezel Free 10P Touch Screen, 1920 x 1080, Anti-Fingerprint coating, 350cd/m², 1000:1, 14ms, Thru Glass, External Power Adapter, VESA 100, MultiTouch only with supported OS, IP65, 7H glass


    €639.17 incl tax

    SKU: ST04117665
    Manufacturer part number: TF2215MC-B2
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    Video interface D-Sub
    Video interface HDMI
    Video interface DisplayPort
    Screen size 22"
    Maximum resolution 1920 x 1080 (Full HD)
    Color Black
    Display diagonal54.6 cm (21.5")
    Display resolution1920 x 1080 pixels
    Native aspect ratio16:9
    Display technologyLED
    TouchscreenYes
    HD typeFull HD
    Panel typeIPS
    Screen shapeFlat
    Contrast ratio (typical)1000:1
    Display number of colours16.78 million colours
    Touchscreen typeMulti-user
    Touchscreen technologyProjected capacitive system
    Touch technologyMulti-touch
    Number of simultaneous touchpoints10
    Response time14 ms
    Aspect ratio16:9
    Viewing angle, horizontal178°
    Viewing angle, vertical178°
    Pixel pitch0.24795 x 0.24795 mm
    Horizontal scan range31.4 - 82 kHz
    Vertical scan range56 - 75 Hz
    Display diagonal (metric)54.6 cm
    Display brightness315 cd/m²
    Separate H/V syncYes
    NVIDIA G-SYNCNo
    AMD FreeSyncNo
    OmniTapps Multitouch compatibilityNo
    Built-in cameraNo
    Built-in microphoneNo
    Product colourBlack
    International Protection (IP) codeIP65
    CertificationCB, CE, TÜV-Bauart, CU, cULus, REACH
    HDMIYes
    USB Touch portYes
    VGA (D-Sub) ports quantity1
    HDMI ports quantity1
    DisplayPorts quantity1
    Headphone outputs1
    HDCPYes
    VESA mountingYes
    Panel mounting interface100 x 100 mm
    Wall mountableYes
    On Screen Display (OSD) languagesGerman, English, Spanish, French, Italian, Japanese
    Number of OSD languages6
    Plug and PlayYes
    Energy efficiency class (SDR)F
    Energy consumption (SDR) per 1000 hours19 kWh
    Power consumption (typical)19 W
    Power consumption (standby)1.2 W
    Power consumption (off)1.2 W
    Power supply typeDC
    Energy efficiency scaleA to G
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)20 - 80%
    Storage relative humidity (H-H)10 - 90%
    Cables includedAC, DisplayPort, HDMI, USB
    Quick start guideYes
    Width (without stand)520 mm
    Depth (without stand)42.5 mm
    Height (without stand)315 mm
    Weight (without stand)4.4 kg
    Harmonized System (HS) code85285210
    AC adapter includedYes
    Display viewable area (HxV)476.064 x 267.786 mm
    Placement supportedHorizontal/Vertical
    Full HDYes
    Description
    iiyama ProLite TF2215MC-B2. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
    ShortDesc22" PCAP, Bezel Free 10P Touch Screen, 1920 x 1080, Anti-Fingerprint coating, 350cd/m², 1000:1, 14ms, Thru Glass, External Power Adapter, VESA 100, MultiTouch only with supported OS, IP65, 7H glass
    Display Size21.5"
    Display Size (cm)54.6 cm
    Display Viewing Area476.06 x 267.79 mm
    Product TypeTouch
    Display TypeLED IPS
    Display Format16:9
    Display Resolution1920 x 1080
    Display Features
  • Open Frame
  • Light transmittance: 90%
  • Anti-fingerprint coating, touch through-glass
  • 60950 Ball drop tested
  • Water and dust protection: IP65 (front)
  • Water tight seal
  • OSD key lock
  • Pixel Pitch0.24795 mm
    Brightness350 cd/m2
    Static Contrast Ratio1000:1
    Dynamic Contrast Ratio-
    Frequency Horizontal31.4-82 kHz
    Frequency Vertical-
    Viewing Angle Horizontal178
    Viewing Angle Vertical178
    Display Response Time14 ms
    USB1
    HDMI1
    DisplayPortYes
    USB Type-CNo
    RJ-45No
    Interface
  • VGA
  • HDMI
  • DisplayPort
  • Audio jack
  • USB
  • CameraNo
    WirelessNo
    Wireless Features-
    Audio-
    Audio Features-
    TiltNo
    PivotNo
    RotateNo
    Height AdjustmentNo
    Lock slot-
    VESA CompatibleYes
    VESA Standard100 x 100
    Emission StandardEnergy class: F
    EPEAT-
    ColorBlack
    Monitor Controls
  • Touch technology: projective capacitive
  • Touch points: 10 (HID, only with supported OS)
  • Touch method: stylus, finger, glove (latex)
  • Touch interface: USB
  • Package Contents
  • Cables: power, USB, HDMI, DP
  • Quick start guide
  • Safety guide
  • AC adapter
  • Touch Panel Driver Disk (CD-ROM)
  • External control pad
  • Width520 mm
    Depth42.5 mm
    Height315 mm
    Net Weight4.400 kg
    Gross Weight6.850 kg
