| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full |
| Cable types supported | Cat5 |
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| DC-in jack | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8.3/125,8.7/125,8/125,10/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Sensitivity | -22 dBmW |
| Mean time between failures (MTBF) | 100000 h |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
| Certification | FCC Class A, CE |
| Output voltage | 5 V |
| Output current | 1.2 A |
| Power consumption (max) | 5 W |
| External power adapter | Yes |
| Width | 69 mm |
| Depth | 105 mm |
| Height | 25 mm |
| Weight | 180 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| AC adapter included | Yes |
| Manual | Yes |
| Harmonized System (HS) code | 85176990 |
| Description |

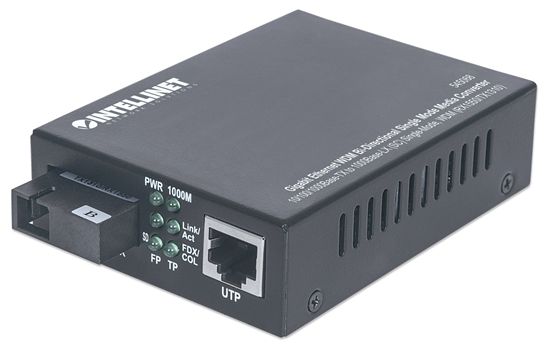

| Intellinet Gigabit Ethernet WDM Bi-Directional Single Mode Media Converter, 10/100/1000Base-Tx to 1000Base-Lx (SC) Single-Mode, 20km, WDM (Rx1550/Tx1310) (Euro 2-pin plug). Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-TX, Converter output interface: 1000Base-LX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 8.3/125,8.7/125,8/125,10/125 µm. Product colour: Black, Housing material: Metal, Certification: FCC Class A, CE. Output voltage: 5 V, Output current: 1.2 A, Power consumption (max): 5 W |
