Type | IP security camera |
Placement supported | Indoor |
Connectivity technology | Wired |
Day/night mode | Yes |
Infrared (IR) cut-off filter | Yes |
Dynamic range | 120 dB |
Certification | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
Mounting type | Ceiling |
Product colour | Black, White |
Form factor | Dome |
Housing material | Plastic |
Minimum illumination | 0.005 lx |
Field of view (FOV) angle | 107° |
Lens viewing angle, horizontal | 90° |
Lens viewing angle, vertical | 48° |
Lens viewing angle, diagonal | 107° |
Tilt angle range | 0 - 85° |
Pan range | 0 - 360° |
Camera shutter speed | 1/3 - 1/10000 s |
Sensor type | CMOS |
Number of sensors | 1 |
Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Number of lenses | 1 |
Detect distance | 80 m |
Observe distance | 33 m |
Recognize distance | 16 m |
Maximum aperture number | 1.6 |
Identify distance | 8 m |
Fixed focal length | 4 mm |
Night vision | Yes |
Night vision distance | 30 m |
Infra-red wavelength | 850 nm |
Maximum resolution | 2880 x 1620 pixels |
Total megapixels | 5 MP |
Video formats supported | H.264, H.264+, H.265, H.265+ |
Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620 |
Supported video modes | 720p, 1080p, 2560p, 2880p |
Video recording | Yes |
Frame rate | 30 fps |
Video streaming | Yes |
Bit rate control | Variable Bit Rate (VBR) |
Bit rate | 256 Kbps - 6 Mbps |
Sample rate | 8 kHz |
Signal-to-Noise Ratio (SNR) | 52 dB |
Built-in microphone | Yes |
Voice codecs | G.711 |
Ethernet LAN | Yes |
Wi-Fi | No |
Bluetooth | No |
Ethernet interface type | Fast Ethernet |
Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Built-in HDD | No |
Compatible memory cards | MicroSD (TransFlash) |
Maximum memory card size | 256 GB |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | Yes |
Reset button | Yes |
Power source type | DC |
Power consumption (max) | 9 W |
Operating temperature (T-T) | -30 - 60 °C |
Storage temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Height | 84 mm |
Diameter | 12.3 cm |
Weight | 240 g |
Package weight | 400 g |
Package type | Box |
Number of cameras | 1 |
Description |

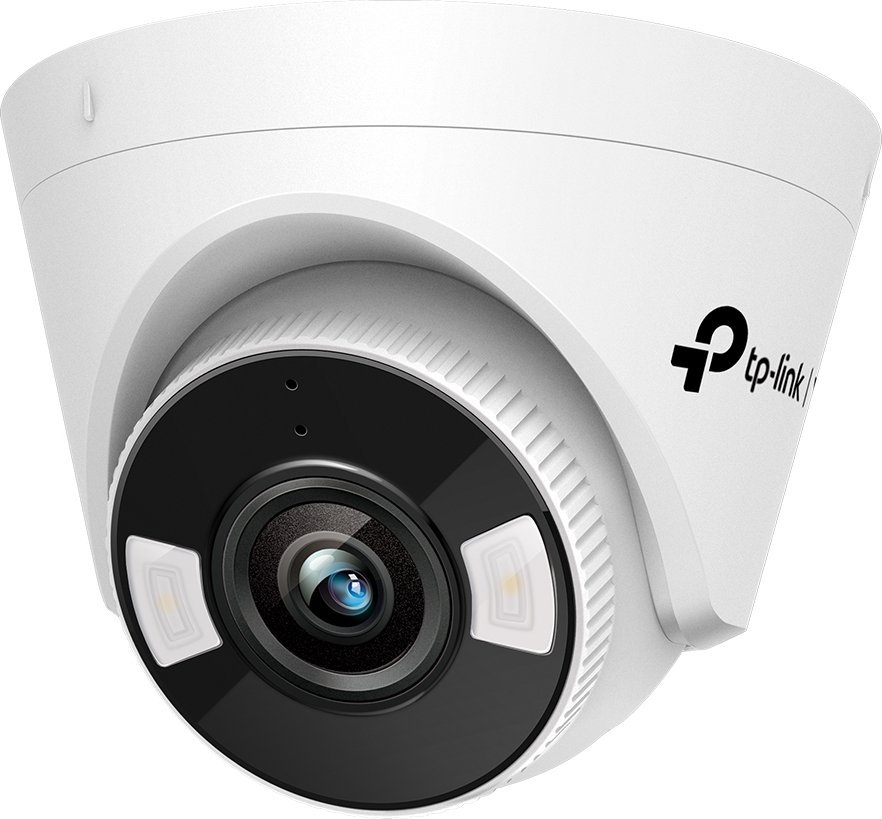

TP-Link VIGI 5MP Full-Color Turret Network Camera. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Field of view (FOV) angle: 107°, Lens viewing angle, horizontal: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m |
