    Manufacturer: MIKROTIK

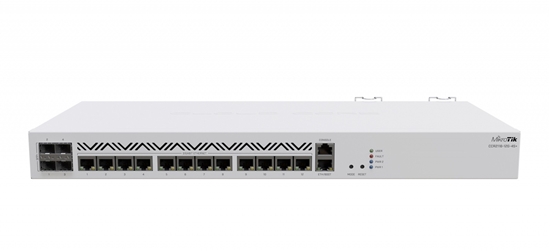

    NET ROUTER 1000M 12PORT 4SFP+/CCR2116-12G-4S+ MIKROTIK


    €896.85 incl tax

    SKU: ST05200545
    Manufacturer part number: CCR2116-12G-4S+
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    LV
    LT
    DE

    Products specifications
    Properties RJ-45
    Model

    CCR2116-12G-4S+
    TypexDSL
    Network architectureGigabitEthernet
    I/O ports13 x 10/100/1000 Mbit/s
    I/O ports4 x 10Gbit SFP/SFP+
    I/O ports1 x Console port (RJ-45)
    Power supply
    • Liczba wejść AC: 2
    • Zakres wejściowy AC: 100-240 V
    • Napięcie znamionowe zasilacza: 12 V
    • Prąd znamionowy zasilacza: 10.8 A
    • Maksymalny pobór mocy: 72 W
    ColorWhite
    Dimensions

    443 x 199 x 44 mm
    Other features
    • Architektura: 64-bitowe ARM
    • Procesor: AL73400
    • Liczba rdzeni procesora: 16
    • Częstotliwość nominalna procesora: 2 GHz
    • Licencja RouterOS: 6
    • System operacyjny: RouterOS
    • Rozmiar pamięci RAM: 16 GB
    • Rozmiar pamięci: 128 MB
    • Typ pamięci: NAND
    • Testowana temperatura otoczenia: -20°C do 60°C
    Width280
    Height500
    Depth70
    Weight3000
    Description

    GFS2116-12G-4S+
    Zapomnij o ograniczeniach procesora w ustawieniach 10G dzięki tej potężnej 16-rdzeniowej CCR opartej na procesorze ARM. Podwojona wydajność naszego dotychczasowego 36-core CCR, 6x szybsza wydajność BGP. Zawiera gniazdo M. 2 PCIe.
    Description
    CCR2116-12G-4S+ | Network Device Type Router | 13x10/100/1000BASE-T/SFP combo | 4xSFP+ | 1xConsole | Memory (RAM) 16GB | Power consumption 72 Watts
    Length0.49
    Width0.28
    Height0.08
    Weight2.9
    Gross depth (mm)277, 277
    Gross height (mm)68, 68
    Gross weight2.86
    Gross width (mm)488, 488
    Net weight2.459
    Packing quantity1.00, 1.00
    Paper/Pasteboard361.00, 361.00
    Plastic (No PET)40.00, 40.00
    Tare weight (kg)0.40, 0.40
    Volume (m3)0.009191968, 0.009191968
    Embeeded batteryNo, No
    WEEE taxYes, Yes
    WEE classificationCL109:6:2017-04-01, CL109:6:2017-04-01
    Other features We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU. But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading! Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes. Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more. If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about. CCR2116-12G-4S+: technology tested by time, built for the future.
    Processor modelAL73400
    CPU frequency2000 MHz
    Ethernet LAN (RJ-45) ports13
    Software typeRouterOS (v7 only)
    Power consumption (max)72
    Storage capacity128
    Operating temperature (T-T)-20°C to 60°C
    SFP+ ports quantity4
    Warranty12
    Producer product nameCCR2116-12G-4S+
    Producer product familyCloud Core Router
    Palette Qty94, 94
    ProducerMikroTik, MikroTik
    Description
    We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading!Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about.CCR2116-12G-4S+: technology tested by time, built for the future.
    Description
    Mikrotik CCR2116-12G-4S+

    Products specifications
    Properties RJ-45
    Model

    CCR2116-12G-4S+
    TypexDSL
    Network architectureGigabitEthernet
    I/O ports13 x 10/100/1000 Mbit/s
    I/O ports4 x 10Gbit SFP/SFP+
    I/O ports1 x Console port (RJ-45)
    Power supply
    • Liczba wejść AC: 2
    • Zakres wejściowy AC: 100-240 V
    • Napięcie znamionowe zasilacza: 12 V
    • Prąd znamionowy zasilacza: 10.8 A
    • Maksymalny pobór mocy: 72 W
    ColorWhite
    Dimensions

    443 x 199 x 44 mm
    Other features
    • Architektura: 64-bitowe ARM
    • Procesor: AL73400
    • Liczba rdzeni procesora: 16
    • Częstotliwość nominalna procesora: 2 GHz
    • Licencja RouterOS: 6
    • System operacyjny: RouterOS
    • Rozmiar pamięci RAM: 16 GB
    • Rozmiar pamięci: 128 MB
    • Typ pamięci: NAND
    • Testowana temperatura otoczenia: -20°C do 60°C
    Width280
    Height500
    Depth70
    Weight3000
    Description

    GFS2116-12G-4S+
    Zapomnij o ograniczeniach procesora w ustawieniach 10G dzięki tej potężnej 16-rdzeniowej CCR opartej na procesorze ARM. Podwojona wydajność naszego dotychczasowego 36-core CCR, 6x szybsza wydajność BGP. Zawiera gniazdo M. 2 PCIe.
    Description
    CCR2116-12G-4S+ | Network Device Type Router | 13x10/100/1000BASE-T/SFP combo | 4xSFP+ | 1xConsole | Memory (RAM) 16GB | Power consumption 72 Watts
    Length0.49
    Width0.28
    Height0.08
    Weight2.9
    Gross depth (mm)277, 277
    Gross height (mm)68, 68
    Gross weight2.86
    Gross width (mm)488, 488
    Net weight2.459
    Packing quantity1.00, 1.00
    Paper/Pasteboard361.00, 361.00
    Plastic (No PET)40.00, 40.00
    Tare weight (kg)0.40, 0.40
    Volume (m3)0.009191968, 0.009191968
    Embeeded batteryNo, No
    WEEE taxYes, Yes
    WEE classificationCL109:6:2017-04-01, CL109:6:2017-04-01
    Other features We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU. But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading! Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes. Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more. If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about. CCR2116-12G-4S+: technology tested by time, built for the future.
    Processor modelAL73400
    CPU frequency2000 MHz
    Ethernet LAN (RJ-45) ports13
    Software typeRouterOS (v7 only)
    Power consumption (max)72
    Storage capacity128
    Operating temperature (T-T)-20°C to 60°C
    SFP+ ports quantity4
    Warranty12
    Producer product nameCCR2116-12G-4S+
    Producer product familyCloud Core Router
    Palette Qty94, 94
    ProducerMikroTik, MikroTik
    Description
    We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading!Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about.CCR2116-12G-4S+: technology tested by time, built for the future.
    Description
    Mikrotik CCR2116-12G-4S+
