Manufacturer: MSI

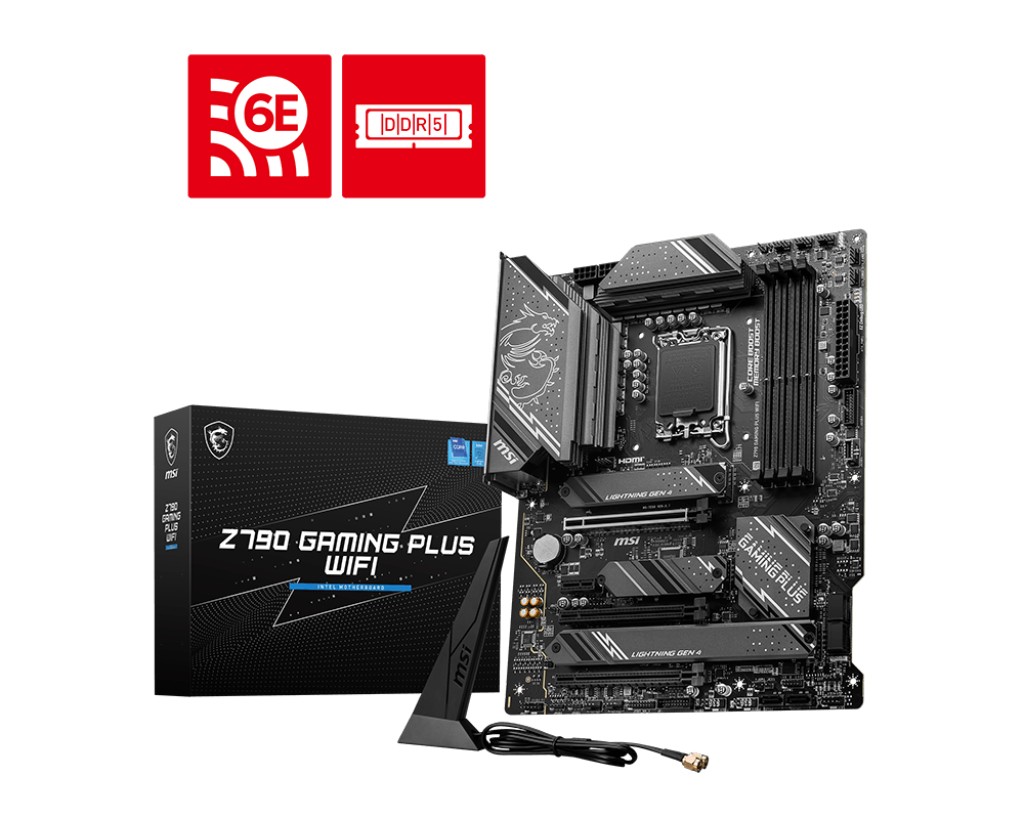

MSI Z790 GAMING PLUS WIFI DDR5 LGA1700

€234,15 с налогом

SKU: ST07929909

Manufacturer part number: Z790 GAMING PLUS WIFI

Manufacturer Homepage

Warranty: 36 months

Stock *

	Stock	Delivery	Quantity	Price
	LT	3 - 5 days	60	€234.15 incl tax

Qty:

Specifications

Products specifications

Video interface	DisplayPort
CPU Socket	LGA 1700
Form Factor	ATX
Video interface	HDMI

Model	Z790 GAMING PLUS WIFI
CPU socket	LGA1700
Processor family	Intel Celeron
Processor family	Intel Core
Processor family	Intel Pentium Gold
Integrated CPU	No
Chipset manufacturer	Intel
Chipset type	INTEL Z790
Memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	6600 MHz
Memory bus frequency	6800 MHz
Memory bus frequency	7000 MHz
Memory bus frequency	5000 MHz
Memory bus frequency	5200 MHz
Memory bus frequency	5400 MHz
Memory bus frequency	5600 MHz
Memory bus frequency	5800 MHz
Memory bus frequency	6000 MHz
Memory bus frequency	6200 MHz
Memory bus frequency	6400 MHz
Memory bus frequency	7200 MHz
Memory bus frequency	4800 MHz
Max memory size	192 (GigaBajt)
Expansion slots	2 x PCIe 3.0 x 1
Expansion slots	2 x M.2
Expansion slots	1 x PCIe 4.0 x 4
Expansion slots	1 x PCIe x 1
Expansion slots	3 x PCIe x 16
Expansion slots	1 x PCIe 5.0 x 16
Max. number of SATA devices	6
RAID	Yes
Detailed data on disk/drive interfaces	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Graphics	1x HDMI Obsługa HDMI 2.1 HDR, maksymalna rozdzielczość 4K 60 Hz* 1x DisplayPort Obsługa DP 1.4, maksymalna rozdzielczość 4K 60 Hz* *Dostępne tylko w procesorach ze zintegrowaną grafiką. Specyfikacje graficzne mogą się różnić w zależności od zainstalowanego procesora.
Sound card	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Network interface	1 x 10/100/1000/2500 Mbit/s
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	Bluetooth
Network interface	Intel 2.5Gbps LAN Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
USB ports at back panel	8
USB ports on motherboard	9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	3
FireWire (IEEE 1394)	No
COM connector / port	No
LPT connector / port	No
External connectors	4 x USB 2.0
External connectors	2 x USB 3.0
External connectors	1 x USB 3.1
External connectors	1 x Side Speaker
External connectors	1 x Central Speaker / Subwoofer
External connectors	1 x Rear Speaker
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	1 x DisplayPort
External connectors	1 x HDMI
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	1 x USB 3.1 Type-C
External connectors	2 x SMA
External connectors	1 x Flash BIOS Button
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x TPM header
Onboard connectors	2 x System panel header
Onboard connectors	1 x 4-pin water-pump-fan
Onboard connectors	4 x USB 2.0/1.1
Onboard connectors	4 x USB 3.0
Onboard connectors	1 x USB 3.1
Onboard connectors	1 x 4pin Chassis fan
Onboard connectors	6 x 4pin wentylator obudowy
Onboard connectors	1 x Chassis intrusion header
Onboard connectors	2 x RGB LED Strip
Onboard connectors	2 x Addressable LED
Form factor	ATX
Dimensions	243.84 x 304.8 mm
Supported operating systems	Windows 11
Supported operating systems	Windows 10
Designation	CE+WEEE
Width	340
Height	270
Depth	70
Weight	1800
Description
Description	Z790 GAMING PLUS WIFI Obsługa procesorów Intel Core 14./13./12. generacji, procesorów Intel Pentium Gold i Celeron dla gniazda LGA 1700 Obsługuje pamięć DDR5, do 7200+(OC) MHz Ulepszony układ zasilania: System zasilania Duet Rail 14+1+1 z DrMOS, dwa 8-pinowe złącza zasilania procesora, wzmocnienie rdzenia, zwiększenie pamięci Rozwiązanie termiczne klasy premium: rozszerzony radiator, podkładki termiczne MOSFET o mocy 7 W/mK, dodatkowe podkładki termiczne dławikowe zapewniają wysoką wydajność systemu i nieprzerwane wrażenia z gry Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, złącze Lightning Gen 4 x4 M.2 z M.2 Shield Frozr, USB 3.2 Gen 2x2 20G Wysokiej jakości PCB: 6-warstwowa płytka drukowana wykonana z miedzi pogrubionej o grubości 2 uncji Wzmocnienie dźwięku: Nagradzaj swoje uszy studyjną jakością dźwięku, aby uzyskać najbardziej wciągające wrażenia z gry

Description	MSI Z790 GAMING PLUS WIFI DDR5 LGA1700
VatType	VAT
Weight	1.775000000
Height	73.000000000
Width	272.000000000
Length	343.000000000
Description
MSI Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX MB PCIe x16 HDMI 4xSATA

Gross depth (mm)	269.00
Gross height (mm)	346.00
Gross weight	1.64
Gross width (mm)	65.00
Net weight	0.97
Packing quantity	1.00
Paper/Pasteboard	600.00
Plastic (No PET)	75.00
Tare weight (kg)	0.68
TI weight (kg)	0.05
Volume (m3)	0.01
Classification of battery	CL126:NE:2016-12-09
Composition of battery	CL127:KT:2016-12-09
Type of battery	Accumulator
Embeeded battery	Yes
WEEE tax	No
Palette Qty	300
Producer product name	Z790 GAMING PLUS WIFI
Processor family	Intel
Supported memory types	DDR5
Processor socket	LGA1700
Number of SATA connectors	6
Producer	MSI
Warranty	36

Products specifications

Video interface	DisplayPort
CPU Socket	LGA 1700
Form Factor	ATX
Video interface	HDMI

Model	Z790 GAMING PLUS WIFI
CPU socket	LGA1700
Processor family	Intel Celeron
Processor family	Intel Core
Processor family	Intel Pentium Gold
Integrated CPU	No
Chipset manufacturer	Intel
Chipset type	INTEL Z790
Memory type	DDR5
Number of DDR5 slots	4
Memory bus frequency	6600 MHz
Memory bus frequency	6800 MHz
Memory bus frequency	7000 MHz
Memory bus frequency	5000 MHz
Memory bus frequency	5200 MHz
Memory bus frequency	5400 MHz
Memory bus frequency	5600 MHz
Memory bus frequency	5800 MHz
Memory bus frequency	6000 MHz
Memory bus frequency	6200 MHz
Memory bus frequency	6400 MHz
Memory bus frequency	7200 MHz
Memory bus frequency	4800 MHz
Max memory size	192 (GigaBajt)
Expansion slots	2 x PCIe 3.0 x 1
Expansion slots	2 x M.2
Expansion slots	1 x PCIe 4.0 x 4
Expansion slots	1 x PCIe x 1
Expansion slots	3 x PCIe x 16
Expansion slots	1 x PCIe 5.0 x 16
Max. number of SATA devices	6
RAID	Yes
Detailed data on disk/drive interfaces	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Graphics	1x HDMI Obsługa HDMI 2.1 HDR, maksymalna rozdzielczość 4K 60 Hz* 1x DisplayPort Obsługa DP 1.4, maksymalna rozdzielczość 4K 60 Hz* *Dostępne tylko w procesorach ze zintegrowaną grafiką. Specyfikacje graficzne mogą się różnić w zależności od zainstalowanego procesora.
Sound card	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Network interface	1 x 10/100/1000/2500 Mbit/s
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	Bluetooth
Network interface	Intel 2.5Gbps LAN Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
USB ports at back panel	8
USB ports on motherboard	9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	3
FireWire (IEEE 1394)	No
COM connector / port	No
LPT connector / port	No
External connectors	4 x USB 2.0
External connectors	2 x USB 3.0
External connectors	1 x USB 3.1
External connectors	1 x Side Speaker
External connectors	1 x Central Speaker / Subwoofer
External connectors	1 x Rear Speaker
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	1 x DisplayPort
External connectors	1 x HDMI
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	1 x USB 3.1 Type-C
External connectors	2 x SMA
External connectors	1 x Flash BIOS Button
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x TPM header
Onboard connectors	2 x System panel header
Onboard connectors	1 x 4-pin water-pump-fan
Onboard connectors	4 x USB 2.0/1.1
Onboard connectors	4 x USB 3.0
Onboard connectors	1 x USB 3.1
Onboard connectors	1 x 4pin Chassis fan
Onboard connectors	6 x 4pin wentylator obudowy
Onboard connectors	1 x Chassis intrusion header
Onboard connectors	2 x RGB LED Strip
Onboard connectors	2 x Addressable LED
Form factor	ATX
Dimensions	243.84 x 304.8 mm
Supported operating systems	Windows 11
Supported operating systems	Windows 10
Designation	CE+WEEE
Width	340
Height	270
Depth	70
Weight	1800
Description
Description	Z790 GAMING PLUS WIFI Obsługa procesorów Intel Core 14./13./12. generacji, procesorów Intel Pentium Gold i Celeron dla gniazda LGA 1700 Obsługuje pamięć DDR5, do 7200+(OC) MHz Ulepszony układ zasilania: System zasilania Duet Rail 14+1+1 z DrMOS, dwa 8-pinowe złącza zasilania procesora, wzmocnienie rdzenia, zwiększenie pamięci Rozwiązanie termiczne klasy premium: rozszerzony radiator, podkładki termiczne MOSFET o mocy 7 W/mK, dodatkowe podkładki termiczne dławikowe zapewniają wysoką wydajność systemu i nieprzerwane wrażenia z gry Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, złącze Lightning Gen 4 x4 M.2 z M.2 Shield Frozr, USB 3.2 Gen 2x2 20G Wysokiej jakości PCB: 6-warstwowa płytka drukowana wykonana z miedzi pogrubionej o grubości 2 uncji Wzmocnienie dźwięku: Nagradzaj swoje uszy studyjną jakością dźwięku, aby uzyskać najbardziej wciągające wrażenia z gry

Description	MSI Z790 GAMING PLUS WIFI DDR5 LGA1700
VatType	VAT
Weight	1.775000000
Height	73.000000000
Width	272.000000000
Length	343.000000000
Description
MSI Z790 GAMING PLUS WIFI DDR5 LGA1700 ATX MB PCIe x16 HDMI 4xSATA

Gross depth (mm)	269.00
Gross height (mm)	346.00
Gross weight	1.64
Gross width (mm)	65.00
Net weight	0.97
Packing quantity	1.00
Paper/Pasteboard	600.00
Plastic (No PET)	75.00
Tare weight (kg)	0.68
TI weight (kg)	0.05
Volume (m3)	0.01
Classification of battery	CL126:NE:2016-12-09
Composition of battery	CL127:KT:2016-12-09
Type of battery	Accumulator
Embeeded battery	Yes
WEEE tax	No
Palette Qty	300
Producer product name	Z790 GAMING PLUS WIFI
Processor family	Intel
Supported memory types	DDR5
Processor socket	LGA1700
Number of SATA connectors	6
Producer	MSI
Warranty	36
