    Manufacturer: APC

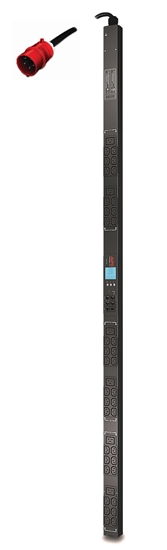

    APC AP8881 power distribution unit (PDU) 42 AC outlet(s) 0U Black


    €1476.26 incl tax

    SKU: ST00681521
    Manufacturer part number: AP8881
    Manufacturer Homepage
    Warranty: 24 months
    *
    Stock Delivery Quantity Price
    PL

    Products specifications
    Socket (IEC320) yes
    DesignationCE+WEEE
    Width168
    Height120
    Depth210
    Weight8200
    DescriptionAPC RACK PDU 2G, METERED, ZEROU, 11KW, 230V, (36) C13 & (6) C19
    CountryofOriginCHINA
    TariffHeading85044030
    PictureLocationhttps://www2.f9baltic.com/productimages/big/AP8881.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/AP8881.jpg
    Weight8.500000
    Height100.000000
    Length2150.000000
    Width160.000000
    BoxSize0
    PalletSize0
    Weight, kg6.38
    Width, mm56
    Depth, mm44
    Height, mm1791
    CertificationCSA C22.2 No. 60950, IEC 60950, UL 60950-1, VDE
    Input connectionIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
    Cable length, m1.83
    Operating temperature range (T-T), �C-5 - 45
    Operating relative humidity range, %5 - 95
    Storage temperature range (T-T), �C-25 - 65
    Nominal input voltage, V400V 3PH
    Input frequency, Hz50/60
    Nominal output voltage, V230
    Output interface(36) IEC 320 C13, (6) IEC 320 C19
    Description
    Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19, IEC309 Cord
    PDU typesMetered
    Rack capacity0U
    MountingVertical
    Product colourBlack
    AC outlets quantity42 AC outlet(s)
    AC outlet typesC13 coupler, C19 coupler
    Power plugIEC309
    Input connection typeIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
    Output connections36x IEC 320 C13 6x IEC 320 C19
    Cable length1.83 m
    CertificationCSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
    MonitoringCurrent, Power, Voltage
    Nominal input voltage400 V
    Maximum current16 A
    AC input frequency50 - 60 Hz
    Nominal output voltage230 V
    Load capacity11040 VA
    Maximum input current per phase16 A
    Maximum total current draw per phase16 A
    Maximum power11000 W
    Dimensions (WxDxH)56 x 44 x 1791 mm
    Weight6.38 kg
    Operating temperature (T-T)5 - 45 °C
    Storage temperature (T-T)-25 - 65 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Description
    APC AP8881. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m, Certification: CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
    DescriptionAPC Rack PDU 2G Metered ZeroU 20A 230V
    VatTypeVAT
    Weight8.880000000
    Height112.000000000
    Width164.000000000
    Length2003.000000000
    Description
    APC Rack PDU 2G Metered ZeroU 20A 230V 36 C13 & 6 C19 Cord Length 1.8 meter IEC309

    Products specifications
    Socket (IEC320) yes
    DesignationCE+WEEE
    Width168
    Height120
    Depth210
    Weight8200
    DescriptionAPC RACK PDU 2G, METERED, ZEROU, 11KW, 230V, (36) C13 & (6) C19
    CountryofOriginCHINA
    TariffHeading85044030
    PictureLocationhttps://www2.f9baltic.com/productimages/big/AP8881.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/AP8881.jpg
    Weight8.500000
    Height100.000000
    Length2150.000000
    Width160.000000
    BoxSize0
    PalletSize0
    Weight, kg6.38
    Width, mm56
    Depth, mm44
    Height, mm1791
    CertificationCSA C22.2 No. 60950, IEC 60950, UL 60950-1, VDE
    Input connectionIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
    Cable length, m1.83
    Operating temperature range (T-T), �C-5 - 45
    Operating relative humidity range, %5 - 95
    Storage temperature range (T-T), �C-25 - 65
    Nominal input voltage, V400V 3PH
    Input frequency, Hz50/60
    Nominal output voltage, V230
    Output interface(36) IEC 320 C13, (6) IEC 320 C19
    Description
    Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19, IEC309 Cord
    PDU typesMetered
    Rack capacity0U
    MountingVertical
    Product colourBlack
    AC outlets quantity42 AC outlet(s)
    AC outlet typesC13 coupler, C19 coupler
    Power plugIEC309
    Input connection typeIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
    Output connections36x IEC 320 C13 6x IEC 320 C19
    Cable length1.83 m
    CertificationCSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
    MonitoringCurrent, Power, Voltage
    Nominal input voltage400 V
    Maximum current16 A
    AC input frequency50 - 60 Hz
    Nominal output voltage230 V
    Load capacity11040 VA
    Maximum input current per phase16 A
    Maximum total current draw per phase16 A
    Maximum power11000 W
    Dimensions (WxDxH)56 x 44 x 1791 mm
    Weight6.38 kg
    Operating temperature (T-T)5 - 45 °C
    Storage temperature (T-T)-25 - 65 °C
    Operating relative humidity (H-H)5 - 95%
    Storage relative humidity (H-H)5 - 95%
    Description
    APC AP8881. PDU types: Metered, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 1.83 m, Certification: CSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH. Monitoring: Current, Power, Voltage. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
    DescriptionAPC Rack PDU 2G Metered ZeroU 20A 230V
    VatTypeVAT
    Weight8.880000000
    Height112.000000000
    Width164.000000000
    Length2003.000000000
    Description
    APC Rack PDU 2G Metered ZeroU 20A 230V 36 C13 & 6 C19 Cord Length 1.8 meter IEC309
