Manufacturer: GIGABYTE

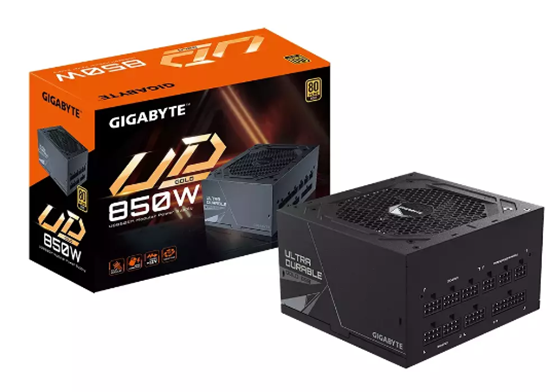

Gigabyte UD850GM power supply unit 850 W 20+4 pin ATX ATX Black

€115.49 incl tax

SKU: ST05344124

Manufacturer part number: GP-UD850GM

Manufacturer Homepage

Warranty: 12 months

Stock *

Stock	Delivery	Quantity	Price
Ir veikalā	0 - 1 days	1	€115.49 incl tax
LV	2 - 5 days	13	€115.52 incl tax
PL	8 - 15 days	18	€117.13 incl tax
LT	5 - 15 days	5	€125.46 incl tax
LV	2 - 5 days	21	€129.64 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7
Details 8

Power supply	800W - 850W
Color	Gold
Form Factor	ATX
Color	Black

Power supply	850 W
Fan	12 cm
PFC	Active
MOLEX power connectors	3
Floppy power connectors	1
SATA power connectors	8
Number of power supply connector 4-pin 12V	0
8-pin 12V power connectors	0
Number of power supply connector 4+4-pin 12V	2
PCI-E 6-pin power connectors	0
Number of power supply connectors PCI-E 6 +2 pin	4
PCI-E 8-pin power connectors	0
MB power connector	20 + 4 pin
Modular power supply	Yes
Dimensions	150 x 140 x 86 mm
Certificates 80+	80 PLUS Gold
Designation	CE+WEEE
Width	205
Height	255
Depth	120
Weight	2577

Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum input current (@110V)	12 A
Maximum input current (@220V)	6 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	849.6 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.8 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	16 ms
Efficiency	90%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	61 cm
Number of SATA power connectors	8
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
CPU power cable length	60 cm
ATX power connector (20+4 pin)	Yes
Floppy drive power connector	2
Floppy disk drive connector	Yes
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.31
Mean time between failures (MTBF)	100000 h
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Width	150 mm
Depth	140 mm
Height	86 mm
Package type	Box
Harmonized System (HS) code	84733020
Description
Description	Gigabyte UD850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Description
	GP-UD850GM \| ATX 2.31 \| 850 Watts \| 80 PLUS GOLD \| PFC Active \| MTBF 100000 hours

Description	GIGABYTE GP-UD850GM 850W 80+ Gold
VatType	VAT
Weight	2.548000000
Height	214.000000000
Width	118.000000000
Length	257.000000000
Description
Description	GIGABYTE GP-UD850GM 850W 80+ Gold

Weight	2
Gross weight	2.5
Description
	Gigabyte UD850GM Total power: 850 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm CPU power cable length: 60 cm Target, result: PC (computer) Power Supply Unit (PSU) Form Factor: ATX 80 PLUS certification: 80 PLUS Gold Product color: Black Cooling type: Active Fan diameter: 12 cm Width: 150 mm Depth: 140 mm Height: 86 mm
	Gigabyte UD850GM Kopējā jauda: 850 W Maiņstrāvas ievades spriegums: 100 - 240 V Maiņstrāvas ievades frekvence: 50 - 60 Hz Mātesplates strāvas konektors: 20+4 pin ATX Mātesplates barošanas vada garums: 61 cm CPU strāvas kabeļa garums: 60 cm Mērķis, rezultāts: PC (dators) Strāvas padeves bloka (PSU) formas faktors: ATX 80 PLUS sertifikācija: 80 PLUS Gold Produkta krāsa: Melns Dzesēšanas tips: Aktīvs Ventilatora diametrs: 12 cm Platums: 150 mm Dziļums: 140 mm Augstums: 86 mm
	Gigabyte UD850GM Общая мощность: 850 Вт Входное напряжение переменного тока: 100–240 В Входная частота переменного тока: 50–60 Гц Разъем питания материнской платы: 20+4-контактный ATX Длина кабеля питания материнской платы: 61 см. Длина кабеля питания процессора: 60 см Цель, результат: ПК (компьютер) Форм-фактор блока питания: ATX Сертификация 80 PLUS: 80 PLUS Gold Цвет товара: Черный Тип охлаждения: Активное Диаметр вентилятора: 12 см. Ширина: 150 мм Глубина: 140 мм Высота: 86 мм

Gross depth (mm)	255.00
Gross height (mm)	208
Gross weight	2.55
Gross width (mm)	118
Net weight	2.25
Packing quantity	5
Paper/Pasteboard	240.00
Plastic (No PET)	60.00
Tare weight (kg)	0.30
Volume (m3)	0.00625872
Embeeded battery	No
WEEE tax	No
WEE classification	CL109:6:2017-04-01
Nominal power	850
Producer product name	GP-UD850GM
Other features	Fan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
Producer product family	PSU
Form factor	ATX 12V v2.31
Bearing technology	Hydraulic Bearing (HYB)
Gross depth master carton	620
Gross width master carton	224
Gross height master carton	278
Net weight master carton	12.75
Tare weight master carton	0.656
Palette Qty	145
Warranty	60
Producer	Gigabyte

Description
	- Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection - 80 PLUS Gold certified - Fully modular design - Powerful single +12V rail - Compact design - 5 years warranty (Adjusted according to different regions

Products specifications

1
Details 2
Details 3
Details 4
Details 5
Details 6
Details 7
Details 8

Power supply	800W - 850W
Color	Gold
Form Factor	ATX
Color	Black

Power supply	850 W
Fan	12 cm
PFC	Active
MOLEX power connectors	3
Floppy power connectors	1
SATA power connectors	8
Number of power supply connector 4-pin 12V	0
8-pin 12V power connectors	0
Number of power supply connector 4+4-pin 12V	2
PCI-E 6-pin power connectors	0
Number of power supply connectors PCI-E 6 +2 pin	4
PCI-E 8-pin power connectors	0
MB power connector	20 + 4 pin
Modular power supply	Yes
Dimensions	150 x 140 x 86 mm
Certificates 80+	80 PLUS Gold
Designation	CE+WEEE
Width	205
Height	255
Depth	120
Weight	2577

Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum input current (@110V)	12 A
Maximum input current (@220V)	6 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	849.6 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.8 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	16 ms
Efficiency	90%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	61 cm
Number of SATA power connectors	8
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
CPU power cable length	60 cm
ATX power connector (20+4 pin)	Yes
Floppy drive power connector	2
Floppy disk drive connector	Yes
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.31
Mean time between failures (MTBF)	100000 h
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Width	150 mm
Depth	140 mm
Height	86 mm
Package type	Box
Harmonized System (HS) code	84733020
Description
Description	Gigabyte UD850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Description
	GP-UD850GM \| ATX 2.31 \| 850 Watts \| 80 PLUS GOLD \| PFC Active \| MTBF 100000 hours

Description	GIGABYTE GP-UD850GM 850W 80+ Gold
VatType	VAT
Weight	2.548000000
Height	214.000000000
Width	118.000000000
Length	257.000000000
Description
Description	GIGABYTE GP-UD850GM 850W 80+ Gold

Weight	2
Gross weight	2.5
Description
	Gigabyte UD850GM Total power: 850 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm CPU power cable length: 60 cm Target, result: PC (computer) Power Supply Unit (PSU) Form Factor: ATX 80 PLUS certification: 80 PLUS Gold Product color: Black Cooling type: Active Fan diameter: 12 cm Width: 150 mm Depth: 140 mm Height: 86 mm
	Gigabyte UD850GM Kopējā jauda: 850 W Maiņstrāvas ievades spriegums: 100 - 240 V Maiņstrāvas ievades frekvence: 50 - 60 Hz Mātesplates strāvas konektors: 20+4 pin ATX Mātesplates barošanas vada garums: 61 cm CPU strāvas kabeļa garums: 60 cm Mērķis, rezultāts: PC (dators) Strāvas padeves bloka (PSU) formas faktors: ATX 80 PLUS sertifikācija: 80 PLUS Gold Produkta krāsa: Melns Dzesēšanas tips: Aktīvs Ventilatora diametrs: 12 cm Platums: 150 mm Dziļums: 140 mm Augstums: 86 mm
	Gigabyte UD850GM Общая мощность: 850 Вт Входное напряжение переменного тока: 100–240 В Входная частота переменного тока: 50–60 Гц Разъем питания материнской платы: 20+4-контактный ATX Длина кабеля питания материнской платы: 61 см. Длина кабеля питания процессора: 60 см Цель, результат: ПК (компьютер) Форм-фактор блока питания: ATX Сертификация 80 PLUS: 80 PLUS Gold Цвет товара: Черный Тип охлаждения: Активное Диаметр вентилятора: 12 см. Ширина: 150 мм Глубина: 140 мм Высота: 86 мм

Gross depth (mm)	255.00
Gross height (mm)	208
Gross weight	2.55
Gross width (mm)	118
Net weight	2.25
Packing quantity	5
Paper/Pasteboard	240.00
Plastic (No PET)	60.00
Tare weight (kg)	0.30
Volume (m3)	0.00625872
Embeeded battery	No
WEEE tax	No
WEE classification	CL109:6:2017-04-01
Nominal power	850
Producer product name	GP-UD850GM
Other features	Fan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
Producer product family	PSU
Form factor	ATX 12V v2.31
Bearing technology	Hydraulic Bearing (HYB)
Gross depth master carton	620
Gross width master carton	224
Gross height master carton	278
Net weight master carton	12.75
Tare weight master carton	0.656
Palette Qty	145
Warranty	60
Producer	Gigabyte

Description
	- Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection - 80 PLUS Gold certified - Fully modular design - Powerful single +12V rail - Compact design - 5 years warranty (Adjusted according to different regions
