    • Level One LevelOne Konverter FVT-2401 10/100TX>100FX SC SMF 40km
    Ražotājs: LEVELONE

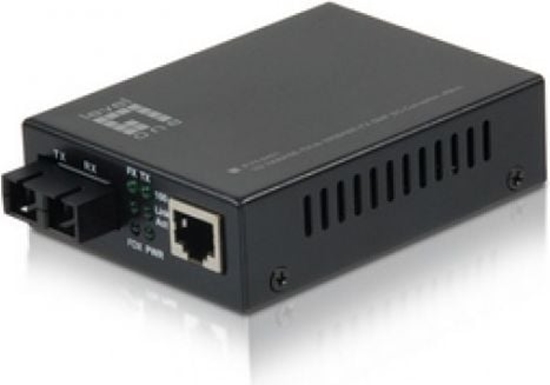

    Level One LevelOne Konverter FVT-2401 10/100TX>100FX SC SMF 40km


    €81,46 ar pvn

    Artikuls: ST04513545
    Preces kods: FVT-2401
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Status7 dienas
    Description
    The FVT-2401 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 40 km. The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode. The FVT-2401 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19-inch Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

    Maximum data transfer rate 100 Mbit/s
    Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
    Flow control support Y
    Store-and-forward Y
    Duplex system Full, Half
    Link Loss Carry Forward (LLCF) supported Y
    Link Loss Return (LLR) supported Y
    Fiber optic connector SC
    Connectivity technology Wired
    Ethernet LAN (RJ-45) ports 1
    Fiber ports quantity 1
    DC-in jack Y
    Maximum transfer distance 40000 m
    Wavelength 1310 nm
    Fiber mode structure Single-mode
    Fiber cable diameters supported (core/cladding) 8.3/125,9/125,10/125 µm
    Internal N
    LED indicators Activity, Link, Power
    Product colour Black
    Country of origin China
    Certification FCC, CE
    Input voltage 5 V
    Input current 1 A
    Width 94 mm
    Depth 70 mm
    Height 25 mm
    Weight 420 g
    Operating temperature (T-T) -40 - 75 °C
    Storage temperature (T-T) -10 - 55 °C
    Operating relative humidity (H-H) 5 - 90%
    Package width 235 mm
    Package depth 125 mm
    Package height 55 mm
    Package weight 494 g
    Package type Box
    AC adapter included Y
    Quick installation guide Y
    Sustainability certificates RoHS
    Harmonized System (HS) code 85176990
