PDU types | Metered, Switched |
Rack capacity | 0U/1U |
Mounting | Horizontal/Vertical |
Product colour | Black |
AC outlets quantity | 8 AC outlet(s) |
AC outlet types | C13 coupler |
Power plug | C14 coupler |
Input connection type | IEC-320 C14 |
Cable length | 1.98 m |
Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
Monitoring | Current, Power, Voltage |
Outlet control | Lock-out, Recycle, Turn off, Turn on |
Nominal input voltage | 200-230 V |
Maximum current | 10 A |
AC input frequency | 50 - 60 Hz |
Nominal output voltage | 208-230 V |
Load capacity | 2300 VA |
Maximum input current per phase | 10 A |
Maximum total current draw per phase | 10 A |
Maximum power | 2300 W |
Dimensions (WxDxH) | 445 x 108 x 44 mm |
Weight | 2.27 kg |
Package dimensions (WxDxH) | 470 x 343 x 70 mm |
Package weight | 3.45 kg |
Packaging content | Installation Guide, Rack Mounting Brackets, User Manual |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -25 - 65 °C |
Operating relative humidity (H-H) | 0 - 95% |
Storage relative humidity (H-H) | 0 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 1 - 15000 m |
Sustainability certificates | RoHS |
Description |

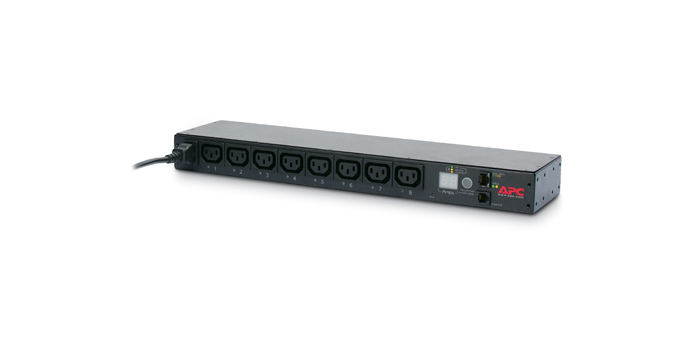

APC AP7920B. PDU types: Metered, Switched, Rack capacity: 0U/1U, Mounting: Horizontal/Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Cable length: 1.98 m, Certification: cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL.... Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 200-230 V, Maximum current: 10 A, AC input frequency: 50 - 60 Hz |
