| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | +/- 3 Hz |
| Output voltage regulation | 5% |
| Response time | 10 ms |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Battery replacement |
| Auto-restart | Yes |
| AC outlet types | C13 coupler, C19 coupler, C20 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 702 Ah |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Cable length | 2 m |
| Display type | LED |
| LED indicators | Yes |
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability certificates | RoHS |
| Width | 178 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 38.6 kg |
| Package width | 586 mm |
| Package depth | 633 mm |
| Package height | 330 mm |
| Package weight | 47.6 kg |
| Rack mount kit | Yes |
| Cables included | Input power cable, USB cable |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Output voltage | 230 V |
| Description |

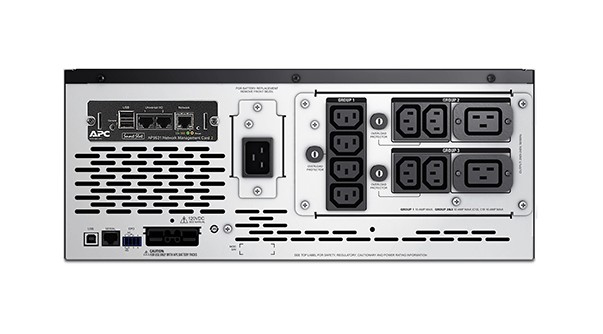

| APC Smart-UPS X 2200VA. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, C20 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 Ah, Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 178 mm, Depth: 483 mm, Height: 432 mm |
