Ražotājs: ATEN

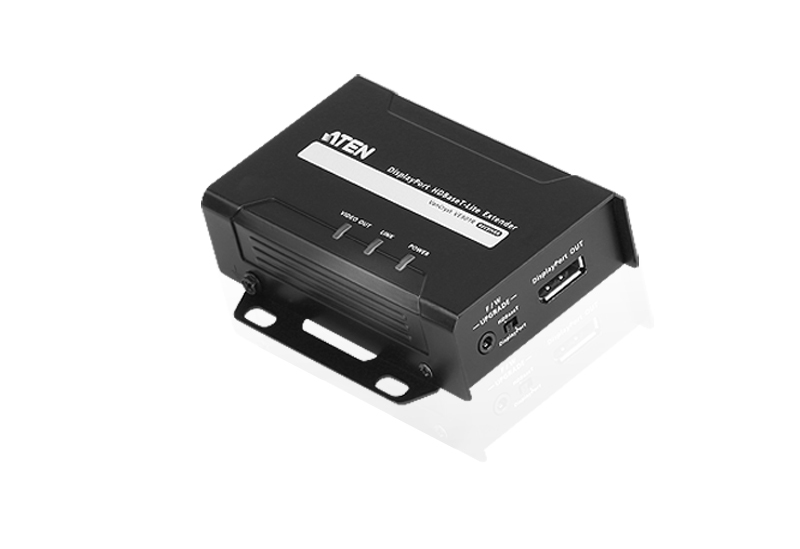

Aten DisplayPort HDBaseT-Lite Receiver 4K/40m;1080p/70m

€248,85 ar pvn

Artikuls: ST04530083

Preces kods: VE901R-AT-G

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	1	€248,85 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3

Īpašības	RJ-45
Īpašības	Display port
Krāsa	Melna

Type	Adapter
Usage	Computer
Connectors #1	DisplayPort Female
Connectors #2	RJ45 Female
Color	Black
Dimensions	9.42 x 6.60 x 2.90 cm
Weight	0.27 (kilogram)
Accessories included	1x VE901R DisplayPort HDBaseT-Lite 1x Zasilacz 1x Instrukcja dla użytkownika
Designation	CE+WEEE
Width	240
Height	165
Depth	60
Weight	520
Description
Description	Przedłużacz VE901 DisplayPort HDBaseT-Lite może przedłużyć wyświetlacz DisplayPort do 70 m za pomocą przewodu Cat 6/6a/ATEN 2L2910 Cat 6. To połączenie technologii ATEN i HDBaseT umożliwia udostępnianie nośników 4K w odległości do 40 m, oferując proste, elastyczne i ekonomiczne rozwiązanie dla każdej profesjonalnej instalacji audio-wideo.

Type	AV receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	70 m
Supported video modes	1080p
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Bandwidth	10.2 Gbit/s
Bandwidth	297 MHz
HDCP	Yes
Material	Metal
Rack mounting	Yes
Plug and Play	Yes
Impedance	100 Ω
HDCP version	1.4
Product colour	Black
HDBaseT certified	Yes
Connectivity technology	Wired
RJ-45 input ports	1
HDBaseT port	Yes
DisplayPorts out	1
DC-in jack	Yes
Operating voltage (receiver)	5 V
Power consumption (RX)	5.72 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	94.2 mm
Depth	66 mm
Height	29 mm
Weight	380 g
Quantity per pack	1 pc(s)
Package width	59 mm
Package depth	119 mm
Package height	160 mm
Package weight	540 g
AC adapter included	Yes
Manual	Yes
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	5.06 kg
Master (outer) case net weight	3.8 kg
Products per master (outer) case	10 pc(s)
Description
Description	ATEN DisplayPort HDBaseT-Lite Receiver 4K/40m;1080p/70m. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (receiver): 5 V, Power consumption (RX): 5.72 W. Width: 94.2 mm, Depth: 66 mm, Height: 29 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 119 mm

Specifikācija

1
Specifikācija 2
Specifikācija 3

Īpašības	RJ-45
Īpašības	Display port
Krāsa	Melna

Type	Adapter
Usage	Computer
Connectors #1	DisplayPort Female
Connectors #2	RJ45 Female
Color	Black
Dimensions	9.42 x 6.60 x 2.90 cm
Weight	0.27 (kilogram)
Accessories included	1x VE901R DisplayPort HDBaseT-Lite 1x Zasilacz 1x Instrukcja dla użytkownika
Designation	CE+WEEE
Width	240
Height	165
Depth	60
Weight	520
Description
Description	Przedłużacz VE901 DisplayPort HDBaseT-Lite może przedłużyć wyświetlacz DisplayPort do 70 m za pomocą przewodu Cat 6/6a/ATEN 2L2910 Cat 6. To połączenie technologii ATEN i HDBaseT umożliwia udostępnianie nośników 4K w odległości do 40 m, oferując proste, elastyczne i ekonomiczne rozwiązanie dla każdej profesjonalnej instalacji audio-wideo.

Type	AV receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	70 m
Supported video modes	1080p
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Bandwidth	10.2 Gbit/s
Bandwidth	297 MHz
HDCP	Yes
Material	Metal
Rack mounting	Yes
Plug and Play	Yes
Impedance	100 Ω
HDCP version	1.4
Product colour	Black
HDBaseT certified	Yes
Connectivity technology	Wired
RJ-45 input ports	1
HDBaseT port	Yes
DisplayPorts out	1
DC-in jack	Yes
Operating voltage (receiver)	5 V
Power consumption (RX)	5.72 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	94.2 mm
Depth	66 mm
Height	29 mm
Weight	380 g
Quantity per pack	1 pc(s)
Package width	59 mm
Package depth	119 mm
Package height	160 mm
Package weight	540 g
AC adapter included	Yes
Manual	Yes
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	5.06 kg
Master (outer) case net weight	3.8 kg
Products per master (outer) case	10 pc(s)
Description
Description	ATEN DisplayPort HDBaseT-Lite Receiver 4K/40m;1080p/70m. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (receiver): 5 V, Power consumption (RX): 5.72 W. Width: 94.2 mm, Depth: 66 mm, Height: 29 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 119 mm
