| Projector brightness | 3600 ANSI lumens |
| Projection technology | D-ILA |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 22000:1 |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1778 - 3048 mm (70 - 120") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.65 cm (0.65") |
| Matrix type | DMD |
| Light source type | Lamp |
| Service life of light source | 6000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamps quantity | 1 lamp(s) |
| Zoom capability | No |
| Offset | 105% |
| Full HD | No |
| 3D | Yes |
| Supported 3D formats | Frame Sequential, Frame packing, Side by side, Top and bottom |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| HDMI connector type | Full-size |
| S-Video inputs quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| PC Audio in | Yes |
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | No |
| Noise level | 33 dB |
| Interactive | Yes |
| Noise level (economic mode) | 29 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
| Number of OSD languages | 28 |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Number of built-in speakers | 1 |
| Product type | Short throw projector |
| Market positioning | Education |
| Product colour | White |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight | 2.6 kg |
| Width | 296 mm |
| Depth | 239 mm |
| Height | 120 mm |
| Remote control included | Yes |
| Remote control type | IR |
| Manual | Yes |
| Harmonized System (HS) code | 85286200 |
| Description |

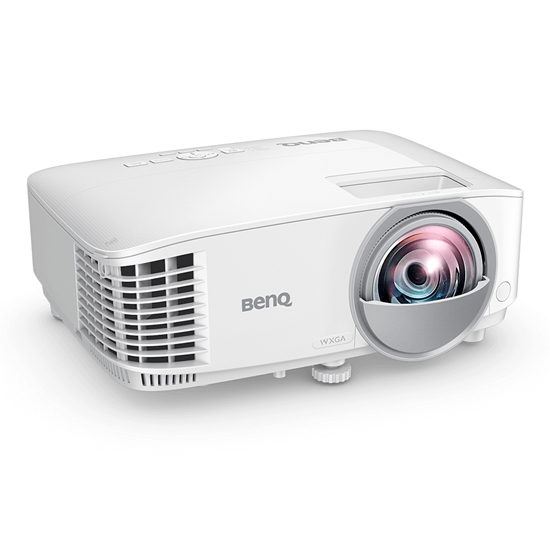

| BenQ MW809STH. Projector brightness: 3600 ANSI lumens, Projection technology: D-ILA, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 10000 h. Offset: 105%. Supported 3D formats: Frame Sequential, Frame packing, Side by side, Top and bottom, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1200 (WUXGA), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size |
