| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scanning | Yes |
| Colour scanning | Yes |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 30 ppm |
| ADF scan speed (colour, A4) | 30 ppm |
| Duplex ADF scan speed (b/w, A4) | 60 ipm |
| Duplex ADF scan speed (colour, A4) | 60 ipm |
| Scanner type | Sheet-fed scanner |
| Built-in display | No |
| Product colour | Black |
| Sensor type | CMOS CIS |
| Daily duty cycle (max) | 3500 pages |
| Light source | RGB LED |
| Scan drivers | ISIS, TWAIN |
| Standard input capacity | 60 sheets |
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plastic Card |
| Multi feed detection | Yes |
| Media thickness (min) | 0.06 mm |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 3 m |
| USB port | Yes |
| USB version | 2.0 |
| Standard interfaces | USB 2.0 |
| Power supply type | AC |
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 1.4 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100-240 V |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Operating temperature (T-T) | 10 - 32.5 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Width | 291 mm |
| Depth | 253 mm |
| Height | 231 mm |
| Weight | 2.8 kg |
| Cables included | AC, USB |
| AC adapter included | Yes |
| Scan media weight | 27 - 209 g/m² |
| Sustainability certificates | RoHS, ENERGY STAR |
| Harmonized System (HS) code | 84716070 |
| Description |

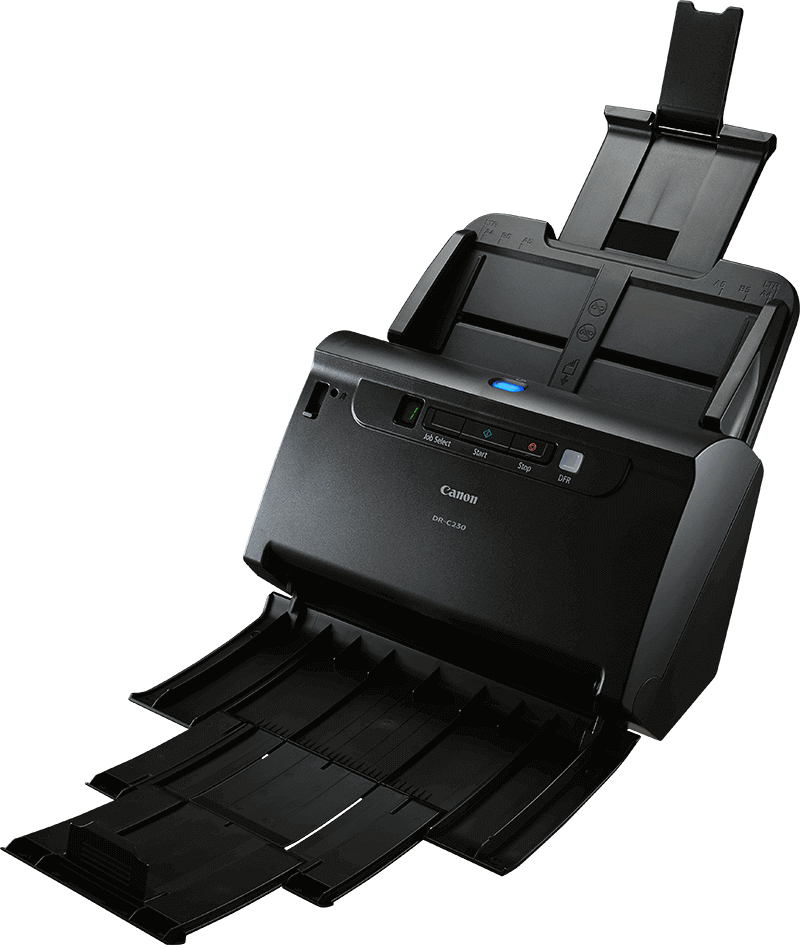

| Canon imageFORMULA DR-C230. Maximum scan size: 216 x 3000 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: Sheet-fed scanner, Product colour: Black. Sensor type: CMOS CIS, Daily duty cycle (max): 3500 pages, Light source: RGB LED. Standard input capacity: 60 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Media thickness (min): 0.06 mm |
