    Iepriekšējais produktsDeepCool PF400 power supply...
    Nākamais produktsDeepCool PK550D power suppl...
    Ražotājs: DEEPCOOL

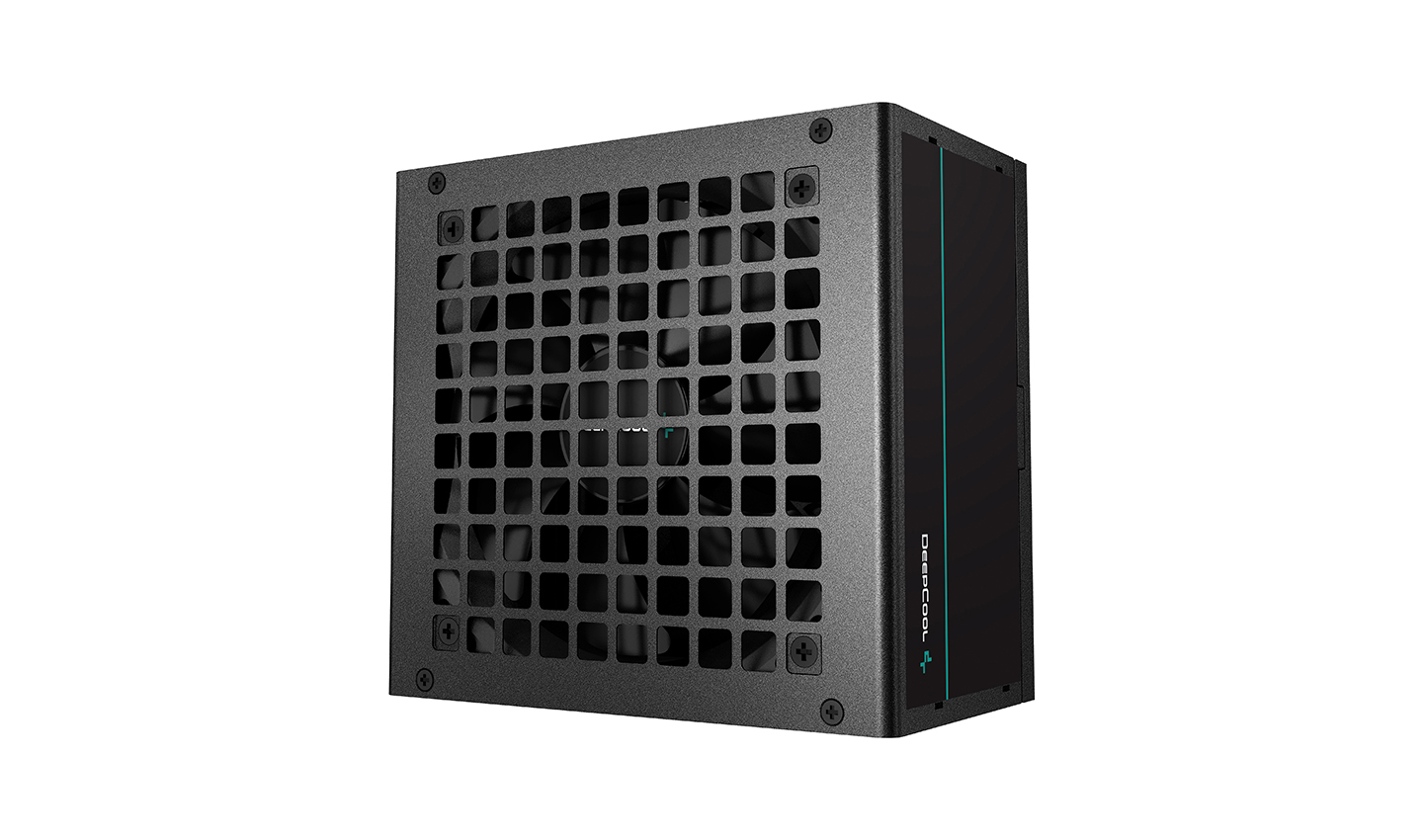

    Deepcool PF500


    €54,30 ar pvn

    Artikuls: ST05639301
    Preces kods: R-PF500D-HA0B-EU
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    Plates izmērs (Form Factor) ATX
    Krāsa Melna
    Barošanas bloks 500W - 550W
    Total power500 W
    AC input voltage220 - 240 V
    AC input frequency50 Hz
    Combined power (+3.3V)100 W
    Combined power (+12V)480 W
    Combined power (+5V)100 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)12.5 W
    Max output current (+3.3V)15 A
    Max output current (+12V)40 A
    Max output current (+5V)15 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)2.5 A
    Hold time16 ms
    Efficiency85%
    Power protection featuresOver power, Over voltage, Short circuit, Under voltage
    Motherboard power connector20+4 pin ATX
    Motherboard power cable length55 cm
    Number of SATA power connectors4
    SATA power cable length450,600,750,900 mm
    EPS power connector (4+4 pin)Y
    PCI Express power connectors (6+2 pin)2
    PurposePC/Server
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS
    ATX version2.4
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    On/off switchY
    Operating temperature (T-T)0 - 40 °C
    Cables includedAC
    Width150 mm
    Depth140 mm
    Height86 mm
    Package typeBox
    Description
    DeepCool PF500. Total power: 500 W, AC input voltage: 220 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
    Description
    Jauda: 500W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
    Gross depth (mm)260
    Gross height (mm)180
    Gross weight1.647
    Gross width (mm)115
    Net weight0.412
    Packing quantity5
    Paper/Pasteboard935
    Plastic (No PET)300.00
    Tare weight (kg)1.235
    Volume (m3)0.005382
    Embeeded batteryNo
    WEEE taxNo
    WEE classificationCL109:6:2017-04-01
    Nominal power500
    Producer product namePF500
    Other features120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
    Producer product familyPSU
    Form factorATX12V V2.4
    PCI Express power connectors (6+2 pin)1
    Number of SATA power connectors2
    ATX power connector (20+4 pin)1
    EPS power connector (8-pin)1
    Colour of productBlack
    80 PLUS certification80 PLUS
    Gross depth master carton605
    Gross width master carton550
    Gross height master carton215
    Net weight master carton16.47
    Tare weight master carton1.216
    Palette Qty240
    ProducerDeepcool
    Warranty36

    Specifikācija
    Plates izmērs (Form Factor) ATX
    Krāsa Melna
    Barošanas bloks 500W - 550W
    Total power500 W
    AC input voltage220 - 240 V
    AC input frequency50 Hz
    Combined power (+3.3V)100 W
    Combined power (+12V)480 W
    Combined power (+5V)100 W
    Combined power (-12V)3.6 W
    Combined power (+5Vsb)12.5 W
    Max output current (+3.3V)15 A
    Max output current (+12V)40 A
    Max output current (+5V)15 A
    Max output current (-12V)0.3 A
    Max output current (+5Vsb)2.5 A
    Hold time16 ms
    Efficiency85%
    Power protection featuresOver power, Over voltage, Short circuit, Under voltage
    Motherboard power connector20+4 pin ATX
    Motherboard power cable length55 cm
    Number of SATA power connectors4
    SATA power cable length450,600,750,900 mm
    EPS power connector (4+4 pin)Y
    PCI Express power connectors (6+2 pin)2
    PurposePC/Server
    Power supply unit (PSU) form factorATX
    80 PLUS certification80 PLUS
    ATX version2.4
    Mean time between failures (MTBF)100000 h
    Product colourBlack
    Cooling typeActive
    Fan diameter12 cm
    Number of fans1 fan(s)
    On/off switchY
    Operating temperature (T-T)0 - 40 °C
    Cables includedAC
    Width150 mm
    Depth140 mm
    Height86 mm
    Package typeBox
    Description
    DeepCool PF500. Total power: 500 W, AC input voltage: 220 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,600,750,900 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
    Description
    Jauda: 500W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
    Gross depth (mm)260
    Gross height (mm)180
    Gross weight1.647
    Gross width (mm)115
    Net weight0.412
    Packing quantity5
    Paper/Pasteboard935
    Plastic (No PET)300.00
    Tare weight (kg)1.235
    Volume (m3)0.005382
    Embeeded batteryNo
    WEEE taxNo
    WEE classificationCL109:6:2017-04-01
    Nominal power500
    Producer product namePF500
    Other features120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
    Producer product familyPSU
    Form factorATX12V V2.4
    PCI Express power connectors (6+2 pin)1
    Number of SATA power connectors2
    ATX power connector (20+4 pin)1
    EPS power connector (8-pin)1
    Colour of productBlack
    80 PLUS certification80 PLUS
    Gross depth master carton605
    Gross width master carton550
    Gross height master carton215
    Net weight master carton16.47
    Tare weight master carton1.216
    Palette Qty240
    ProducerDeepcool
    Warranty36
