    Ražotājs: DELOCK

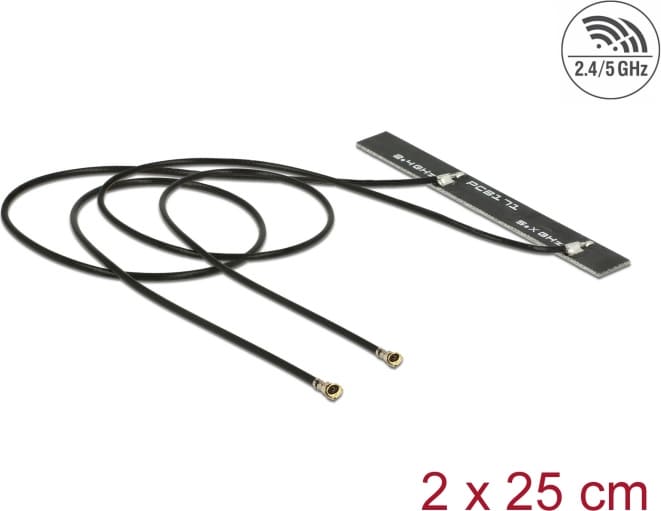

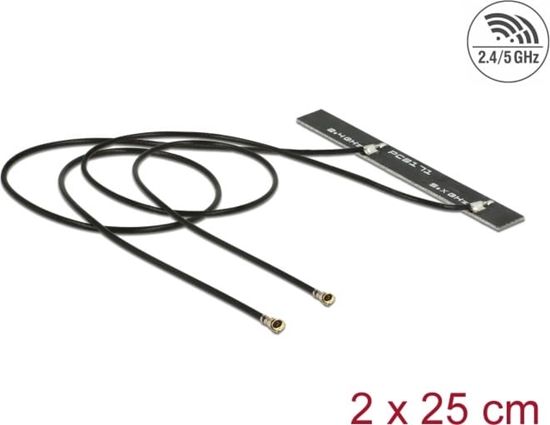

    Delock WLAN Twin Antenna 2 x MHF IV / HSC MXHP32 compatible plug 802.11 ac/a/h/b/g/n 5 dBi 250 mm PCB internal adhesive mounting


    €24,22 ar pvn

    Artikuls: ST05158559
    Preces kods: 89571
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Status7 dienas
    Description
    This WLAN twin antenna is designed to integrate into devices with MHF IV connectors. These are two separate antennas with common ground.
    System requirements:
    • Device with two free MHF IV connectors
    Specification:
    • Connectors: 2 x miniature RF coaxial plug MHF IV (IPEX), MXHP32 (HSC) compatible
    • Frequency range:
      2400 - 2500 MHz
      5150 - 5875 MHz
    • Antenna gain: 5 dBi
    • Impedance: 50 Ohm
    • Cable type: coaxial
    • Cable attenuation:
      3.20 dB @ 2.4 GHz per meter
      5.05 dB @ 5.0 GHz per meter
    • Cable diameter: ca. 1.13 mm
    • Cable length incl. connectors: ca. 250 mm
    • Operating temperature: -10 °C ~ 50 °C
    • Dimensions (LxWxH): ca. 61.6 x 7.0 x 1.6 mm
    Package content:
    • Antenna
    Data sheet:
    http://www.delock.de/produkt/89571/pdf.html?sprache=en
