    Iepriekšējais produktsEaton 9E 1000i
    Nākamais produktsEATON 9E 3000i Rack 2U 3KVA
    Ražotājs: EATON

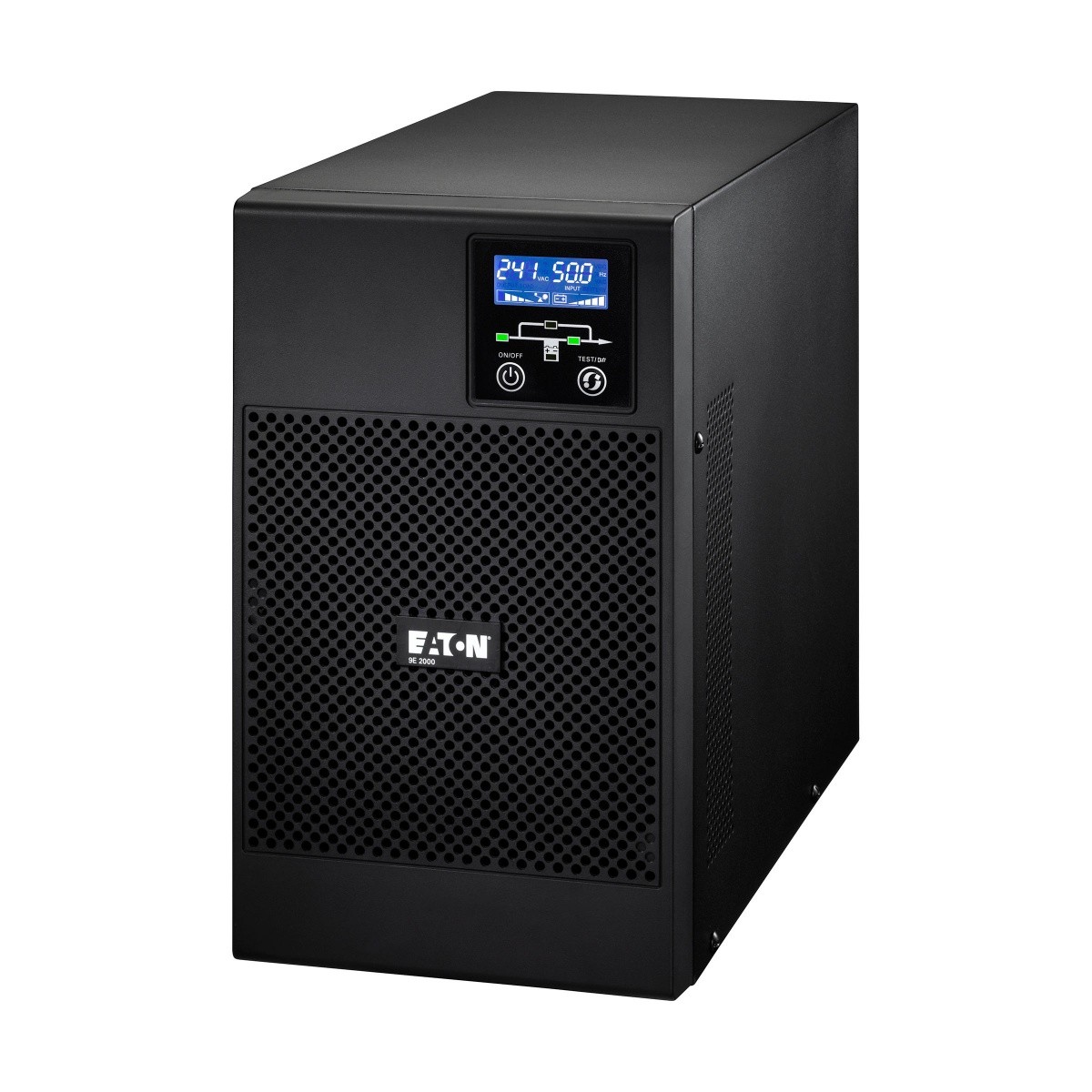

    Eaton 9E 2000i


    €708,32 ar pvn

    Artikuls: ST04018836
    Preces kods: 9E2000I
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    LV
    PL
    PL
    LT
    LT

    Specifikācija
    Ligzda (RS232) Jā
    Ligzda (USB) Jā
    Tips Double Conversion Online
    Ligzda (IEC320) Jā
    Nominālais efekts (VA) 1000
    Nominālais efekts (VA) 2000
    Izejas jauda 900
    Apparent power2000 VA
    Active power1600 (Watt)
    UPS Architectureon-line double conversion
    The shape of the output voltageFull sine wave
    Number of phases input1 (230V)
    No. of batteries6
    Voltage12 (Volt)
    Battery capacity7 (Ah)
    Chassis typeTower
    Filters / protectionOverdischarge
    Input power portsIEC-C14
    Output power ports6 x IEC-C13
    I/O connectors1 x RS-232 (COM)
    I/O connectors1 x USB 2.0
    Environment requirements
    • Wysokość n.p.m. 3000 m
    • Zakres temperatury 0°C do 40°C
    • Wilgotność względna 0-95%, bez kondensacji
    ColorBlack
    Dimensions

    399 x 330 x 190 mm
    Weight15.8 (kilogram)
    Width335
    Height500
    Depth465
    Weight24100
    Description

    Zasilacz awaryjny 9E UPS, 2000 VA 1600 W 9E2000I

    UPS topologyDouble-conversion (Online)
    Output power capacity2 kVA
    Output power1600 W
    Input operation voltage (min)100 V
    Input operation voltage (max)300 V
    Input frequency50/60 Hz
    Output operation voltage (min)208 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Efficiency91%
    Noise level40 dB
    AC outlet typesC13 coupler, C19 coupler
    Power plugC13 coupler
    AC outlets quantity6 AC outlet(s)
    USB portYes
    Serial interfaceYes
    Serial interface typeRS-232
    Serial ports quantity1
    RS-232 ports1
    Typical backup time at full load4 min
    Typical backup time at half load12 min
    Form factorTower
    Product colourBlack
    SafetyIEC/EN 62040-1
    CertificationIEC/EN 62040 -2, CE, CB report (TUV)
    Operating temperature (T-T)0 - 40 °C
    Width330 mm
    Depth190 mm
    Height399 mm
    Weight22.4 kg
    Description
    Eaton 9E 2000I. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Form factor: Tower, Product colour: Black, Safety: IEC/EN 62040-1. Width: 330 mm, Depth: 190 mm, Height: 399 mm
    Description
    1600 Watts | 2000 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13 | 1xRS232 | 1xUSB | Desktop/pedestal
    DescriptionEATON 9E 2000i
    VatTypeVAT
    Weight23.600000000
    Height332.000000000
    Width462.000000000
    Length500.000000000
    Description
    EATON 9E 2000i
    ShortDescEaton 9E 2000i
    UPS Power (VA)1000 VA
    UPS Power (W)900 W
    Runtime (min)-
    Input Voltage (V)176-300V without derating (up to 100–300V with derating)
    Output Voltage (V)208-240 V
    Input Frequency (Hz)50/60 Hz autoselect
    Output Frequency (Hz)50/60 Hz autoselect
    Input ConnectionsIEC-230-C14
    Output Connections4x IEC-320-C13
    Waveform TypeOnline double conversion
    Recharge time (hours)-
    Battery Type-
    TopologyOnline
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • USB port
  • RS232 serial port
    		•
    Control Panel-
    Alarm-
    Color-
    Form FactorTower
    Package Contents-
    Width228 mm
    Depth144 mm
    Height356 mm
    Net Weight9.500 Kg
    Gross Weight23.750 kg
    DescriptionEATON 9E 2000i
    VatTypeVAT
    Weight23.600000000
    Height332.000000000
    Width462.000000000
    Length500.000000000
    Description
    EATON 9E 2000i
    Gross depth (mm)330.00, 330.00
    Gross height (mm)464.00, 464.00
    Gross weight24.00
    Gross width (mm)496.00, 496.00
    Net weight22.00
    Packing quantity1.00, 1.00
    Paper/Pasteboard1800.00, 1800.00
    Plastic (No PET)200.00, 200.00
    Tare weight (kg)2.00, 2.00
    TI weight (kg)16.00, 16.00
    Volume (m3)0.08, 0.08
    Classification of batteryCL126:NE:2016-12-09, CL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09, CL127:KT:2016-12-09
    Type of batteryBattery, Battery
    Embeeded batteryYes, Yes
    WEEE taxYes, Yes
    WEE classificationCL109:6:2017-04-01, CL109:6:2017-04-01
    Producer product name9E2000I
    UPS topologyOn line
    Capacity1600
    Capacity2000
    Other featuresHigh number of outlets (8 x C13) for optimal power distribution to loads. Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system
    Waveform Sine wave
    Form factorTower
    Producer product familyOnLine UPS
    Power plugC14
    Palette Qty23, 23
    ProducerEaton, Eaton
    Warranty36
    Description
    The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.

    Specifikācija
    Ligzda (RS232) Jā
    Ligzda (USB) Jā
    Tips Double Conversion Online
    Ligzda (IEC320) Jā
    Nominālais efekts (VA) 1000
    Nominālais efekts (VA) 2000
    Izejas jauda 900
    Apparent power2000 VA
    Active power1600 (Watt)
    UPS Architectureon-line double conversion
    The shape of the output voltageFull sine wave
    Number of phases input1 (230V)
    No. of batteries6
    Voltage12 (Volt)
    Battery capacity7 (Ah)
    Chassis typeTower
    Filters / protectionOverdischarge
    Input power portsIEC-C14
    Output power ports6 x IEC-C13
    I/O connectors1 x RS-232 (COM)
    I/O connectors1 x USB 2.0
    Environment requirements
    • Wysokość n.p.m. 3000 m
    • Zakres temperatury 0°C do 40°C
    • Wilgotność względna 0-95%, bez kondensacji
    ColorBlack
    Dimensions

    399 x 330 x 190 mm
    Weight15.8 (kilogram)
    Width335
    Height500
    Depth465
    Weight24100
    Description

    Zasilacz awaryjny 9E UPS, 2000 VA 1600 W 9E2000I

    UPS topologyDouble-conversion (Online)
    Output power capacity2 kVA
    Output power1600 W
    Input operation voltage (min)100 V
    Input operation voltage (max)300 V
    Input frequency50/60 Hz
    Output operation voltage (min)208 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Efficiency91%
    Noise level40 dB
    AC outlet typesC13 coupler, C19 coupler
    Power plugC13 coupler
    AC outlets quantity6 AC outlet(s)
    USB portYes
    Serial interfaceYes
    Serial interface typeRS-232
    Serial ports quantity1
    RS-232 ports1
    Typical backup time at full load4 min
    Typical backup time at half load12 min
    Form factorTower
    Product colourBlack
    SafetyIEC/EN 62040-1
    CertificationIEC/EN 62040 -2, CE, CB report (TUV)
    Operating temperature (T-T)0 - 40 °C
    Width330 mm
    Depth190 mm
    Height399 mm
    Weight22.4 kg
    Description
    Eaton 9E 2000I. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Form factor: Tower, Product colour: Black, Safety: IEC/EN 62040-1. Width: 330 mm, Depth: 190 mm, Height: 399 mm
    Description
    1600 Watts | 2000 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13 | 1xRS232 | 1xUSB | Desktop/pedestal
    DescriptionEATON 9E 2000i
    VatTypeVAT
    Weight23.600000000
    Height332.000000000
    Width462.000000000
    Length500.000000000
    Description
    EATON 9E 2000i
    ShortDescEaton 9E 2000i
    UPS Power (VA)1000 VA
    UPS Power (W)900 W
    Runtime (min)-
    Input Voltage (V)176-300V without derating (up to 100–300V with derating)
    Output Voltage (V)208-240 V
    Input Frequency (Hz)50/60 Hz autoselect
    Output Frequency (Hz)50/60 Hz autoselect
    Input ConnectionsIEC-230-C14
    Output Connections4x IEC-320-C13
    Waveform TypeOnline double conversion
    Recharge time (hours)-
    Battery Type-
    TopologyOnline
    USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • USB port
  • RS232 serial port
    		•
    Control Panel-
    Alarm-
    Color-
    Form FactorTower
    Package Contents-
    Width228 mm
    Depth144 mm
    Height356 mm
    Net Weight9.500 Kg
    Gross Weight23.750 kg
    DescriptionEATON 9E 2000i
    VatTypeVAT
    Weight23.600000000
    Height332.000000000
    Width462.000000000
    Length500.000000000
    Description
    EATON 9E 2000i
    Gross depth (mm)330.00, 330.00
    Gross height (mm)464.00, 464.00
    Gross weight24.00
    Gross width (mm)496.00, 496.00
    Net weight22.00
    Packing quantity1.00, 1.00
    Paper/Pasteboard1800.00, 1800.00
    Plastic (No PET)200.00, 200.00
    Tare weight (kg)2.00, 2.00
    TI weight (kg)16.00, 16.00
    Volume (m3)0.08, 0.08
    Classification of batteryCL126:NE:2016-12-09, CL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09, CL127:KT:2016-12-09
    Type of batteryBattery, Battery
    Embeeded batteryYes, Yes
    WEEE taxYes, Yes
    WEE classificationCL109:6:2017-04-01, CL109:6:2017-04-01
    Producer product name9E2000I
    UPS topologyOn line
    Capacity1600
    Capacity2000
    Other featuresHigh number of outlets (8 x C13) for optimal power distribution to loads. Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system
    Waveform Sine wave
    Form factorTower
    Producer product familyOnLine UPS
    Power plugC14
    Palette Qty23, 23
    ProducerEaton, Eaton
    Warranty36
    Description
    The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.
