    Iepriekšējais produktsEaton 9PX 1500i RT2U Netpac...
    Nākamais produktsEaton 9PX 2200i RT2U
    Ražotājs: EATON

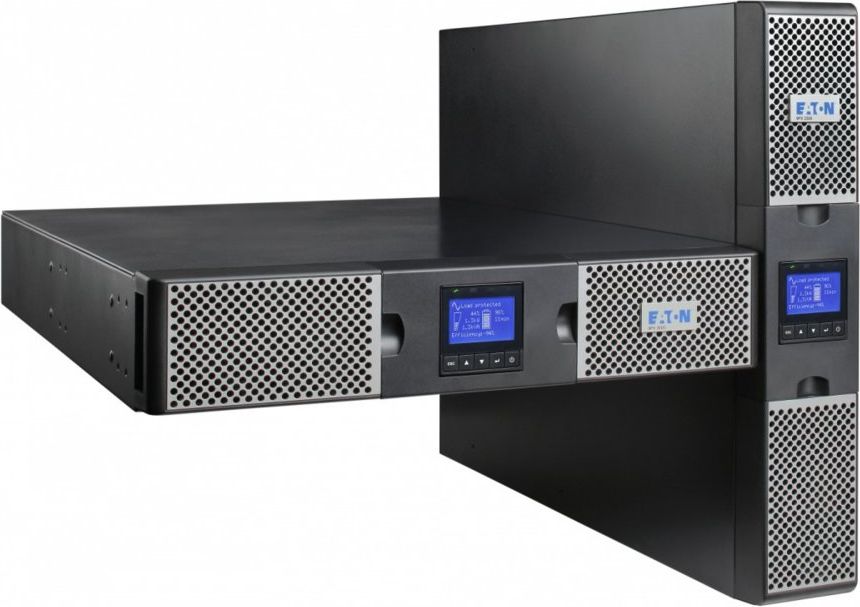

    Eaton 9PX 1kVA uninterruptible power supply (UPS) Double-conversion (Online) 1000 W 8 AC outlet(s)


    €1165,34 ar pvn

    Artikuls: ST02209371
    Preces kods: 9PX1000IRT2U
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    DE
    PL

    Specifikācija
    Nominālais efekts (VA) 1000
    Izejas jauda 1000
    Ligzda (IEC320) Jā
    Ligzda (RS232) Jā
    Ligzda (USB) Jā
    Tips Double Conversion Online
    Apparent power1000 VA
    Active power1000 (Watt)
    UPS Architectureon-line double conversion
    Number of phases input1 (230V)
    Chassis typeTower
    Input power portsIEC-C14
    Output power ports8 x IEC-C13
    I/O connectors1 x RS-232 (COM)
    I/O connectors1 x USB (Type B)
    ColorBlack
    Dimensions

    86.5 x 440 x 450 mm
    Weight17.4 (kilogram)
    Video
    Video
    Width585
    Height545
    Depth235
    Weight23400
    UPS topologyDouble-conversion (Online)
    Output power capacity1 kVA
    Output power1000 W
    WaveformPure sine
    Input operation voltage (min)176 V
    Input operation voltage (max)276 V
    Input frequency40/70 Hz
    Output operation voltage (min)200 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Number of input phases1
    Efficiency91.5%
    Power factor1
    Noise level35 dB
    Power protection featuresBattery discharge
    AC outlet typesC13 coupler
    Power plugC14 coupler
    AC outlets quantity8 AC outlet(s)
    USB portY
    USB 2.0 ports quantity1
    Serial interfaceY
    Serial interface typeRS-232
    RS-232 ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at full load6 min
    Typical backup time at half load16.5 min
    Hot-swap batteryY
    Automatic battery testY
    Form factorRackmount/Tower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsY
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
    Operating temperature (T-T)0 - 40 °C
    Sustainability certificatesENERGY STAR
    Width440 mm
    Depth450 mm
    Height86.5 mm
    Weight17.4 kg
    Rack mount kitY
    Management card includedN
    Bundled softwareIntelligent Power Software suite
    Harmonized System (HS) code85078000
    Nominal input voltage230 V
    Description
    Eaton 9PX 1kVA. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6 min, Typical backup time at half load: 16.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 450 mm, Height: 86.5 mm
    Description
    1000 Watts | 1000 VA | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13 | 1xRS232 | 1xUSB | Rack 2U
    DescriptionEATON 9PX 1000i 1000VA/1000W Tower
    VatTypeVAT
    Weight23.580000000
    Height230.000000000
    Width550.000000000
    Length580.000000000
    Description
    EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U 19Z Kit Runtime 9/20min Voll/Halblast
    DescriptionEATON 9PX 1000i 1000VA/1000W Tower
    VatTypeVAT
    Weight23.580000000
    Height230.000000000
    Width550.000000000
    Length580.000000000
    Description
    EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U 19Z Kit Runtime 9/20min Voll/Halblast

    Specifikācija
    Nominālais efekts (VA) 1000
    Izejas jauda 1000
    Ligzda (IEC320) Jā
    Ligzda (RS232) Jā
    Ligzda (USB) Jā
    Tips Double Conversion Online
    Apparent power1000 VA
    Active power1000 (Watt)
    UPS Architectureon-line double conversion
    Number of phases input1 (230V)
    Chassis typeTower
    Input power portsIEC-C14
    Output power ports8 x IEC-C13
    I/O connectors1 x RS-232 (COM)
    I/O connectors1 x USB (Type B)
    ColorBlack
    Dimensions

    86.5 x 440 x 450 mm
    Weight17.4 (kilogram)
    Video
    Video
    Width585
    Height545
    Depth235
    Weight23400
    UPS topologyDouble-conversion (Online)
    Output power capacity1 kVA
    Output power1000 W
    WaveformPure sine
    Input operation voltage (min)176 V
    Input operation voltage (max)276 V
    Input frequency40/70 Hz
    Output operation voltage (min)200 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Number of input phases1
    Efficiency91.5%
    Power factor1
    Noise level35 dB
    Power protection featuresBattery discharge
    AC outlet typesC13 coupler
    Power plugC14 coupler
    AC outlets quantity8 AC outlet(s)
    USB portY
    USB 2.0 ports quantity1
    Serial interfaceY
    Serial interface typeRS-232
    RS-232 ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at full load6 min
    Typical backup time at half load16.5 min
    Hot-swap batteryY
    Automatic battery testY
    Form factorRackmount/Tower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsY
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
    Operating temperature (T-T)0 - 40 °C
    Sustainability certificatesENERGY STAR
    Width440 mm
    Depth450 mm
    Height86.5 mm
    Weight17.4 kg
    Rack mount kitY
    Management card includedN
    Bundled softwareIntelligent Power Software suite
    Harmonized System (HS) code85078000
    Nominal input voltage230 V
    Description
    Eaton 9PX 1kVA. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 6 min, Typical backup time at half load: 16.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 450 mm, Height: 86.5 mm
    Description
    1000 Watts | 1000 VA | Input ports Single, IEC320 C14 | Output power connector type IEC 320 C13 | 1xRS232 | 1xUSB | Rack 2U
    DescriptionEATON 9PX 1000i 1000VA/1000W Tower
    VatTypeVAT
    Weight23.580000000
    Height230.000000000
    Width550.000000000
    Length580.000000000
    Description
    EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U 19Z Kit Runtime 9/20min Voll/Halblast
    DescriptionEATON 9PX 1000i 1000VA/1000W Tower
    VatTypeVAT
    Weight23.580000000
    Height230.000000000
    Width550.000000000
    Length580.000000000
    Description
    EATON 9PX 1000i 1000VA/1000W Tower/Rack USV RS-232/USB 2U 19Z Kit Runtime 9/20min Voll/Halblast
