    Ražotājs: EATON

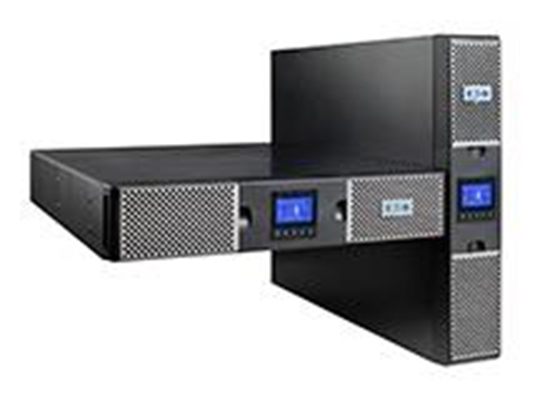

    Eaton 9PX 2200i RT2U Netpack


    €2133,01 ar pvn

    Artikuls: ST00611392
    Preces kods: 9PX2200IRTN
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    DE
    PL
    LV
    DE
    LT
    PL

    Specifikācija
    Nominālais efekts (VA) 2200
    Ligzda (IEC320)
    Ligzda (RJ-45)
    Ligzda (USB)
    Tips Double Conversion Online
    Ligzda (RS232)
    Akumulatori Akumulatori
    Apparent power2200 VA
    Active power2200 (Watt)
    UPS Architectureon-line double conversion
    Number of phases input1 (230V)
    Chassis typeRack
    Rack dimensions2U
    Input power portsIEC-C20
    Output power ports2 x IEC-C19
    Output power ports8 x IEC-C13
    ConnectorsRS-232 (COM)
    Connectors1 x USB (Typ B)
    ConnectorsRJ-45
    Dimensions

    86,5 x 440 x 605 mm

    Video
    Video
    Width585
    Height780
    Depth235
    Weight32600
    UPS topologyDouble-conversion (Online)
    Output power capacity2.2 kVA
    Output power2200 W
    WaveformPure sine
    Input operation voltage (min)176 V
    Input operation voltage (max)276 V
    Input frequency40/70 Hz
    Output operation voltage (min)200 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Number of input phases1
    Efficiency93.5%
    Power factor1
    Noise level40 dB
    AC outlet typesC13 coupler, C19 coupler
    Power plugC20 coupler
    AC outlets quantity10 AC outlet(s)
    USB portYes
    USB 2.0 ports quantity1
    RS-232 ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at half load10 min
    Hot-swap batteryYes
    Automatic battery testYes
    Form factorRackmount/Tower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsYes
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
    Operating temperature (T-T)0 - 40 °C
    Sustainability certificatesENERGY STAR
    Width440 mm
    Depth605 mm
    Height86.5 mm
    Weight25 kg
    Rack mount kitYes
    Management card includedYes
    Bundled softwareIntelligent Power Software suite
    Harmonized System (HS) code85078000
    Nominal output voltage230 V
    Nominal input voltage230 V
    Description
    Eaton 9PX2200IRTN. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 10 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 605 mm, Height: 86.5 mm
    Description
    2200 Watts | 2200 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C20 | Output power connector type IEC 320 C13, IEC 320 C19 | 1xRS232 | 1xUSB | Rack
    DescriptionEATON 9PX 2200i RT2U Netpack
    VatTypeVAT
    Weight45.600000000
    Height250.000000000
    Width585.000000000
    Length780.000000000
    Description
    EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 5/14min Voll/Halblast
    ShortDescEaton 9PX 2200i RT2U Netpack
    UPS Power (VA)2200 VA
    UPS Power (W)2200 W
    Runtime (min)-
    Input Voltage (V)176-276 V (100-276 V with derating)
    Output Voltage (V)230V default (200/208/220/230/240V)
    Input Frequency (Hz)40-70 Hz
    Output Frequency (Hz)50-60 Hz
    Input ConnectionsC20
    Output Connections
  • 8x C13
  • 2x C19
  • Waveform TypeSine wave
    Recharge time (hours)-
    Battery Type
  • Sealed
  • Lead-acid
  • Topology
  • Online
  • Double-conversion
  • USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)
  • Control PanelMultilingual graphical LCD display
    Alarm-
    ColorBlack/Silver
    Form Factor
  • Rack
  • Tower
  • Package Contents
  • Network Management Card
  • Input cable
  • Rack-mounting kit
  • 2x Supports for tower mounting
  • Cable locking system
  • USB cable
  • Serial cable
  • 2x IEC-IEC cables
  • Quickstart guide
  • Safety instructions
  • Width440 mm
    Depth605 mm
    Height86.5 mm
    Net Weight25.020 kg
    Gross Weight32.600 kg
    DescriptionEATON 9PX 2200i RT2U Netpack
    VatTypeVAT
    Weight45.600000000
    Height250.000000000
    Width585.000000000
    Length780.000000000
    Description
    EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 5/14min Voll/Halblast
    Gross depth (mm)775.00
    Gross height (mm)240.00
    Gross weight31.8
    Gross width (mm)583.00
    Net weight29.8
    Packing quantity1.00
    Tare weight (kg)2.00
    Volume (m3)0.11
    Embeeded batteryYes
    WEEE taxYes
    ProducerEaton
    Paper/Pasteboard1550
    Plastic (No PET)50
    TI weight (kg)16
    WEE classificationCL109:5:2017-04-01
    Composition of batteryCL127:KT:2016-12-09
    Classification of batteryCL126:NE:2016-12-09
    Type of batteryAccumulator
    Palette Qty16
    UPS topologyOn line
    Capacity2200
    Producer product name9PX 2200i RT2U Netpack
    Producer product familyUPS
    Capacity2200
    Description
    Eaton 9PX 2200i RT2U Netpack (9PX2200IRTN)

    Specifikācija
    Nominālais efekts (VA) 2200
    Ligzda (IEC320)
    Ligzda (RJ-45)
    Ligzda (USB)
    Tips Double Conversion Online
    Ligzda (RS232)
    Akumulatori Akumulatori
    Apparent power2200 VA
    Active power2200 (Watt)
    UPS Architectureon-line double conversion
    Number of phases input1 (230V)
    Chassis typeRack
    Rack dimensions2U
    Input power portsIEC-C20
    Output power ports2 x IEC-C19
    Output power ports8 x IEC-C13
    ConnectorsRS-232 (COM)
    Connectors1 x USB (Typ B)
    ConnectorsRJ-45
    Dimensions

    86,5 x 440 x 605 mm

    Video
    Video
    Width585
    Height780
    Depth235
    Weight32600
    UPS topologyDouble-conversion (Online)
    Output power capacity2.2 kVA
    Output power2200 W
    WaveformPure sine
    Input operation voltage (min)176 V
    Input operation voltage (max)276 V
    Input frequency40/70 Hz
    Output operation voltage (min)200 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Number of input phases1
    Efficiency93.5%
    Power factor1
    Noise level40 dB
    AC outlet typesC13 coupler, C19 coupler
    Power plugC20 coupler
    AC outlets quantity10 AC outlet(s)
    USB portYes
    USB 2.0 ports quantity1
    RS-232 ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at half load10 min
    Hot-swap batteryYes
    Automatic battery testYes
    Form factorRackmount/Tower
    Product colourBlack
    Rack capacity2U
    Display typeLCD
    LED indicatorsYes
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
    Operating temperature (T-T)0 - 40 °C
    Sustainability certificatesENERGY STAR
    Width440 mm
    Depth605 mm
    Height86.5 mm
    Weight25 kg
    Rack mount kitYes
    Management card includedYes
    Bundled softwareIntelligent Power Software suite
    Harmonized System (HS) code85078000
    Nominal output voltage230 V
    Nominal input voltage230 V
    Description
    Eaton 9PX2200IRTN. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 10 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 440 mm, Depth: 605 mm, Height: 86.5 mm
    Description
    2200 Watts | 2200 VA | Topology OnLine DoubleConvertion | Input ports Single, IEC320 C20 | Output power connector type IEC 320 C13, IEC 320 C19 | 1xRS232 | 1xUSB | Rack
    DescriptionEATON 9PX 2200i RT2U Netpack
    VatTypeVAT
    Weight45.600000000
    Height250.000000000
    Width585.000000000
    Length780.000000000
    Description
    EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 5/14min Voll/Halblast
    ShortDescEaton 9PX 2200i RT2U Netpack
    UPS Power (VA)2200 VA
    UPS Power (W)2200 W
    Runtime (min)-
    Input Voltage (V)176-276 V (100-276 V with derating)
    Output Voltage (V)230V default (200/208/220/230/240V)
    Input Frequency (Hz)40-70 Hz
    Output Frequency (Hz)50-60 Hz
    Input ConnectionsC20
    Output Connections
  • 8x C13
  • 2x C19
  • Waveform TypeSine wave
    Recharge time (hours)-
    Battery Type
  • Sealed
  • Lead-acid
  • Topology
  • Online
  • Double-conversion
  • USBYes
    SmartSlot-
    RJ-45-
    Other Connections
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)
  • Control PanelMultilingual graphical LCD display
    Alarm-
    ColorBlack/Silver
    Form Factor
  • Rack
  • Tower
  • Package Contents
  • Network Management Card
  • Input cable
  • Rack-mounting kit
  • 2x Supports for tower mounting
  • Cable locking system
  • USB cable
  • Serial cable
  • 2x IEC-IEC cables
  • Quickstart guide
  • Safety instructions
  • Width440 mm
    Depth605 mm
    Height86.5 mm
    Net Weight25.020 kg
    Gross Weight32.600 kg
    DescriptionEATON 9PX 2200i RT2U Netpack
    VatTypeVAT
    Weight45.600000000
    Height250.000000000
    Width585.000000000
    Length780.000000000
    Description
    EATON 9PX 2200i 2200VA/2200W Tower/Rack USV RS-232/USB 2U Network Card 19Z Kit Runtime 5/14min Voll/Halblast
    Gross depth (mm)775.00
    Gross height (mm)240.00
    Gross weight31.8
    Gross width (mm)583.00
    Net weight29.8
    Packing quantity1.00
    Tare weight (kg)2.00
    Volume (m3)0.11
    Embeeded batteryYes
    WEEE taxYes
    ProducerEaton
    Paper/Pasteboard1550
    Plastic (No PET)50
    TI weight (kg)16
    WEE classificationCL109:5:2017-04-01
    Composition of batteryCL127:KT:2016-12-09
    Classification of batteryCL126:NE:2016-12-09
    Type of batteryAccumulator
    Palette Qty16
    UPS topologyOn line
    Capacity2200
    Producer product name9PX 2200i RT2U Netpack
    Producer product familyUPS
    Capacity2200
    Description
    Eaton 9PX 2200i RT2U Netpack (9PX2200IRTN)
