    Ražotājs: EQUIP

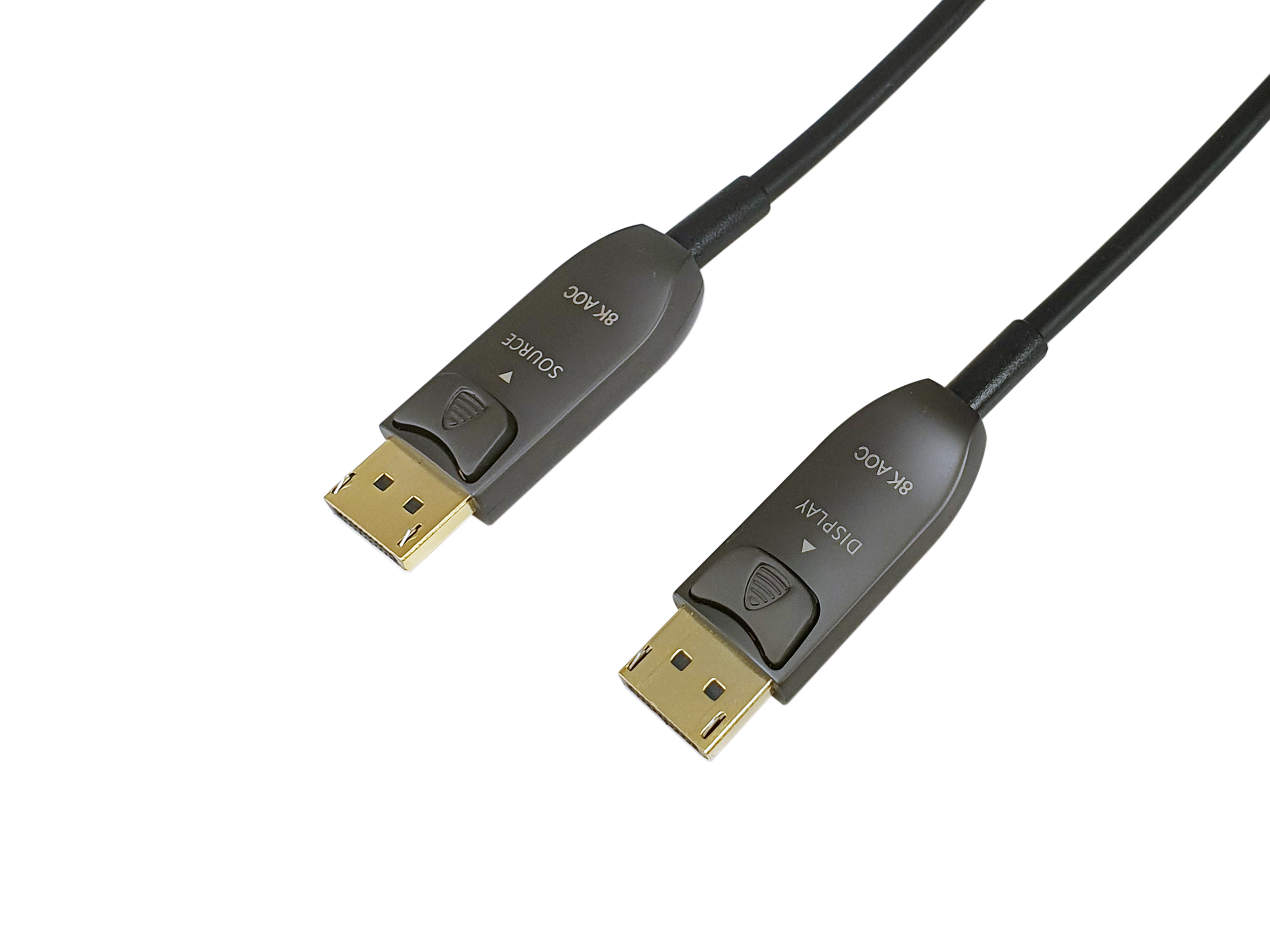

    Equip DisplayPort 1.4 Active Optical Cable, 15m 8K/60Hz


    €104,35 ar pvn

    Artikuls: ST07622550
    Preces kods: 119441
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Melna
    Krāsa Zelta
    Īpašības Display port
    Cable length15 m
    Connector 1DisplayPort
    Connector 2DisplayPort
    Connector 1 genderMale
    Connector 2 genderMale
    Maximum resolution7680 x 4320 pixels
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    Connector contacts platingGold
    DisplayPort version1.4
    Supported graphics resolutions1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
    Maximum refresh rate120 Hz
    HDCPYes
    HDCP version2.2
    Display Stream Compression (DSC)Yes
    High Dynamic Range (HDR) supportedYes
    Bandwidth32400 MB/s
    Multi-Stream Transport (MST)Yes
    Country of originChina
    Sustainability complianceYes
    Sustainability certificatesCE, RoHS
    Weight420 g
    Quantity per pack1 pc(s)
    Package width205 mm
    Package depth65 mm
    Package height205 mm
    Package typeBox
    Package weight610 g
    Master (outer) case width300 mm
    Master (outer) case length280 mm
    Master (outer) case height490 mm
    Master (outer) case gross weight12.2 kg
    Products per master (outer) case20 pc(s)
    Description
    Equip DisplayPort 1.4 Active Optical Cable, 15m 8K/60Hz. Cable length: 15 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: CE, RoHS. Weight: 420 g, Quantity per pack: 1 pc(s), Package width: 205 mm. Master (outer) case width: 300 mm, Master (outer) case length: 280 mm, Master (outer) case height: 490 mm
    Status7 dienas
    Description
    The equip 119441 DisplayPort 1.4 Active Optical Cable (AOC) is a high-performance cable used for transmitting digital video signals over long distances. Unlike copper cables, which have limitations on how far they can transmit signals without signal degradation, DisplayPort 1.4 AOC can transmit data up to 100 meters without the need for additional signal boosters or repeaters.

    The cable is designed to support the DisplayPort 1.4 standard, which offers high bandwidth and supports resolutions up to 8K at 60Hz or 4K at 120Hz. DisplayPort 1.4 AOC also supports High Dynamic Range (HDR) and Display Stream Compression (DSC), which allows for even higher resolutions and refresh rates.

    The active component of the cable is a microchip embedded in the connector that converts the electrical signals to optical signals, which are then transmitted over the optical fiber. The cable is also immune to electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for use in environments with high levels of electromagnetic interference.

    Cable length 15 m
    Connector 1 DisplayPort
    Connector 2 DisplayPort
    Connector 1 gender Male
    Connector 2 gender Male
    Maximum resolution 7680 x 4320 pixels
    Product colour Black
    Connector 1 form factor Straight
    Connector 2 form factor Straight
    Connector contacts plating Gold
    DisplayPort version 1.4
    Supported graphics resolutions 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
    Maximum refresh rate 120 Hz
    HDCP Y
    HDCP version 2.2
    Display Stream Compression (DSC) Y
    High Dynamic Range (HDR) supported Y
    Bandwidth 32400 MB/s
    Multi-Stream Transport (MST) Y
    Country of origin China
    Sustainability compliance Y
    Sustainability certificates CE, RoHS
    Weight 420 g
    Quantity per pack 1 pc(s)
    Package width 205 mm
    Package depth 65 mm
    Package height 205 mm
    Package type Box
    Package weight 610 g
    Master (outer) case width 300 mm
    Master (outer) case length 280 mm
    Master (outer) case height 490 mm
    Master (outer) case gross weight 12.2 kg
    Products per master (outer) case 20 pc(s)

    Specifikācija
    Krāsa Melna
    Krāsa Zelta
    Īpašības Display port
    Cable length15 m
    Connector 1DisplayPort
    Connector 2DisplayPort
    Connector 1 genderMale
    Connector 2 genderMale
    Maximum resolution7680 x 4320 pixels
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    Connector contacts platingGold
    DisplayPort version1.4
    Supported graphics resolutions1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
    Maximum refresh rate120 Hz
    HDCPYes
    HDCP version2.2
    Display Stream Compression (DSC)Yes
    High Dynamic Range (HDR) supportedYes
    Bandwidth32400 MB/s
    Multi-Stream Transport (MST)Yes
    Country of originChina
    Sustainability complianceYes
    Sustainability certificatesCE, RoHS
    Weight420 g
    Quantity per pack1 pc(s)
    Package width205 mm
    Package depth65 mm
    Package height205 mm
    Package typeBox
    Package weight610 g
    Master (outer) case width300 mm
    Master (outer) case length280 mm
    Master (outer) case height490 mm
    Master (outer) case gross weight12.2 kg
    Products per master (outer) case20 pc(s)
    Description
    Equip DisplayPort 1.4 Active Optical Cable, 15m 8K/60Hz. Cable length: 15 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: CE, RoHS. Weight: 420 g, Quantity per pack: 1 pc(s), Package width: 205 mm. Master (outer) case width: 300 mm, Master (outer) case length: 280 mm, Master (outer) case height: 490 mm
    Status7 dienas
    Description
    The equip 119441 DisplayPort 1.4 Active Optical Cable (AOC) is a high-performance cable used for transmitting digital video signals over long distances. Unlike copper cables, which have limitations on how far they can transmit signals without signal degradation, DisplayPort 1.4 AOC can transmit data up to 100 meters without the need for additional signal boosters or repeaters.

    The cable is designed to support the DisplayPort 1.4 standard, which offers high bandwidth and supports resolutions up to 8K at 60Hz or 4K at 120Hz. DisplayPort 1.4 AOC also supports High Dynamic Range (HDR) and Display Stream Compression (DSC), which allows for even higher resolutions and refresh rates.

    The active component of the cable is a microchip embedded in the connector that converts the electrical signals to optical signals, which are then transmitted over the optical fiber. The cable is also immune to electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for use in environments with high levels of electromagnetic interference.

    Cable length 15 m
    Connector 1 DisplayPort
    Connector 2 DisplayPort
    Connector 1 gender Male
    Connector 2 gender Male
    Maximum resolution 7680 x 4320 pixels
    Product colour Black
    Connector 1 form factor Straight
    Connector 2 form factor Straight
    Connector contacts plating Gold
    DisplayPort version 1.4
    Supported graphics resolutions 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
    Maximum refresh rate 120 Hz
    HDCP Y
    HDCP version 2.2
    Display Stream Compression (DSC) Y
    High Dynamic Range (HDR) supported Y
    Bandwidth 32400 MB/s
    Multi-Stream Transport (MST) Y
    Country of origin China
    Sustainability compliance Y
    Sustainability certificates CE, RoHS
    Weight 420 g
    Quantity per pack 1 pc(s)
    Package width 205 mm
    Package depth 65 mm
    Package height 205 mm
    Package type Box
    Package weight 610 g
    Master (outer) case width 300 mm
    Master (outer) case length 280 mm
    Master (outer) case height 490 mm
    Master (outer) case gross weight 12.2 kg
    Products per master (outer) case 20 pc(s)
