    Ražotājs: GIGABYTE

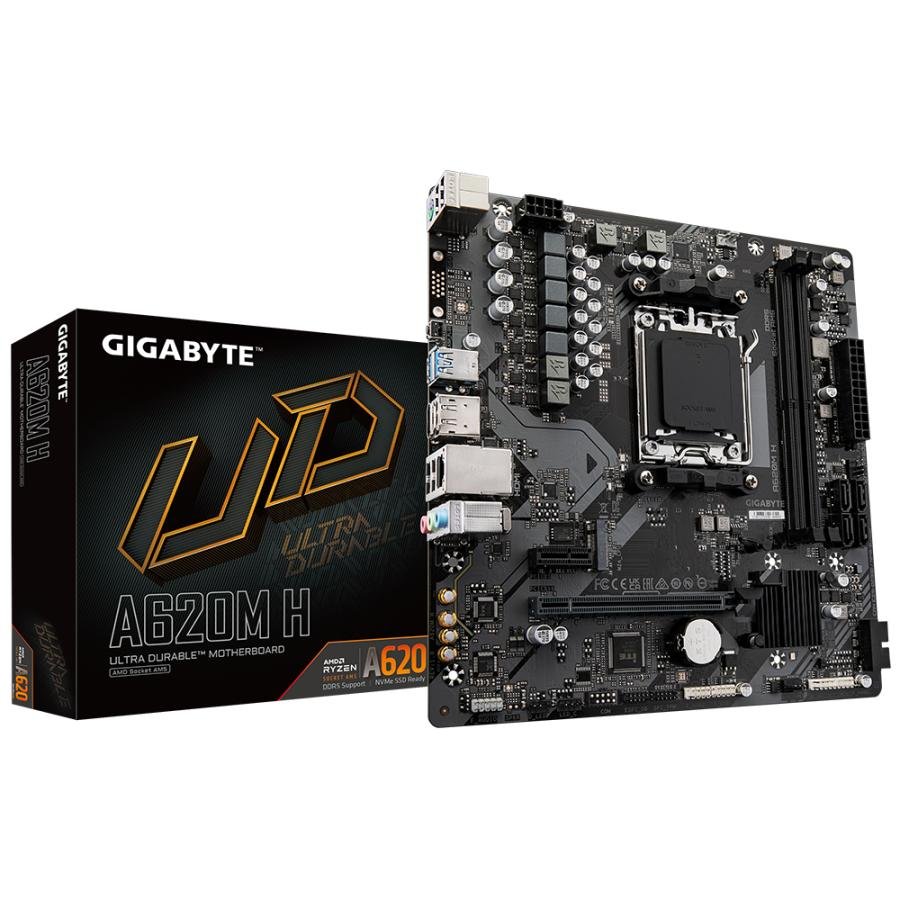

    Gigabyte A620M H (rev. 1.0) AMD A620 Socket AM5 micro ATX


    €99,82 ar pvn

    Artikuls: ST07389069
    Preces kods: A620M H
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    LV
    PL
    LT

    Specifikācija
    Plates izmērs (Form Factor) mATX
    Video interfeiss HDMI
    Video interfeiss DisplayPort
    Processor manufacturerAMD
    Processor socketSocket AM5
    Compatible processor seriesAMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
    Supported processor socketsSocket AM5
    Supported memory typesDDR5-SDRAM
    Number of memory slots2
    Maximum internal memory96 GB
    Memory slots typeDIMM
    Memory channelsDual-channel
    Non-ECCYes
    Supported memory clock speeds4400,4800,5200,5600,6000,6200,6400 MHz
    Supported memory clock speed (max)6400 MHz
    Unbuffered memoryYes
    Supported storage drive interfacesM.2, SATA III
    Supported storage drive typesHDD & SSD
    Number of storage drives supported5
    RAID supportYes
    RAID levels0, 1, 10
    Parallel processing technology supportNot supported
    Maximum resolution4096 x 2160 pixels
    HDCPYes
    USB 2.0 connectors1
    USB 3.2 Gen 1 (3.1 Gen 1) connectors2
    Number of SATA III connectors4
    Front panel audio connectorYes
    Front panel connectorYes
    ATX Power connector (24-pin)Yes
    CPU fan connectorYes
    EPS power connector (8-pin)Yes
    TPM connectorYes
    12V power connectorYes
    RGB LED pin headerYes
    USB 2.0 ports quantity2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
    Ethernet LAN (RJ-45) ports1
    HDMI ports quantity1
    PS/2 ports quantity1
    HDMI version2.1
    DisplayPorts quantity1
    DisplayPort version1.4
    Headphone outputs3
    Microphone inYes
    USB connector typeUSB Type-A, USB Type-C
    Wi-FiNo
    Ethernet LANYes
    Ethernet interface typeGigabit Ethernet
    Component forPC
    Motherboard form factormicro ATX
    Motherboard chipset familyAMD
    Motherboard chipsetAMD A620
    Audio output channels7.1 channels
    PC health monitoringFan, Temperature, Voltage, Water cooling
    Windows operating systems supportedWindows 10 x64, Windows 11 x64
    PCI Express x1 slots1
    PCI Express x16 slots1
    Number of M.2 (M) slots1
    BIOS typeUEFI AMI
    BIOS memory size256 Mbit
    ACPI version5.0
    Clear CMOS jumperYes
    Desktop Management Interface (DMI) version2.7
    System Management BIOS (SMBIOS) version2.7
    Width230 mm
    Depth225 mm
    Cables includedSATA
    Bundled softwareNorton Internet Security LAN bandwidth management software
    Description
    Gigabyte A620M H (rev. 1.0). Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
    DescriptionGIGABYTE A620M H AM5 DDR5 mATX MB
    VatTypeVAT
    Weight0.808000000
    Height56.000000000
    Width267.000000000
    Length266.000000000
    Description
    GIGABYTE A620M H AM5 2xDDR5 4xSATA 1xM.2 mATX MB
    Gross depth (mm)240.00
    Gross height (mm)95.00
    Gross weight1.40
    Gross width (mm)240.00
    Net weight1.20
    Packing quantity1.00
    Paper/Pasteboard150.00
    Plastic (No PET)50.00
    Tare weight (kg)0.20
    Volume (m3)0.01
    Embeeded batteryNo
    WEEE taxNo
    Palette Qty316
    TI weight (kg)0.05
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    WEE classificationCL109:5:2017-04-01
    Memory slots2
    ChipsetAMD A620
    Producer product nameA620M H 1.0 M/B
    Supported hard disk drive interfaces SATA, M.2
    Compatible processor seriesSupports AMD Ryzen 7000 Series Processors
    Processor familyAMD
    Motherboard form factorMicro ATX
    Supported memory typesDDR5 DIMM
    Processor socketAM5
    Number of SATA connectors4
    Gross depth master carton286
    Gross width master carton380
    Gross height master carton370
    Net weight master carton9.665
    Tare weight master carton0.684
    ProducerGigabyte
    Warranty36
    Description
    - AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors - Unparalleled Performance:5+2+2 Phases Digital VRM Solution - Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support - SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector - EZ-Latch:PCIe x16 Slot with Quick Release Design - Fast Networks:GbE LAN - Extended Connectivity:DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
