| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Product colour | Black, Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Number of displays supported | 3 |
| Maximum refresh rate | 60 Hz |
| Hub interfaces | DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA |
| Housing material | Aluminium |
| Country of origin | Taiwan |
| Input current | 5 A |
| Output voltage | 20 V |
| Output current | 0.9 A |
| Power consumption (typical) | 4.5 W |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Width | 82.5 mm |
| Depth | 350 mm |
| Height | 23.4 mm |
| Weight | 355 g |
| Quantity per pack | 1 pc(s) |
| Package width | 88 mm |
| Package depth | 358 mm |
| Package height | 28 mm |
| Package weight | 433 g |
| Cables included | USB Type-C |
| AC adapter included | No |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging content | 1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter |
| Warranty period | 2 year(s) |
| Cable length | 0.45 m |
| Maximum operating temperature | 48 °C |
| Description |

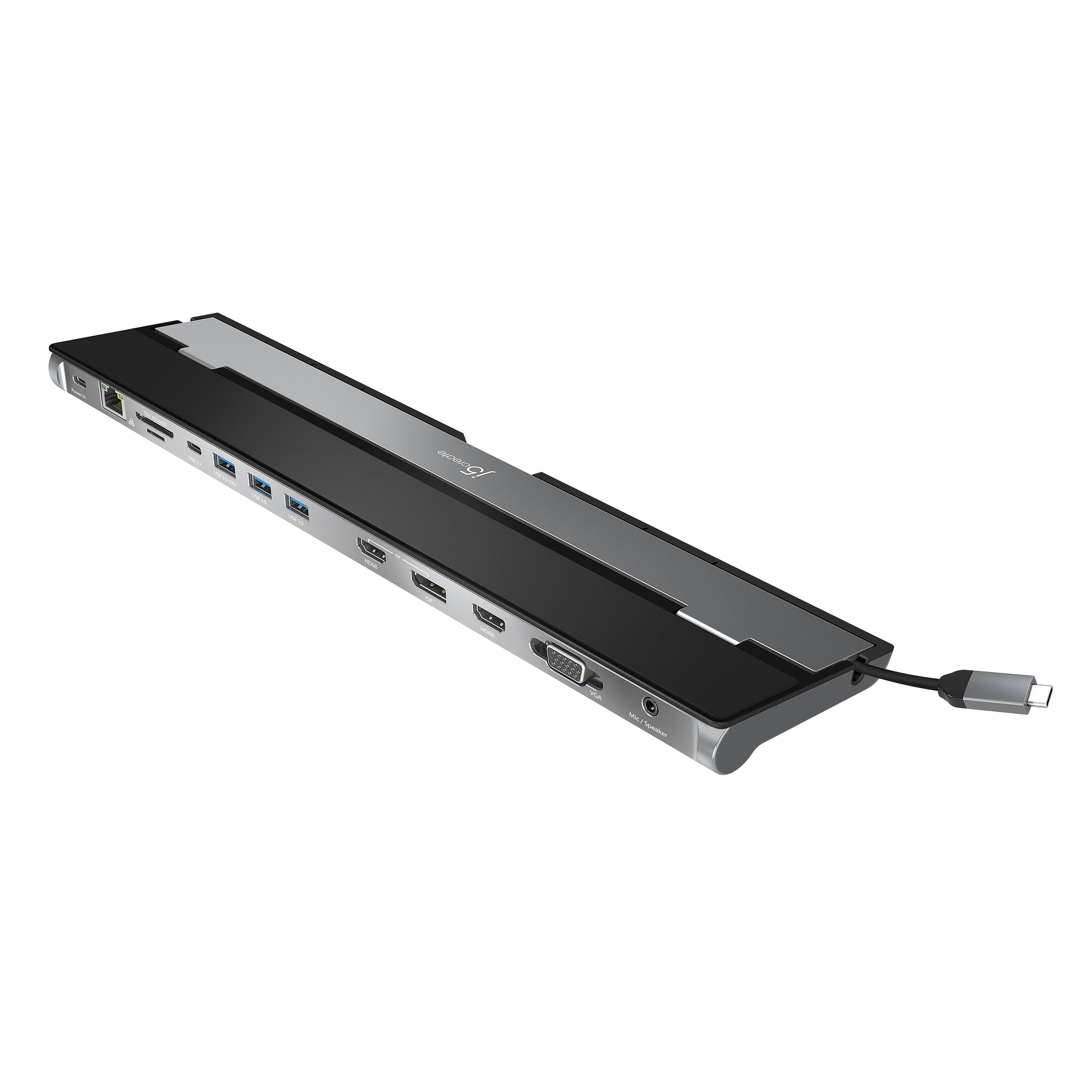

| j5create JCD543 USB-C™ Triple Display Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Silver, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Input current: 5 A, Output voltage: 20 V, Output current: 0.9 A. Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14... |
