    Ražotājs: LEVELONE

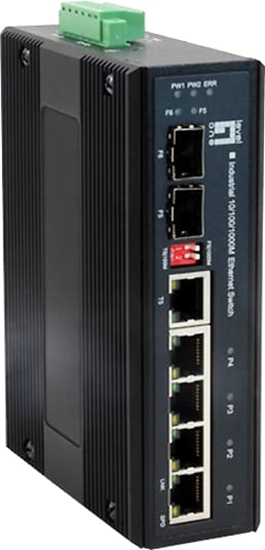

    LevelOne IES-0600 Industrial 6-Port Gigabit Switch


    €215,73 ar pvn

    Artikuls: ST04501625
    Preces kods: IES-0600
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Portu skaits RJ-45 6
    Portu skaits RJ-45 1
    Portu skaits RJ-45 10
    Īpašības RJ-45
    WRL stadarti 802.11b
    Portu skaits RJ-45 12
    Status7 dienas
    Description
    LevelOne IES-0600 Industry Ethernet Switch provides 4 ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. - 4 10/100/1000Base-T ports - 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot - 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, - Auto-Negotiation, Auto-MDI/MDIX - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail mount installation - Metal case design and compliant with IP30 standard

    Basic switching RJ-45 Ethernet ports quantity 4
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 1
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 1024 entries
    Switching capacity 12 Gbit/s
    Store-and-forward Y
    Jumbo frames 10000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Packet buffer memory 1 MB
    Product colour Black
    Housing material Metal
    LED indicators Activity, Link, Power
    International Protection (IP) code IP30
    Wall mountable Y
    DIN rail mounting Y
    Country of origin Taiwan
    Certification FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508
    Input voltage 5 - 56 V
    Power protection features Overload, Reverse polarity
    Power over Ethernet (PoE) N
    Operating temperature (T-T) -40 - 75 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Width 40 mm
    Depth 105 mm
    Height 38 mm
    Weight 720 g
    Quick start guide Y
    Package type Box
    Package width 215 mm
    Package depth 165 mm
    Package height 65 mm
    Package weight 120 g
    Harmonized System (HS) code 85176990
    Terminal block port Y

    Specifikācija
    Portu skaits RJ-45 6
    Portu skaits RJ-45 1
    Portu skaits RJ-45 10
    Īpašības RJ-45
    WRL stadarti 802.11b
    Portu skaits RJ-45 12
    Status7 dienas
    Description
    LevelOne IES-0600 Industry Ethernet Switch provides 4 ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. - 4 10/100/1000Base-T ports - 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot - 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, - Auto-Negotiation, Auto-MDI/MDIX - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail mount installation - Metal case design and compliant with IP30 standard

    Basic switching RJ-45 Ethernet ports quantity 4
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 1
    Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G support N
    Full duplex Y
    Flow control support Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address table 1024 entries
    Switching capacity 12 Gbit/s
    Store-and-forward Y
    Jumbo frames 10000
    Packet forwarding rate (1 Gbps) 1488000 pps
    Packet forwarding rate (100 Mbps) 148000 pps
    Packet forwarding rate (10 Mbps) 14880 pps
    Packet buffer memory 1 MB
    Product colour Black
    Housing material Metal
    LED indicators Activity, Link, Power
    International Protection (IP) code IP30
    Wall mountable Y
    DIN rail mounting Y
    Country of origin Taiwan
    Certification FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508
    Input voltage 5 - 56 V
    Power protection features Overload, Reverse polarity
    Power over Ethernet (PoE) N
    Operating temperature (T-T) -40 - 75 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Width 40 mm
    Depth 105 mm
    Height 38 mm
    Weight 720 g
    Quick start guide Y
    Package type Box
    Package width 215 mm
    Package depth 165 mm
    Package height 65 mm
    Package weight 120 g
    Harmonized System (HS) code 85176990
    Terminal block port Y
