    Ražotājs: LEVELONE

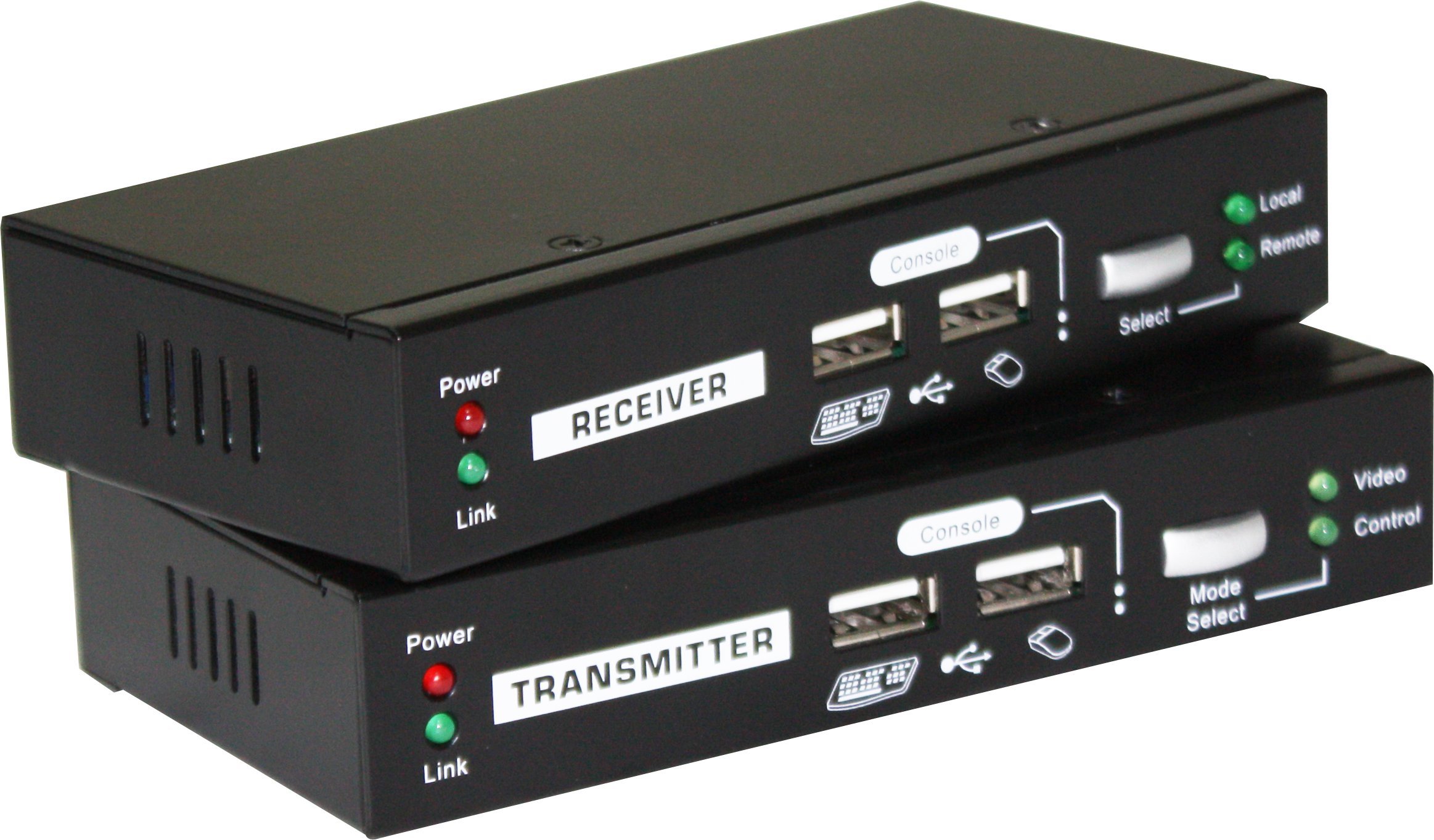

    LevelOne KVM-9036 KVM over Cat.5 Extender


    €272,24 ar pvn

    Artikuls: ST07486437
    Preces kods: KVM-9036
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Īpašības RJ-45
    Īpašības USB
    Status7 dienas
    Description
    The KVM-9036 Cat.5 USB Extender Kit is a pair of devices (Transmitter and Receiver) for highdensity applications where you want full use of the keyboard, mouse, and monitor, but there is no room for a server nearby.It allows users to access a computer, server or KVM switch up to 100m away. Or for applications where you want to put all computers in a safe place, all that is needed on the desktop is a single keyboard, monitor, and mouse.KVM-9036 has auto-adjustable RGB gain/delay control capability for superior video performance.

    Type Transmitter & receiver
    Connectivity technology Wired
    Maximum transfer distance 100 m
    Cable types supported Cat5, Cat5e
    Maximum analog resolution 1920 x 1200 pixels
    KVM port selection Hotkeys, Push-buttons
    On Screen Display (OSD) Y
    Firmware upgradeable Y
    Product colour Black
    Material Metal
    Country of origin Taiwan
    Plug and Play Y
    USB 2.0 ports quantity 2
    LED indicators Y
    Transmitter video port type VGA
    Transmitter local video port Y
    Transmitter local video port type VGA
    Transmitter local keyboard/mouse port type USB
    RJ-45 ports quantity (transmitter) 1
    Receiver local video port type VGA
    Receiver local keyboard/mouse port type USB
    RJ-45 ports quantity (receiver) 1
    Operating temperature (T-T) 0 - 40 °C
    Storage temperature (T-T) -5 - 65 °C
    Operating relative humidity (H-H) 5 - 95%
    Storage relative humidity (H-H) 5 - 95%
    Transmitter width 13.1 cm
    Transmitter depth 6.5 cm
    Transmitter height 2.6 cm
    Transmitter weight 586 g
    Receiver width 13.1 cm
    Receiver depth 6.5 cm
    Receiver height 2.6 cm
    Receiver weight 586 g
    Package width 204 mm
    Package depth 176 mm
    Package height 139 mm
    Package weight 1.69 kg
    Sustainability compliance Y
    Sustainability certificates CE, Federal Communications Commission (FCC), UKCA, WEEE
    AC adapter included Y
    Cables included KVM
    Quick installation guide Y
    USB port type USB Type-B
    Pallet gross length 94 cm
    Pallet gross width 135 cm
    Pallet gross height 11.5 cm
    Master (outer) case width 440 mm
    Master (outer) case length 370 mm
    Master (outer) case height 430 mm
    Master (outer) case gross weight 21.3 kg
    Products per master (outer) case 12 pc(s)
