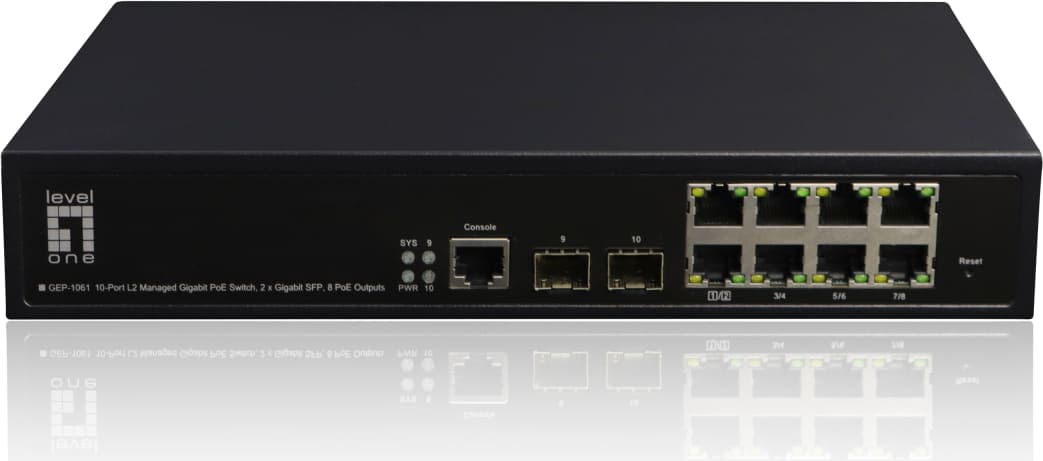

The GEP-1061 is LevelOne latest generation of 10-Port L2 Managed Gigabit PoE Switch, with 2 Gigabit SFP Uplink ports. also offers powerful Web Smart configuration for PoE management, and QoS / VLAN / MSTP / Multi-broadcast / ports management features. Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 20Gbps and bring Gigabit speeds all the way to your computers.
The GEP-1061 PoE-enabled switches features an IEEE 802.3af/at/bt standard, better PoE functionality with 180W PoE power budget and usability. supports up to 2 ports at 90W, or 6 ports at 30W or 8 ports at 15.4W to meet the increasing power demands of users. giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
| | Switch type | Managed | | Switch layer | L2 | | Quality of Service (QoS) support | Y | | Traffic classification | Y | | System event log | Y | | Basic switching RJ-45 Ethernet ports quantity | 8 | | Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | | Combo SFP ports quantity | 2 | | Fiber ports quantity | 2 | | Fiber optic connector | SFP | | Console port | RJ-45 | | Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | | 10G support | N | | Port mirroring | Y | | Flow control support | Y | | Link aggregation | Y | | Broadcast storm control | Y | | Rate limiting | Y | | Spanning tree protocol | Y | | Cable length detection | Y | | VLAN support | Y | | Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN | | Number of VLANs | 4000 | | Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X | | MAC address table | 8000 entries | | Switching capacity | 20 Gbit/s | | Forwarding rate | 14.9 Mpps | | Store-and-forward | Y | | Number of trunks | 8 | | Number of queues | 8 | | Static route | Y | | Jumbo frames support | Y | | Jumbo frames | 10000 | | Packet buffer memory | 4.1 MB | | DHCP features | DHCP client, DHCP snooping | | Access Control List (ACL) | Y | | Access Control List (ACL) rules | 512 | | IGMP snooping | Y | | MAC address filtering | Y | | SSH/SSL support | Y | | BPDU filtering/protection | Y | | Password protection | Y | | DoS attack prevention | Y | | Multicast support | Y | | IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert | | Rack mounting | Y | | Stackable | N | | Product colour | Black | | Reset button | Y | | LED indicators | Activity, Link, Power | | Country of origin | China | | Certification | CE class A, FCC, UL, VCCI, BSMI | | Internal memory | 32 MB | | Telnet | Y | | Power source | AC | | Power supply included | Y | | AC input voltage | 100 - 240 V | | AC input frequency | 50 - 60 Hz | | Power consumption (typical) | 80 W | | Power over Ethernet (PoE) | Y | | Power over Ethernet (PoE) ports quantity | 8 | | Power over Ethernet (PoE) power per port | 30 W | | Total Power over Ethernet (PoE) budget | 125 W | | Operating temperature (T-T) | -10 - 50 °C | | Storage temperature (T-T) | -40 - 85 °C | | Operating relative humidity (H-H) | 10 - 95% | | Width | 181 mm | | Depth | 270 mm | | Height | 44 mm | | Weight | 800 g | | Cables included | AC, LAN (RJ-45) | | Quick start guide | Y | | Package type | Blister | | Rack mount kit | Y | | Resource CD | Y | | Package width | 255 mm | | Package depth | 82 mm | | Package height | 345 mm | | Package weight | 2 kg | | Harmonized System (HS) code | 85176990 |
|
|
