    Ražotājs: LEVELONE

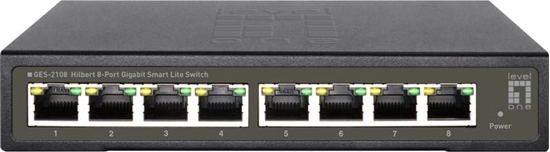

    Level One LevelOne Switch 8x GE GES-2108 Hilbert


    €66,60 ar pvn

    Artikuls: ST07363995
    Preces kods: GES-2108
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Īpašības RJ-45
    WRL stadarti 802.11b
    Status7 dienas
    Description
    The LevelOne GES-2108 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. GES-2108 delivers 8 (10M/100M/1G) RJ45 ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems. The LevelOne GES-2108 provides high HW performance and environment flexibility for Enterprises. GES-2108 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

    Switch type Managed
    Switch layer L2
    Quality of Service (QoS) support Y
    Web-based management Y
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    Gigabit Ethernet (copper) ports quantity 8
    Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    10G support N
    Port mirroring Y
    Full duplex Y
    Half duplex Y
    Flow control support Y
    Link aggregation Y
    Broadcast storm control Y
    Rate limiting Y
    Auto MDI/MDI-X Y
    Auto-negotiation Y
    MAC address auto-learning supported Y
    MAC address auto-aging supported Y
    VLAN support Y
    Virtual LAN features Tagged VLAN
    Number of VLANs 32
    MAC address table 4000 entries
    Switching capacity 16 Gbit/s
    Number of queues 4
    Jumbo frames support Y
    Jumbo frames 9000
    Packet buffer memory 1.5 MB
    IGMP snooping Y
    Multicast support Y
    Rack mounting N
    Product colour Black
    LED indicators Link, Power
    Country of origin China
    Flash memory 2 MB
    Fanless Y
    Mean time between failures (MTBF) 43800 h
    Master (outer) cases per pallet (air) 16 pc(s)
    Pallet gross length 80 cm
    Pallet gross width 120 cm
    Pallet height (air) 170.4 cm
    Power source DC
    Power supply included Y
    DC input voltage 12 V
    Input current 1 A
    Power consumption (max) 6 W
    Surge protection Y
    Surge protection voltage 8 kV
    Power over Ethernet (PoE) N
    Operating temperature (T-T) 0 - 45 °C
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 5 - 95%
    Heat dissipation 20.4 BTU/h
    Width 160 mm
    Depth 95 mm
    Height 29 mm
    Weight 350 g
    Quick start guide Y
    AC adapter included Y
    Package type Box
    Package width 264 mm
    Package depth 122 mm
    Package height 52 mm
    Package weight 500 g
    Sustainability compliance Y
    Sustainability certificates CE, RoHS
    Master (outer) case net weight 700 g
    Master (outer) case width 550 mm
    Master (outer) case length 330 mm
    Master (outer) case height 390 mm
    Master (outer) case gross weight 18.7 kg
    Products per master (outer) case 36 pc(s)
