    Ražotājs: LEVELONE

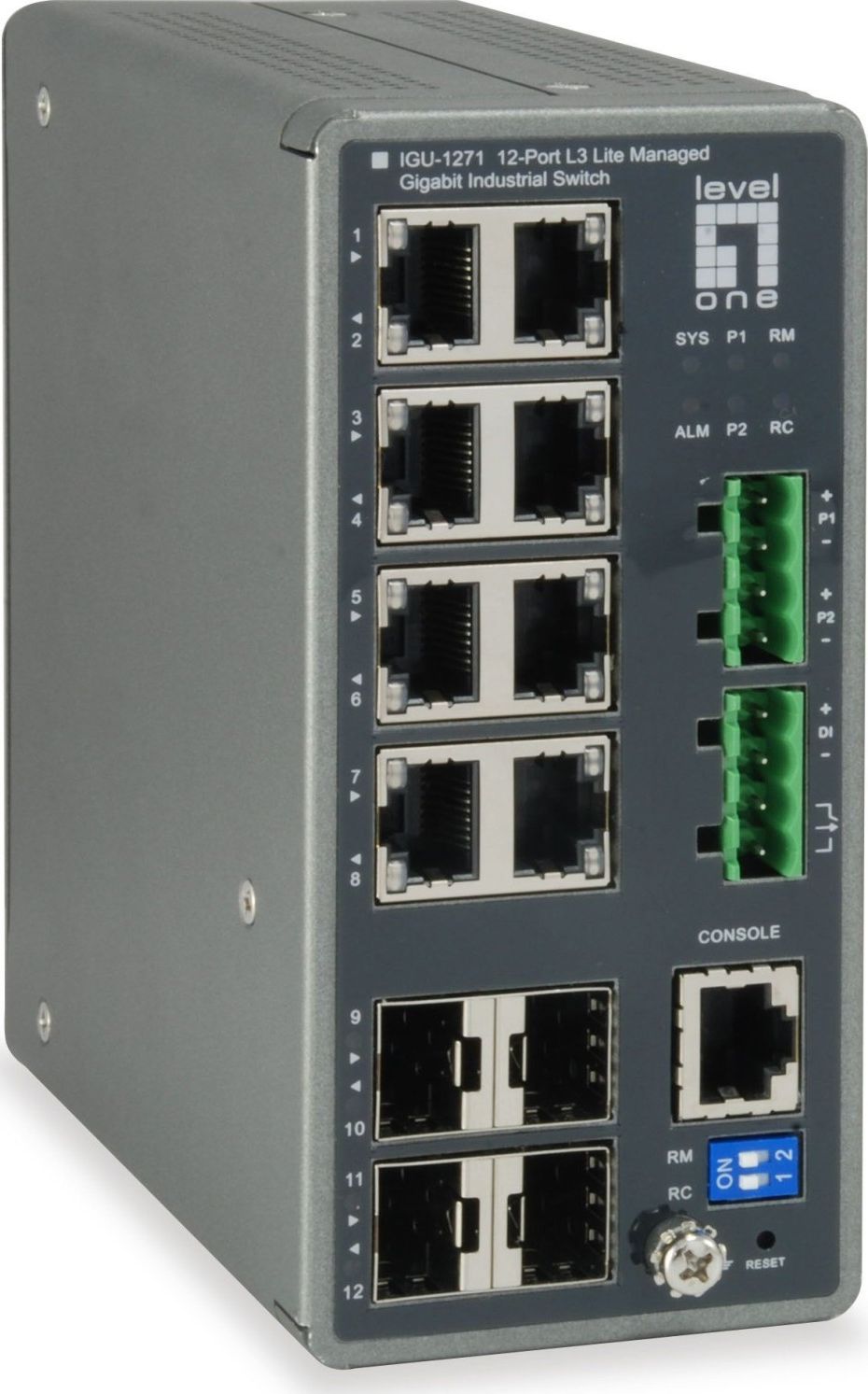

    LevelOne IGU-1271 TURING 12-Port L3 Lite Gigabit Switch


    €709,82 ar pvn

    Artikuls: ST07371093
    Preces kods: IGU-1271
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Īpašības RJ-45
    WRL stadarti 802.11ac
    WRL stadarti 802.11b
    Status7 dienas
    Description
    The LevelOne IGU-1271, a L3 Lite Managed Industrial Switch with 8 ports of Gigaibit RJ45 and 4 ports of Gigabit SFP. This switch is offering full suite of L2 management features, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in enterprise networks via fiber or copper connections.

    Switch type Managed
    Switch layer L3
    Web-based management Y
    System event log Y
    Basic switching RJ-45 Ethernet ports quantity 8
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    SFP module slots quantity 4
    Console port RJ-45
    Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u
    10G support N
    Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Port mirroring Y
    Link aggregation Y
    Broadcast storm control Y
    Spanning tree protocol Y
    Ethernet Ring Protection Switching (ERPS) Y
    VLAN support Y
    MAC address table 8000 entries
    Switching capacity 24 Gbit/s
    Forwarding rate 17.856 Mpps
    Store-and-forward Y
    Static route Y
    Jumbo frames support Y
    Jumbo frames 9216
    Packet buffer memory 0.5 MB
    DHCP features DHCP server, DHCP snooping, DHCP relay, DHCP client
    Access Control List (ACL) Y
    Loop protection Y
    BPDU filtering/protection Y
    Root protection Y
    Management protocols SNMP, Web, Telnet, SSH
    Supported network protocols IPv4/IPv6
    Product colour Grey
    Reset button Y
    LED indicators Alarm, Power, Status, System
    DIN rail mounting Y
    Country of origin Taiwan
    Safety UL,CB
    Certification FCC, CE, DMS
    Internal memory 128 MB
    Flash memory 32 MB
    Firmware upgradeable Y
    Remarking priority Y
    sFlow Y
    Mean time between failures (MTBF) 476206 h
    DC input voltage 48 - 57 V
    Power consumption (max) 239.2 W
    Power over Ethernet (PoE) N
    Operating temperature (T-T) -40 - 75 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 10 - 90%
    Heat dissipation 36.03 BTU/h
    Width 62 mm
    Depth 130 mm
    Height 135 mm
    Weight 700 g
    Cables included LAN (RJ-45)
    Quick start guide Y
    Package type Box
    Resource CD Y
    Package width 255 mm
    Package depth 207 mm
    Package height 85 mm
    Package weight 900 g
    Master (outer) case width 520 mm
    Master (outer) case length 445 mm
    Master (outer) case height 220 mm
    Harmonized System (HS) code 85176990
    Master (outer) case gross weight 2.4 kg
    Products per master (outer) case 10 pc(s)
