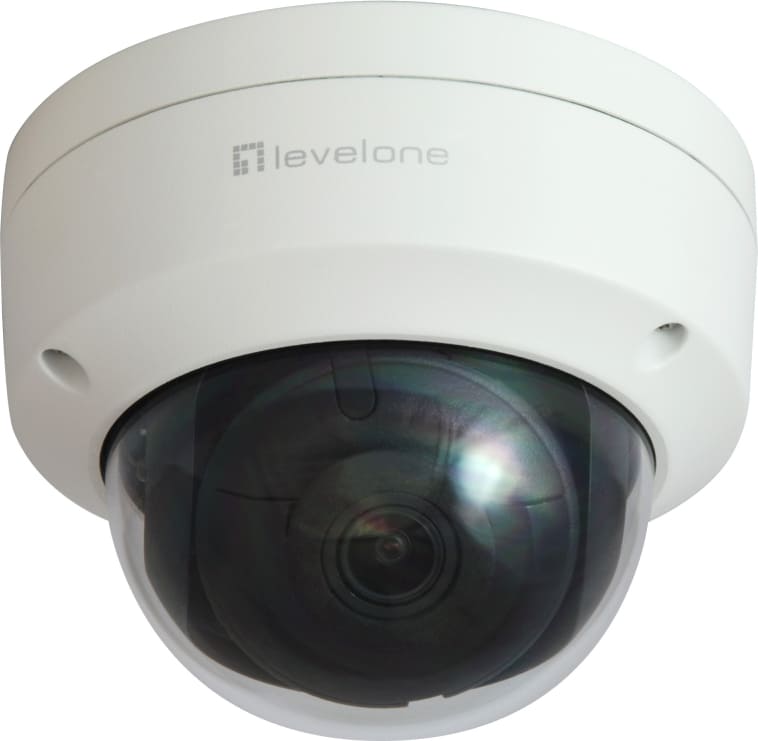

The LevelOne FCS-3402 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
| | Type | IP security camera | | Placement supported | Indoor & outdoor | | Connectivity technology | Wired | | Day/night mode | Y | | Infrared (IR) cut-off filter | Y | | Certification | CE, FCC | | Mounting type | Ceiling/wall | | Product colour | White | | Form factor | Dome | | LED indicators | Power | | Protection features | Dust resistant, Heat resistant, Rain proof, Snow resistant, Vandal proof | | International Protection (IP) code | IP67 | | IK code | IK10 | | Weatherproof | Y | | Country of origin | China | | Field of view (FOV) angle | 86° | | Lens viewing angle, vertical | 46° | | Lens viewing angle, diagonal | 102° | | Camera shutter speed | 1/3 - 1/100000 s | | Sensor type | CMOS | | Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") | | Progressive scan | Y | | Number of lenses | 1 | | Zoom capability | Y | | Digital zoom | 8x | | Focus adjustment | 2.0 | | Fixed focal length | 4 mm | | Night vision | Y | | Night vision distance | 30 m | | LED type | IR | | Infra-red wavelength | 850 nm | | Maximum resolution | 1920 x 1080 pixels | | Total megapixels | 2 MP | | Video formats supported | H.264, H.265, M-JPEG | | Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) | | Frame rate | 30 fps | | Noise reduction | Y | | Noise reduction technology | 3D noise reduction | | Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Privacy masking | Y | | Back Light Compensation (BLC) | Y | | Region of Interest (ROI) encoding | Y | | Ethernet LAN | Y | | Wi-Fi | N | | Bluetooth | N | | Ethernet interface type | Fast Ethernet | | Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u | | Supported network protocols | TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour | | Number of users | 32 user(s) | | Built-in HDD | N | | Card reader integrated | Y | | Compatible memory cards | MicroSDHC, MicroSDXC | | Ethernet LAN (RJ-45) ports | 1 | | Microphone in | Y | | Headphone outputs | 1 | | Terminal block port | Y | | DC-in jack | Y | | Password protection | Y | | Video motion detection | Y | | Active tampering alarm | Y | | Anti-flicker | Y | | Heartbeat | Y | | Mirror | Y | | Digital watermark | Y | | Reset button | Y | | Power source type | DC, PoE | | Power consumption | 400 mA | | Power consumption (max) | 5 W | | Power consumption (Power over Ethernet (PoE)) | 7 W | | Operating temperature (T-T) | -30 - 60 °C | | Operating relative humidity (H-H) | 0 - 95% | | Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 | | Mobile operating systems supported | Android, iOS | | Depth | 82 mm | | Diameter | 11.1 cm | | Weight | 500 g | | Package width | 134 mm | | Package depth | 111 mm | | Package height | 108 mm | | Package weight | 502 g | | Package type | Box | | Number of cameras | 1 | | Screws included | Y | | Resource CD | Y | | Browser supported | IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+ | | Sustainability certificates | RoHS | | Harmonized System (HS) code | 85258900 | | Master (outer) case width | 111 mm | | Master (outer) case length | 111 mm | | Master (outer) case height | 111 mm | | Master (outer) case gross weight | 608 g | | Products per master (outer) case | 24 pc(s) |
|
|
