    Ražotājs: NONAME

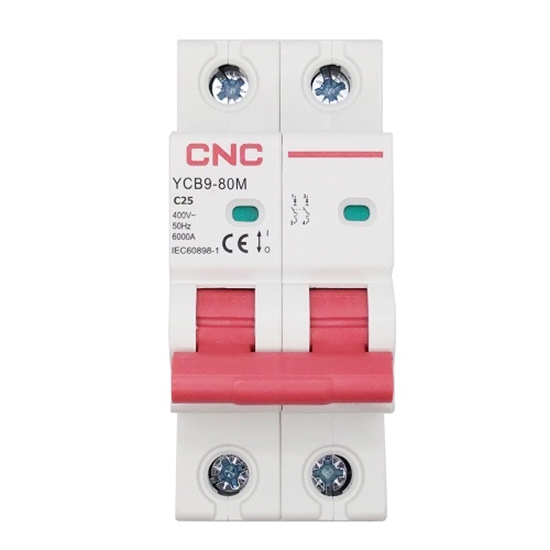

    Miniature Circuit Breaker, 2P, 25A, Class C, 6kA


    €8,18 ar pvn

    Artikuls: ST08132713
    Preces kods: NV821518
    Ražotāja mājaslapa
    *
    Noliktava Piegāde Daudzums Cena
    LT

    Specifikācija
    Description
    Miniature Circuit Breaker, 2P, 25A, Class C, 6kA Features: Protection against overload. Short circuit protection.Anti-mistake contact terminal lock.Flame retardant, high temperature resistance and impact resistance.Contact position indication (red indicated closed, green indicates opened).rSpecifications:Numer of contacts: 2.Rated current (In): 25 A.Class: C.Rated voltage (Ue): AC 00 V.Insulation voltage (Ui): 500 V.Rated frequency: 5060 Hz.Rated reaking capacity (Icu): 6000 A.Rated impulse withstand voltage (Uimp): 6000 V.Mechanical life: 20000 times.Electrical life: 8000 times.Safety class: IP20.Terminal connection type: cale pin-type usar.Wireusar cross-sectional area: up to 25mm² 18-3 AWG.Connection: from top and ottom.Installation: on DIN rail EN 60715 (35mm) y means of fast clip device.Operating temperature: -5°C~+0°C (with daily average 35°C).Storage temperature: -25°C~+70°C.Dimensions: 85.5 78.8 36 mm.Standards: IEC 60898-1 EN 60898-1.rWarranty: 2 months.
