| Product type | CCTV monitor |
| Mounting type | Wall-mounted |
| Product colour | Black |
| Display diagonal | 138.7 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Display type | LED |
| Panel type | IPS |
| Display brightness | 350 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 86 Hz |
| Contrast ratio (typical) | 1200:1 |
| Response time | 5 ms |
| Haze rate | 1% |
| RGB colour space | NTSC |
| NTSC coverage (typical) | 68% |
| Anti-glare screen | Yes |
| Surface hardness | 3H |
| Digital horizontal frequency | 15 - 135 kHz |
| Digital vertical frequency | 24 - 86 Hz |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 5 W |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Composite video out | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| RS-232 ports | 1 |
| SDI inputs | 1 |
| SDI outputs | 1 |
| Digital audio optical out | 1 |
| Power source type | AC |
| Power supply type | Internal |
| Power consumption (typical) | 99 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 100 - 240 V |
| Energy efficiency class (SDR) | G |
| Energy efficiency scale | A to G |
| Energy consumption (SDR) per 1000 hours | 99 kWh |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
| Weight | 15 kg |
| Height | 714 mm |
| Depth | 69.6 mm |
| Width | 1243.2 mm |
| Package type | Box |
| Package width | 1364 mm |
| Package depth | 154 mm |
| Package height | 824 mm |
| Package weight | 18.8 kg |
| AC adapter included | Yes |
| Cables included | AC, HDMI |
| Remote control included | Yes |
| Quick start guide | Yes |
| Quantity | 1 |
| Description |

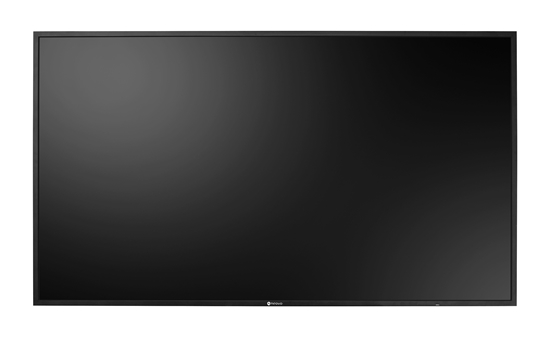

| AG Neovo HMQ-5501. Product type: CCTV monitor, Mounting type: Wall-mounted, Product colour: Black. Display diagonal: 138.7 cm (54.6"), Display resolution: 3840 x 2160 pixels, Display type: LED. Speaker power: 5 W, Panel mounting interface: 400 x 400 mm. Power source type: AC, Power supply type: Internal, Power consumption (typical): 99 W. Weight: 15 kg, Height: 714 mm, Depth: 69.6 mm |
