    Ražotājs: NETGEAR

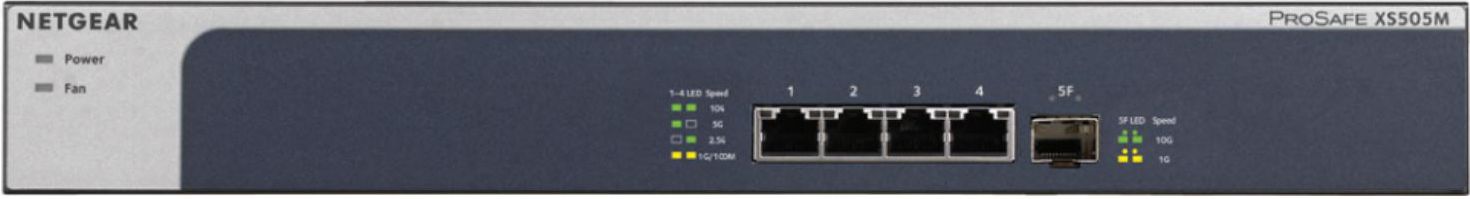

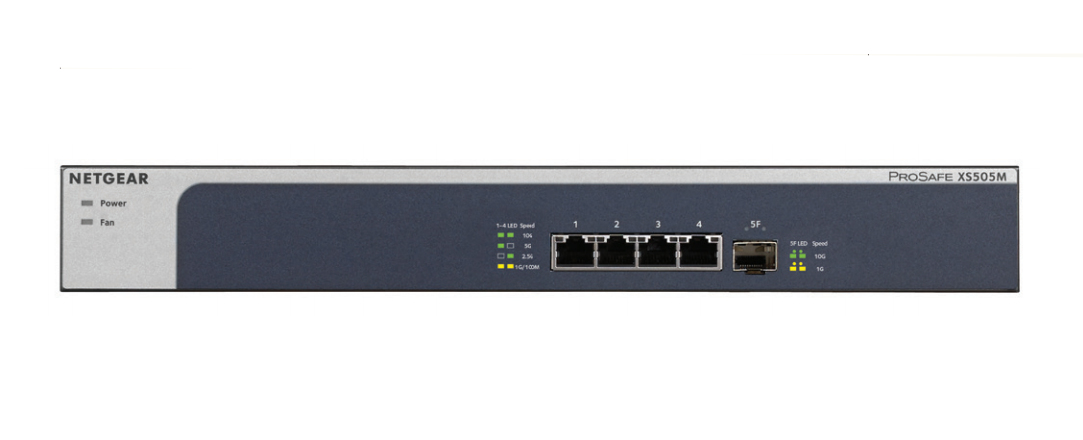

    Netgear XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver


    €396,92 ar pvn

    Artikuls: ST02612580
    Preces kods: XS505M-100EUS
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    DE
    PL
    DE

    Specifikācija
    Portu skaits RJ-45 4
    WRL stadarti 802.11b
    Īpašības RJ-45
    Switch typeUnmanaged
    Quality of Service (QoS) supportYes
    Basic switching RJ-45 Ethernet ports quantity4
    Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
    SFP+ module slots quantity1
    Power connectorDC-in jack
    Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportYes
    Full duplexYes
    Flow control supportYes
    MAC address table2000 entries
    Switching capacity100 Gbit/s
    Jumbo frames supportYes
    Jumbo frames9000
    Packet buffer memory128 MB
    Rack mountingYes
    Product colourGrey, Silver
    LED indicatorsYes
    SafetyCE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
    Certification47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
    Mean time between failures (MTBF)1093237 h
    Power sourceAC
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Input current1.5 A
    Power consumption (typical)12.25 W
    Power consumption (max)22.5 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 3000 m
    Heat dissipation85.3 BTU/h
    Width328 mm
    Depth169 mm
    Height43.2 mm
    Weight1.38 kg
    Harmonized System (HS) code85176990
    Description
    NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mounting
    Description
    Netgear Switch XS505M-100EUS XS505M100EUS (XS505M-100EUS)
    Description
    4+1P Netgear XS505M Desktop 10G

    Specifikācija
    Portu skaits RJ-45 4
    WRL stadarti 802.11b
    Īpašības RJ-45
    Switch typeUnmanaged
    Quality of Service (QoS) supportYes
    Basic switching RJ-45 Ethernet ports quantity4
    Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
    SFP+ module slots quantity1
    Power connectorDC-in jack
    Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G supportYes
    Full duplexYes
    Flow control supportYes
    MAC address table2000 entries
    Switching capacity100 Gbit/s
    Jumbo frames supportYes
    Jumbo frames9000
    Packet buffer memory128 MB
    Rack mountingYes
    Product colourGrey, Silver
    LED indicatorsYes
    SafetyCE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
    Certification47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
    Mean time between failures (MTBF)1093237 h
    Power sourceAC
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Input current1.5 A
    Power consumption (typical)12.25 W
    Power consumption (max)22.5 W
    Power over Ethernet (PoE)No
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 70 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 3000 m
    Heat dissipation85.3 BTU/h
    Width328 mm
    Depth169 mm
    Height43.2 mm
    Weight1.38 kg
    Harmonized System (HS) code85176990
    Description
    NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mounting
    Description
    Netgear Switch XS505M-100EUS XS505M100EUS (XS505M-100EUS)
    Description
    4+1P Netgear XS505M Desktop 10G
