| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 64 |
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Blue, Grey |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Certification | 47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1 |
| Mean time between failures (MTBF) | 1113477 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 261.38 BTU/h |
| Width | 328 mm |
| Depth | 204 mm |
| Height | 43 mm |
| Weight | 2.51 kg |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85176990 |
| Description |

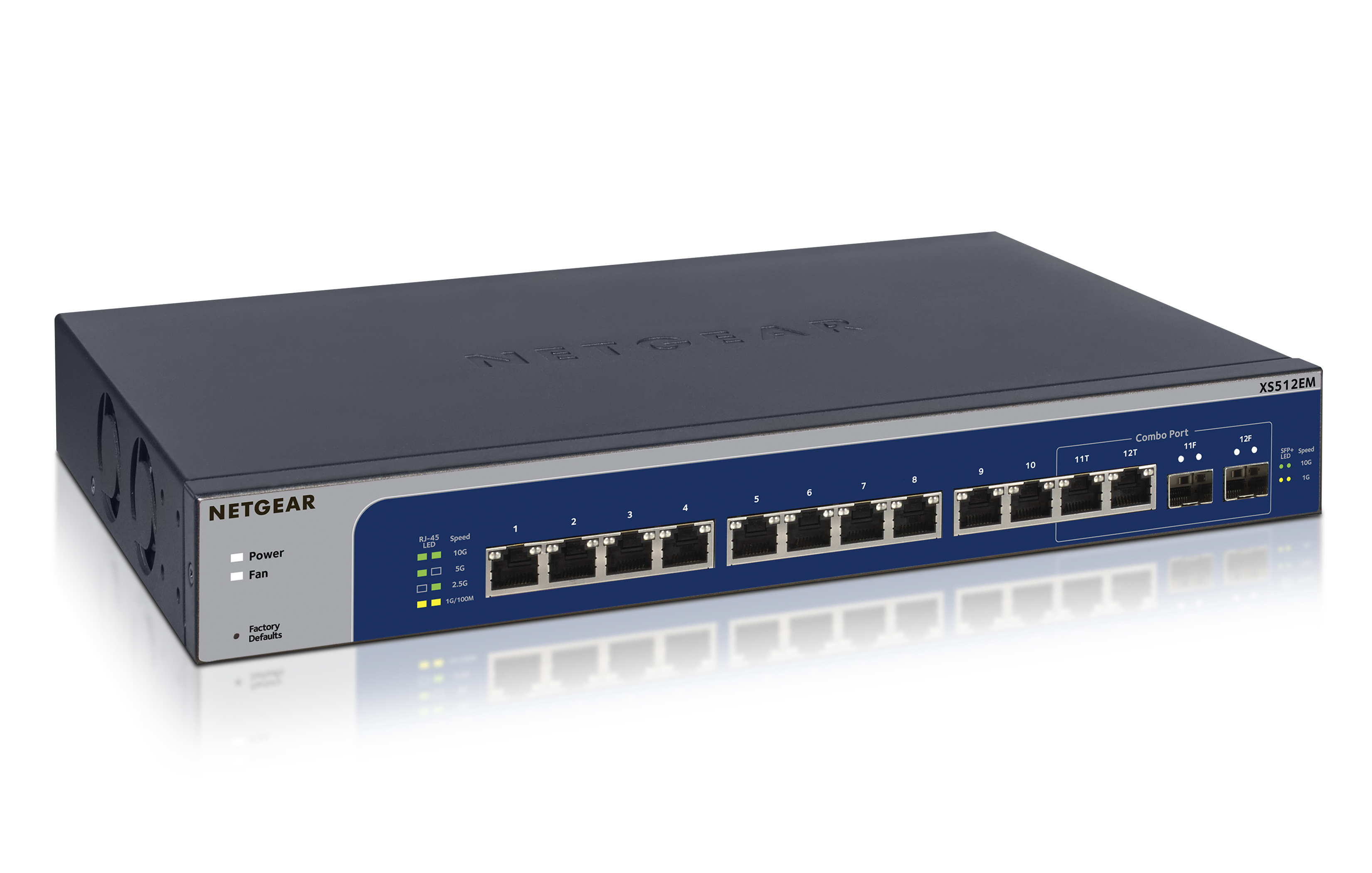

| NETGEAR XS512EM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12. MAC address table: 32000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U |
