Processor manufacturer | AMD |
Processor socket | Socket AM5 |
Supported processor sockets | Socket AM5 |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Maximum internal memory | 128 GB |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
Unbuffered memory | Yes |
Supported storage drive interfaces | M.2, PCI Express |
Supported storage drive types | HDD & SSD |
RAID levels | 0, 5, 10 |
Parallel processing technology support | Not supported |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA II connectors | 4 |
Front panel audio connector | Yes |
Front panel connector | Yes |
CPU fan connector | Yes |
Chassis intrusion connector | Yes |
TPM connector | Yes |
RGB LED pin header | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
S/PDIF out port | Yes |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Bluetooth | Yes |
Bluetooth version | 5.2 |
Component for | PC |
Motherboard form factor | micro ATX |
Motherboard chipset family | AMD |
Motherboard chipset | AMD B650 |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Number of M.2 (M) slots | 4 |
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
Width | 243.8 mm |
Depth | 243.8 mm |
Cables included | SATA |
Description |

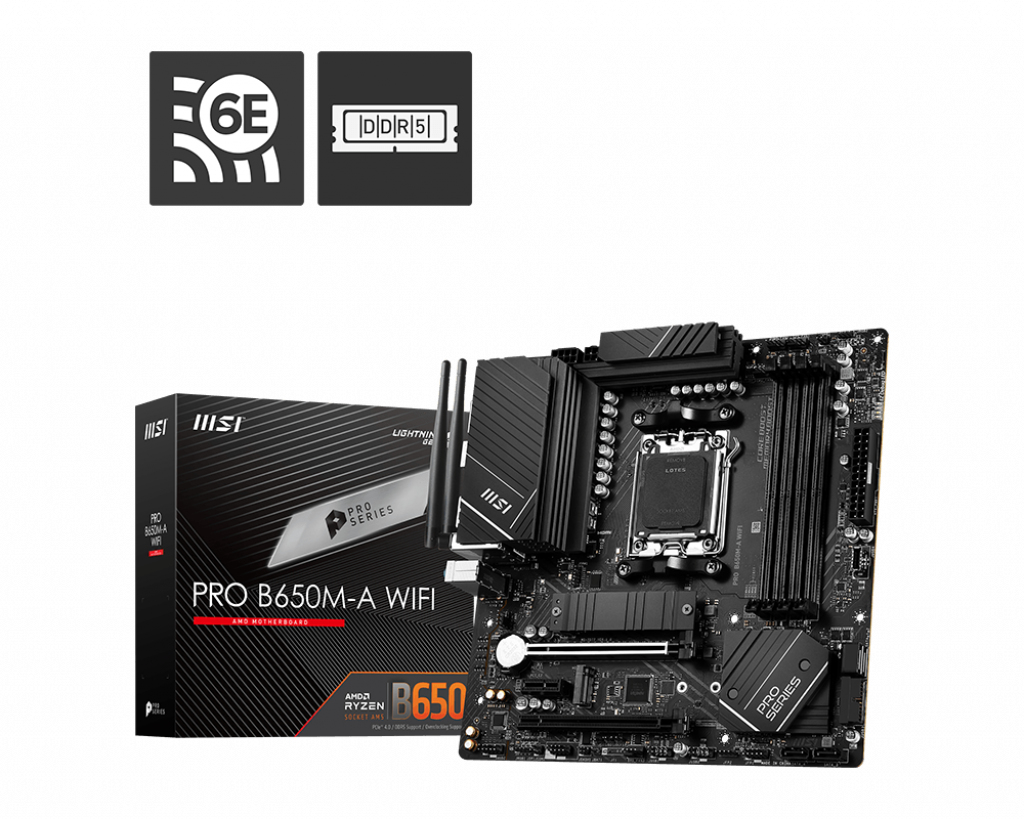

MSI PRO B650M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
