Ražotājs: ROLINE

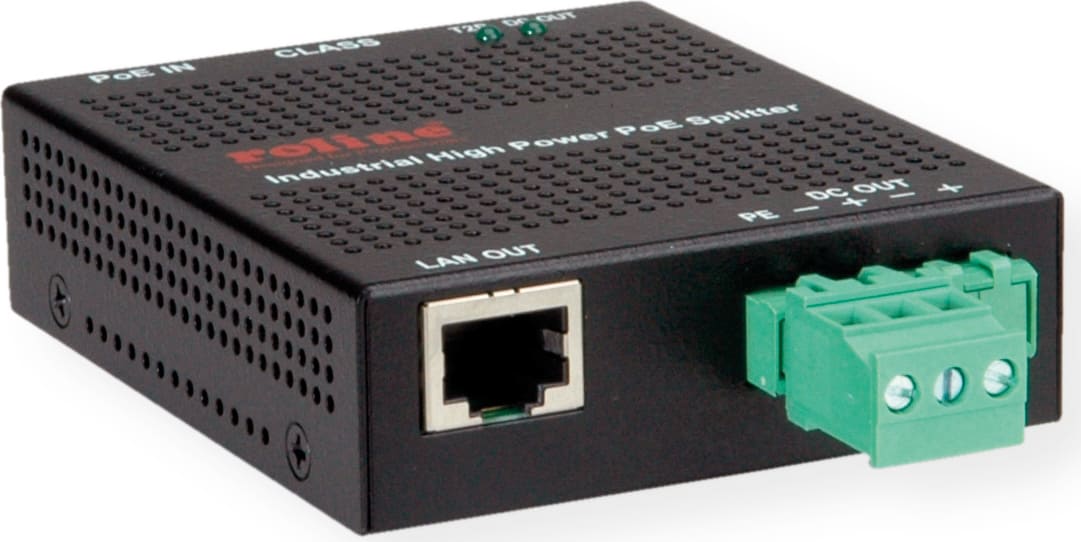

ROLINE High Power PoE Splitter, 30W

€184,02 ar pvn

Artikuls: ST06833724

Preces kods: 21.13.1175

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

Daudzums:

Specifikācija

Status

7 dienas

Description

High power PoE splitter which integrates Power over Ethernet (PoE) technology to PoE incapable network device by just using a single Cat.5 cable for both power and data transaction
For easier, cost-effective PoE network installation, the PoE splitter is the best solution to protect original investment.
IEEE 802.3at and 802.3af compliance
Support 10BASE-T, 100BASE-TX, and 1000BASE-T
Support Alternative A or Alternative B PoE input over Cat.5
Provide a power class selection DIP for demanding power from PSE
Support Type 1 PSE classification (for power up to 13 Watts min.) and Type 2 PSE 2-event classification (for power up to 30 Watts)
Regulated DC power output
Flexible mounting support, light weight and compact
Metal housing
Dimension: 73 x 85 x 24 mm

Manufacturer	ROLINE
Product group	PoE adapter
Product type	PoE-Splitter
Colour	black
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	1
Power over Ethernet (PoE)	PoE
Quantity of PoE ports	1
Max. PoE output power per port	30 W
Max. PoE output power (total)	30 W
Technical particularity	12 VDC (output voltage)
Mains connection	Loose cable / screw terminals
Height	24 mm
Width	85 mm
Depth	73 mm
Weight	193.4 g
Height of packaging (single piece)	160 mm
Width of packaging (single piece)	60 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.34 kg
Current catalog edition	C23-New
