| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 11 Mbit/s |
| WLAN data transfer rate (second band) | 54 Mbit/s |
| WLAN data transfer rate (third band) | 300 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Policy-based routing | Yes |
| Static route | Yes |
| 3G | No |
| 4G | No |
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security algorithms | WEP, WPA, WPA2, WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DMZ support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Media access protocol | Access Control, Local Management, Remote Management |
| Product type | Tabletop router |
| Product colour | White |
| LED indicators | Activity, LAN, WLAN |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna design | External |
| Antenna gain level (max) | 5 dBi |
| Plug and Play | Yes |
| Firmware upgradeable | Yes |
| Certification | CE, RoHS |
| Power source type | DC |
| Output voltage | 5 V |
| Output current | 0.6 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Width | 154 mm |
| Depth | 114 mm |
| Height | 36 mm |
| Number of products included | 1 pc(s) |
| Description |

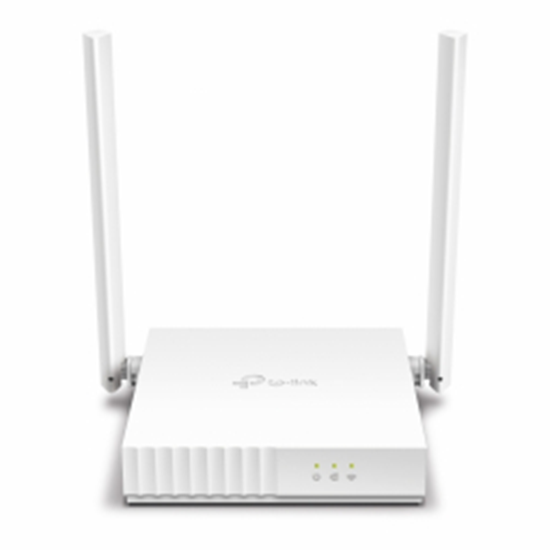

| TP-Link TL-WR820N. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: WEP, WPA, WPA2, WPA2-PSK. Media access protocol: Access Control, Local Management, Remote Management. Product type: Tabletop router, Product colour: White, LED indicators: Activity, LAN, WLAN |
