| Storage drives installed | No |
| Number of storage drives supported | 8 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | Serial ATA III |
| RAID support | Yes |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Number of processors supported | 1 |
| On-board graphics card model | Intel® UHD Graphics |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 4000 MB |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Concurrent connections | 1500 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm |
| LED indicators | Yes |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Snapshot | Yes |
| Web-based management | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3 |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| System log | Yes |
| Hot spare | Yes |
| S.M.A.R.T. support | Yes |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5.0.0 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 300 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 51.022 W |
| Power consumption (sleep) | 24.776 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Width | 482.1 mm |
| Depth | 318.1 mm |
| Height | 88.6 mm |
| Weight | 6.68 kg |
| Package weight | 9.25 kg |
| Cables included | AC, LAN (RJ-45) |
| Number of screws | 56 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Description |

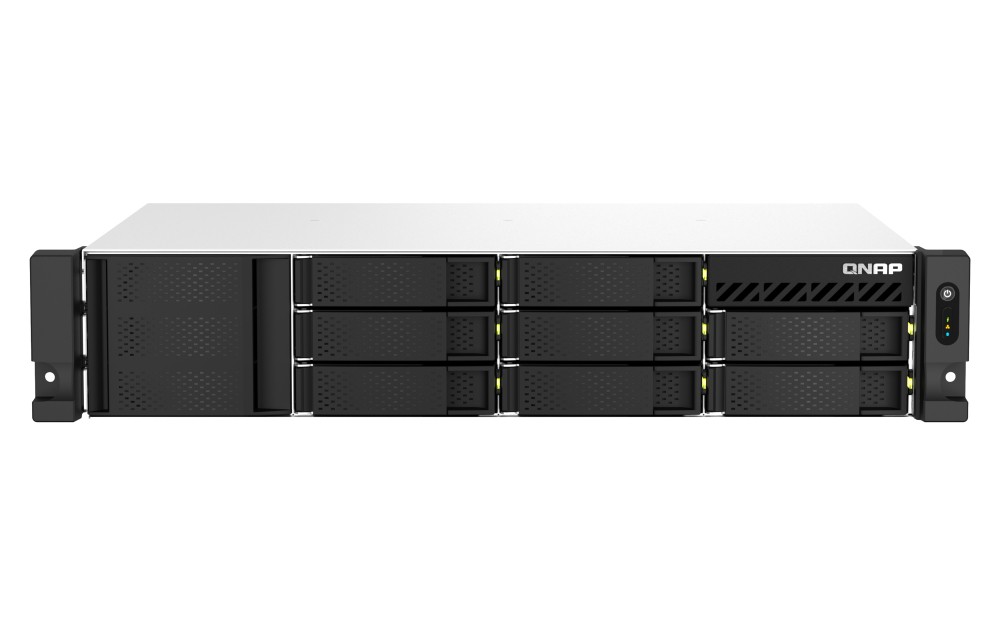

| QNAP TS-864EU-8G. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III, Supported storage drive interfaces: Serial ATA II, Serial ATA III. Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor boost frequency: 2.9 GHz. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 16 GB. Ethernet LAN data rates: 100,1000,2500 Mbit/s. HDMI version: 1.4b |
