| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor model | i7-8565U |
| Processor frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor lithography | 14 nm |
| Processor boost frequency | 4.6 GHz |
| L3 cache | 8 MB |
| Thermal Design Power (TDP) | 15 W |
| Processor codename | Whiskey Lake |
| CPU configuration (max) | 1 |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| LAN controller | Intel® I211 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.0a |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| PCI Express slots version | 3.0 |
| Number of M.2 (M) slots | 1 |
| PCI Express configurations | 1x4, 2x2 |
| Product colour | Black |
| Cooling type | Active |
| Product type | Mini PC barebone |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Plastic |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Safety | CB, BSMI, ETL |
| Certification | CE, FCC, BSMI, RCM, RED, VCCI
RoHS, ErP |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1528 |
| BIOS type | AMI |
| BIOS memory size | 8 Mbit |
| Audio chip | Realtek ALC662 |
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Embedded options available | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® OS Guard | Yes |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Sustainability certificates | ENERGY STAR |
| Country of origin | China |
| Harmonized System (HS) code | 84713000 |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 142 mm |
| Depth | 142 mm |
| Height | 42 mm |
| Weight | 400 g |
| Package weight | 1.2 kg |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Processor ARK ID | 149091 |
| Description |

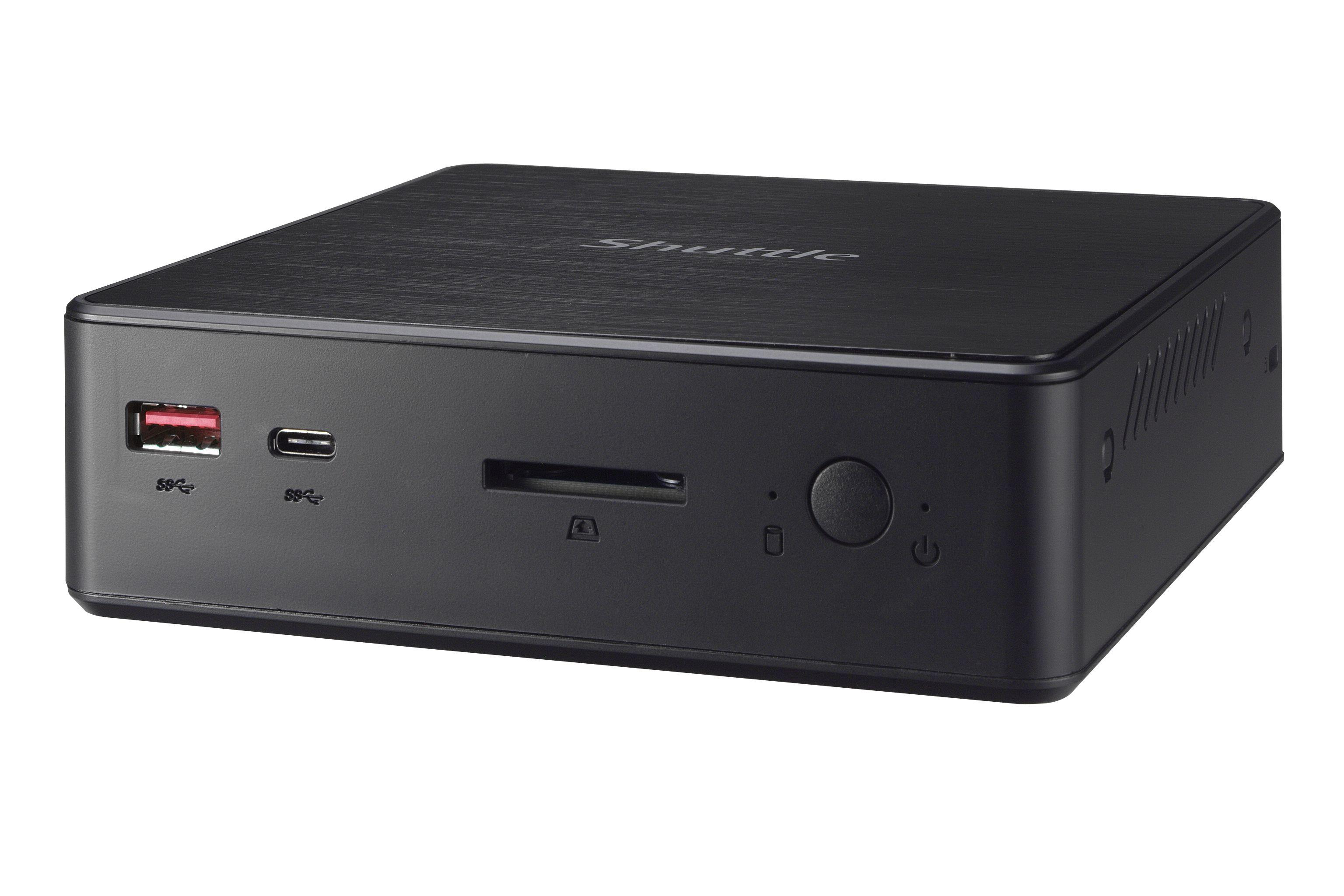

| Shuttle Nano PC NC10U7 , Intel i7-8565U, 1x HDMI, 1x DP, 1x 2.5" bay, 1x M.2, 1x LAN, 1x COM, Wifi, 24/7 permanent operation, incl. VESA & Stand. Product type: Mini PC barebone. Motherboard chipset: Intel SoC, Processor socket: BGA 1528, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 32 GB. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Cooling type: Active. Power supply: 65 W |
